Sale!

VDWall LED Display Controller LVP515 LED Video Processor

Original price was: $1,000.00.Current price is: $550.00.

100 in stock

Category: Uncategorized Tags: LED Display Controller, LED Video Processor, VDWall

LVP 515 LED Video Processor
Seamless Switching,
Fade-in / Fade-out switching
Blend switching in random input signals
HD Text, Flash, Graphics & Logo Overlay

1.10+ Bit Faroudja® DCDI Cinema Processing
2.New Faroudja® Real Color® processor
3.Faroudja® TureLife™ Video Enhancer
4.Seamless switch , fade in fade out, blend.
5.Frame synchronous technology, no miss alignment or delay
6.PIP/PBP display in any size and in any place

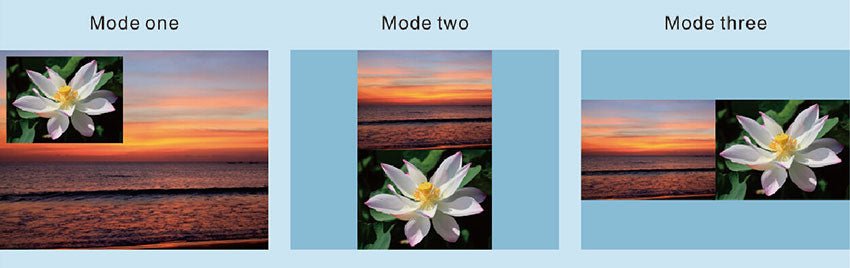

7.3 custom PIP/POP display modes, which can be switched by pressing one button
8.User define DVI EDID to realize point-to -point display.
9.User define output format to reach maximal horizontal width 3840 or vertical height 1920.
10.2 channels can be configured to connect external stereo audio, plus HDMI and SDI audio, there are 4-channel audio for synchronous switch
11.2 LED Transmission Cards Built-in ability (sending cards are optional)

Feature one : Fade-in / Fade-out
Feature two : PIP, POP, Text overlay

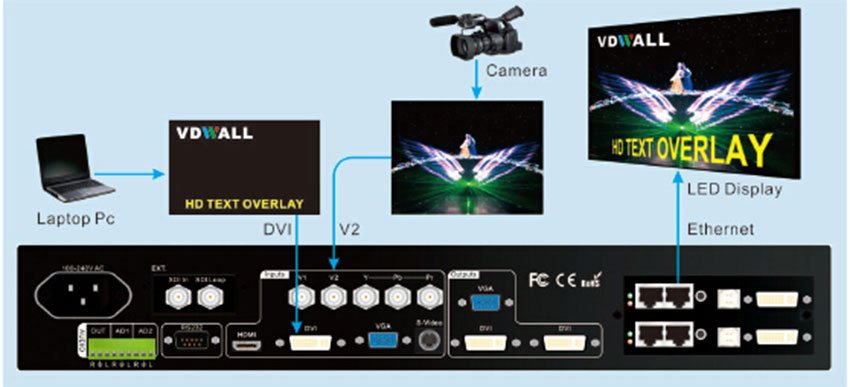

Feature three :HD text overay

Outputs
Nums/type	1×VGA（RGBHV） 2×DVI
DVI format	1024×768_60/75Hz 1080×1920_60 Hz 1200×1600_60 Hz 1280×1024_60/75Hz 1366×768_60Hz 1440×900_60Hz 1536×1536_60 Hz 1600×1200_60Hz 1920×1080_50/60Hz 1920×1200_60 Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz Custom output format( horizontal pixel maximal 3840 or vertical 1920）
VGA scope/impedance	R、G、B = 0.7 V（p_p）/ 75Ω
Output ports	VGA OUT：15pin D_Sub(female) DVI OUT1：24+5 DVI_D DVI OUT2：24+1 DVI_D
others
control	Panel button or pc software
Input voltage	100-240V~ 50/60Hz
power	≤20W
temperature	5-40 ℃
humidity	15-85%
Size(packing)	145mm（height）×370mm（width）×535mm（length）
Weight(kg)	Gross weight：5.0Kg, Net weight：3.2Kg
