Amoonsky 4K UHD 1X4 HDMI Video Distributor HDMI Interface Devices

The 4K UHD 1×4 is a high definition video distributor that supports 1 x HDMI 2.0 input and 4 x HDMI 2.0 outputs. The resolution of both its input and outputs can be up to 4096 x 2160 @60Hz. It’s easy to use, and it is applicable to any devices with HDMI connectors. It supports various set top boxes, DVD players, player boxes, and more.

Novastar 4K UHD 1X4 HDMI Video Distributor

• Supports resolutions up to 4096 x 2160 @60Hz
• Input and output of ultra HD 4K signals are in sync
• Supports 3D video source input
• Supports input of RGB 4:4:4/YCbCr, 4:4:4 10-bit video sources
• OLED menu can display real time input and output status
• Supports standard, custom, and EDID learning methods
• Supports encrypted video transmission
• Plug and play with no drivers required

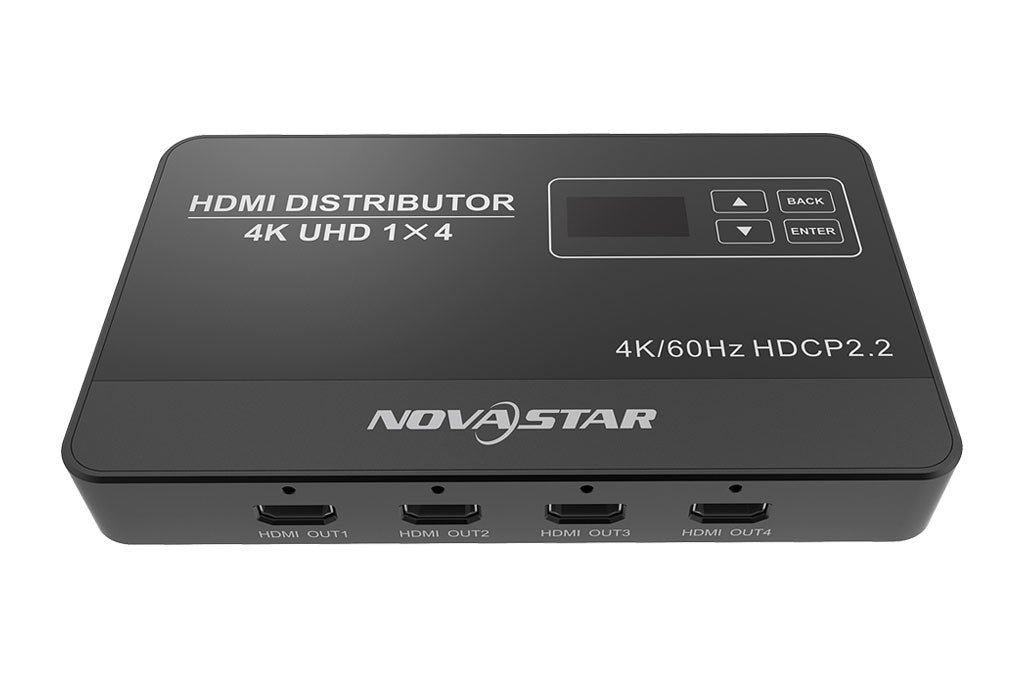

NovaStar 4K UHD 1X4 HDMI Video Distributor Appearance

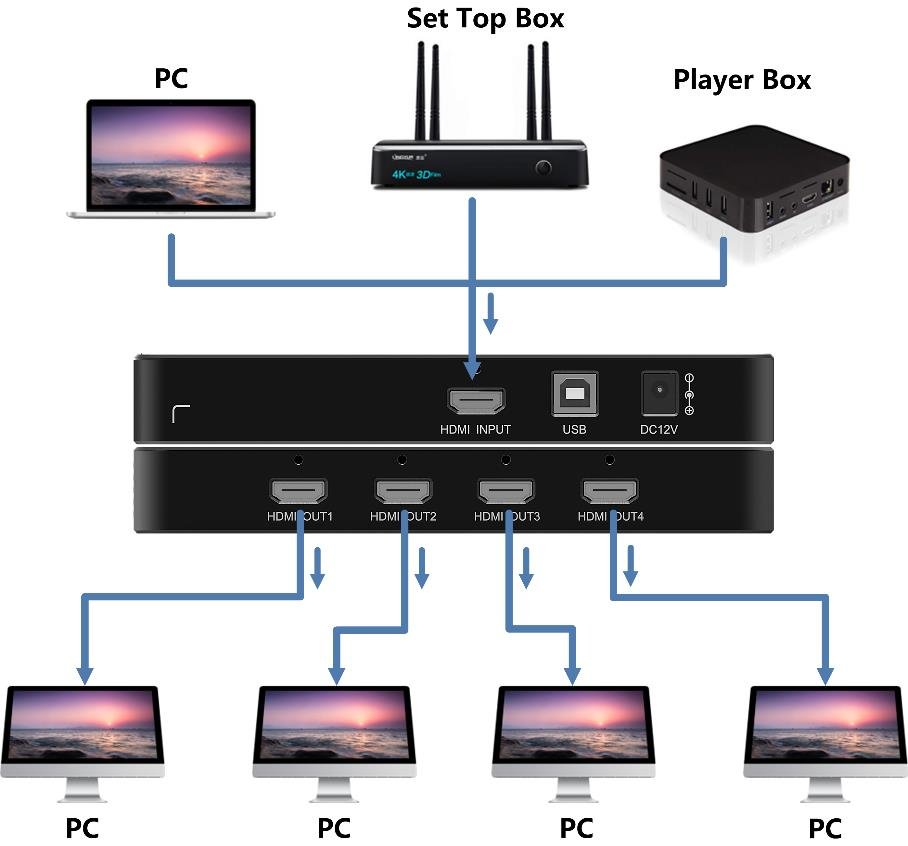

NovaStar 4K UHD 1X4 HDMI Video Distributor Working Diagram

NovaStar 4K UHD 1X4 HDMI Video Distributor

Power & Current
Voltage: 12V
Power consumption: 8.4W
Thermal
Working temperature: -10~60ºC
10-90% RH

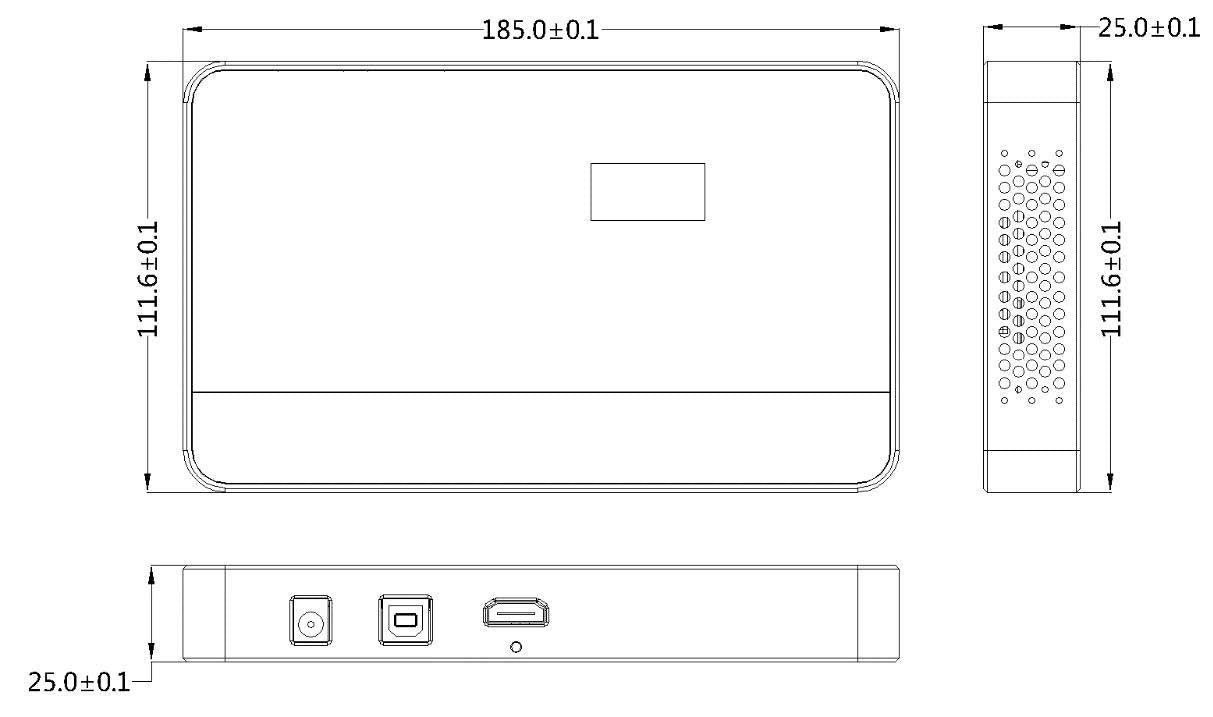

Weight & Dimensions
7.3 x 4.4 x 1 inch (185 x 111.6 x 25mm)
1 lbs (461.8 g)

Further Information:
Novastar 4K UHD 1X4
NovaStar 4K UHD 1X4 HDMI Video Distributor Specification
