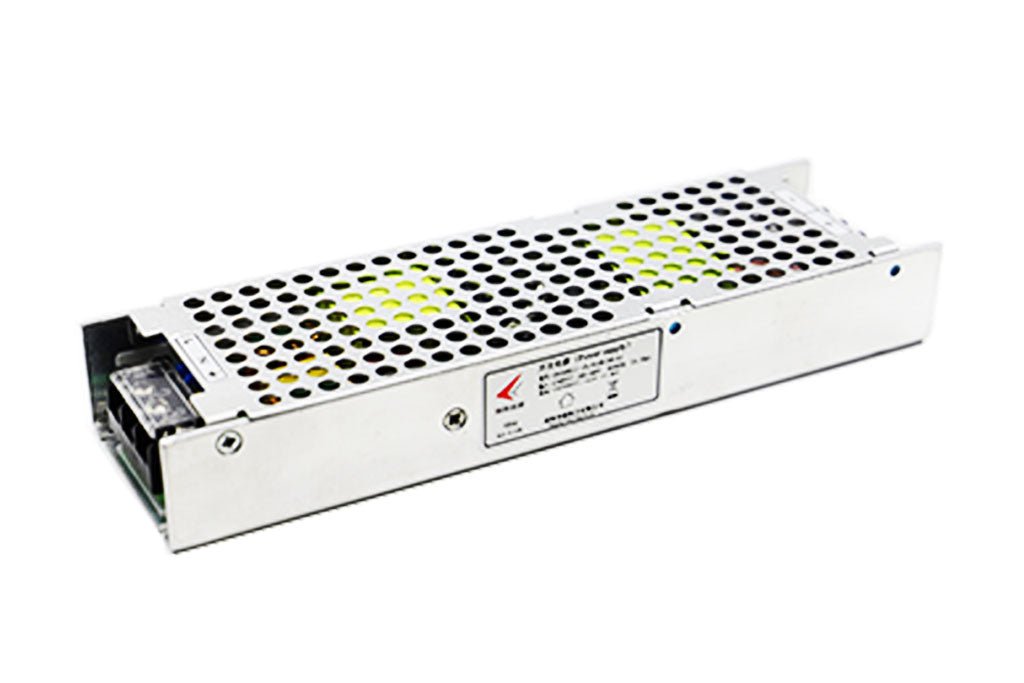

CL LED Displays Power Supply 400W PAS7-400-5 Series, LED Power Supply

CL LED Displays Power Supply 300W PAS6-H400-5 series Features:

Input Parameter:

• Input Voltage Range: 90～264Vac
• Input Frequency Range: 47～63HZ(Typ 50/60)
• Max AC Current: <2.5A, 100Vac, full load
• Inrush current: ≤90A, 240V, Full load, 25℃
• PF >0.95(AC100~240Vac, full load)
• Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ)
• Standby watt<5W

Output Parameter:

• Dc Voltage Range: 4.6 V(5V/4.2V is available too)
• Output voltage adjustment range: DC 4.5～4.7V
• Output Current: : 90-175Vac, 20A( NO Auxiliary heat sink), 176-264Vac, 30A( NO Auxiliary heat sink), 90V-175Vac, 30A( installed an Auxiliary heat sink at the bottom of power supply, 300*200*3mm AL panel), 176-264Vac, 40A(installed an Auxiliary heat sink at the bottom of power supply, 300*200*3mm AL panel)
• Max power:184W
• Ripple & Noise: ≤150mVp-P（@220Vac, rated load,25℃）
• Efficiency (Typ): ≥88%（Typ 90.5%) input Voltage: 230Vac, Rated load,25℃; ≥86%（Typ 88.5%,input voltage: 115Vac, Rated load,25℃
• Output Risetime<50mS
• Power on delay time<3S
• Voltage Tolerance:±2%
• Line Regulation: ±1%
• Load Regulation:±2%

Protection：

• Over voltage protection: 5-5.5V
• Over current protection: 50-70A
• Over temperature protection: 65-85℃,  full load 25℃.
• Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed

Safety Standards:

• UL60950, IEC/EN60950, GB4943.1-2011

EMC：

• FCC Part 15 B,EN55022(CISSPR22)ClassB,EN61000-3-2,EN61000-3-2

EMI:

• EN61000-4-2,3,4,5,6,8,11,Surge Vcom: ±2kV   VDiff: ±4kV
• Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S
• Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc
• Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz)

Others:

• Working Temperature:‘-20℃ ～ +70℃
• Working Humidity:5%～90%RH
• Storage temperature: -40℃～+80℃
• Free air convection
• Dimension (L*W*H): 235*60*30mm
• Carton Dimension: 40*31*18.5 cm
• Packing: 0.3KG/16.5KG/0.04CBM/CTN
• MTBF:100K hours (MIL-HDBK-217F (25℃ )
• 3 years warranty
