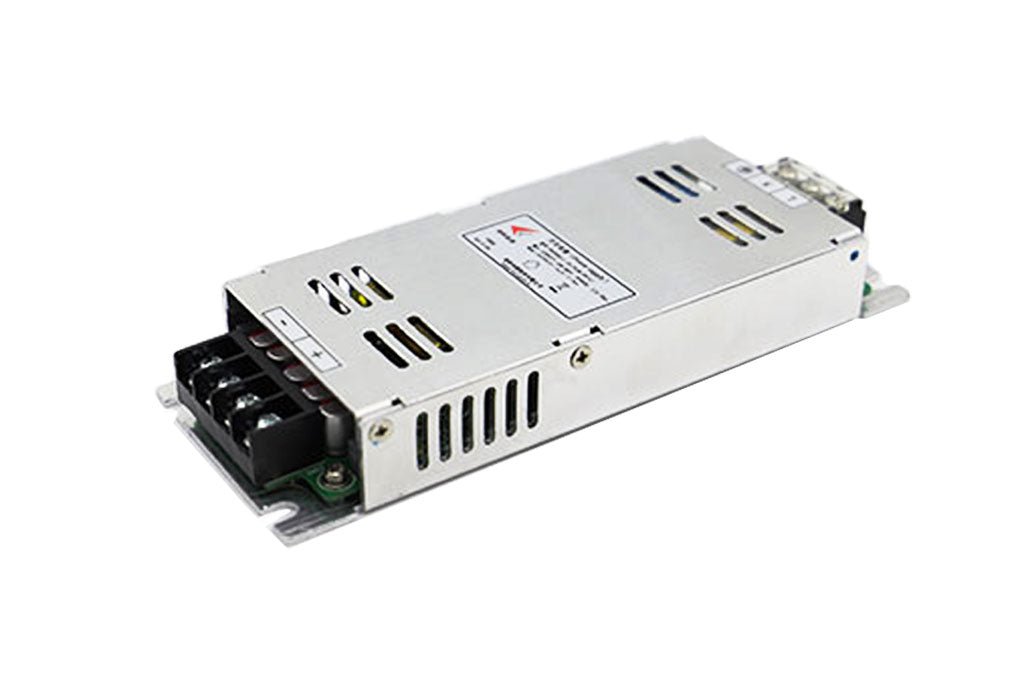

CL LED Displays Power Supply AS9-200-5 200W LED Power Supply

CL LED Displays Power Supply CL-AS9-200-5 Features:

Input Parameter:

• Input Voltage Range: 180～264Vac
• Input Frequency Range:  47-63HZ
• AC Current: ≤3.0A(200Vac, full load)
• Input inrush current<80A(220Vac input, 25℃  cold start)
• Empty power consumption<5W (200-264Vac input)

Output Parameter:

• Dc Voltage Range:4.5 V
• Rated Current: 35A( NO Auxiliary heat sink), 40A(installed an Auxiliary heat sink between the power supply bottom case and LED screen case)
• Max power: 180W
• Rise time<50mS
• Ripple & Noise: ≤300mVp-P
• Efficiency (Typ):≥88.5% Vin=220Vac,25℃, rated load
• Voltage Tolerance:±2%
• Linear adjustment: ±1%
• Load Adjustment: ±2%
• Power on delay time<5S

Protection：

• OCP(55-75A)
• OTP
• SCP(Hiccup mode, auto recovery after fault condition is removed)

Safety&EMC：

• EN60950-1,EN55022
• Hi-pot: I/P-O/P: 2.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
• Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
• Leakage current<3.5mA(AC240V I/P-FG);  <0.25mA(I/P-O/P)

Others:

• Working Temperature:-20℃ ～ +70℃
• Cooling: ventilate by air convection
• Working Humidity:5%～90%RH
• Storage temperature: -20℃～+85℃
• Dimension (L*W*H):220*61*30mm
• Carton Dimension: 52*37.5*24CM
• Packing:40PCS/21.5KG/0.04CBM, in white paper box
• MTBF:50K hours (MIL-HDBK-217F (25℃ )
