Amoonsky COEX Control System CX80/40 Pro 8K LED Controller CA50E 5G Receiving Card Image Enhancement System

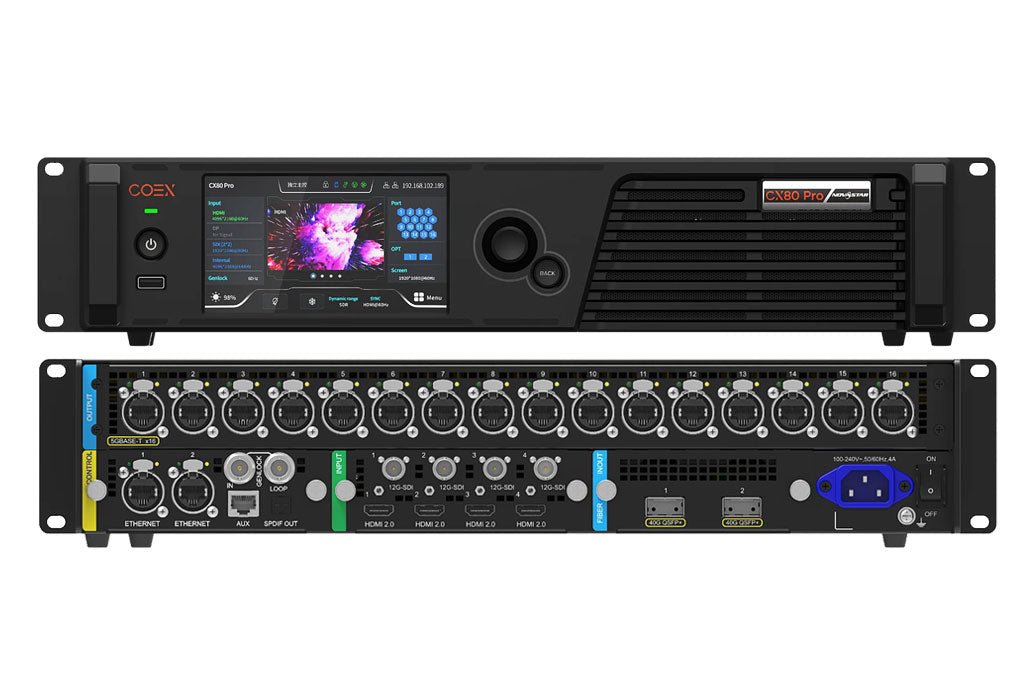

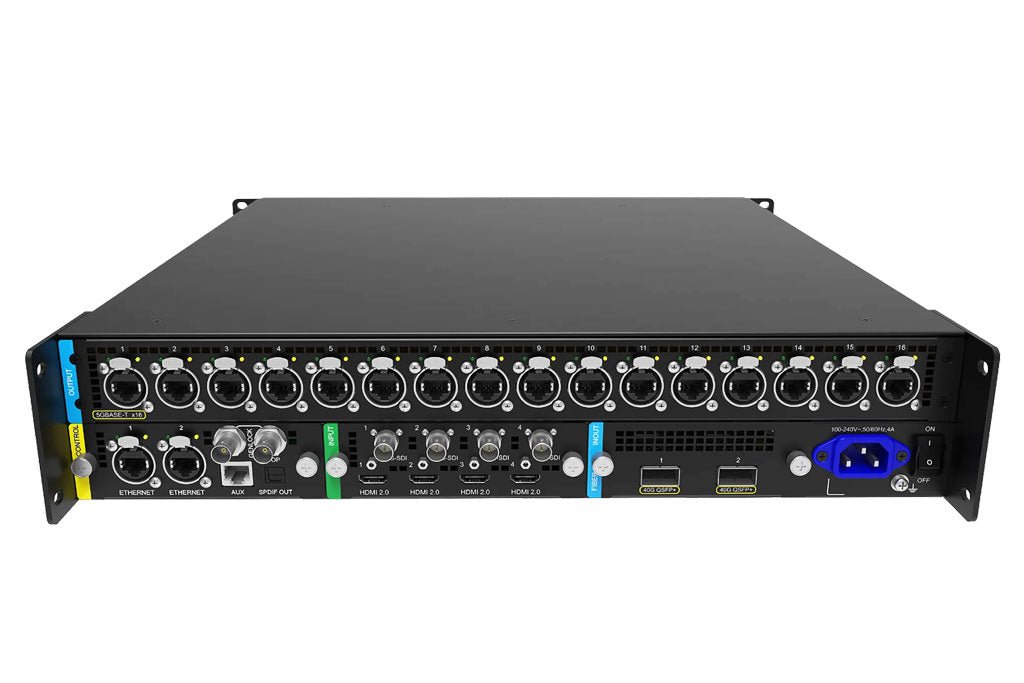

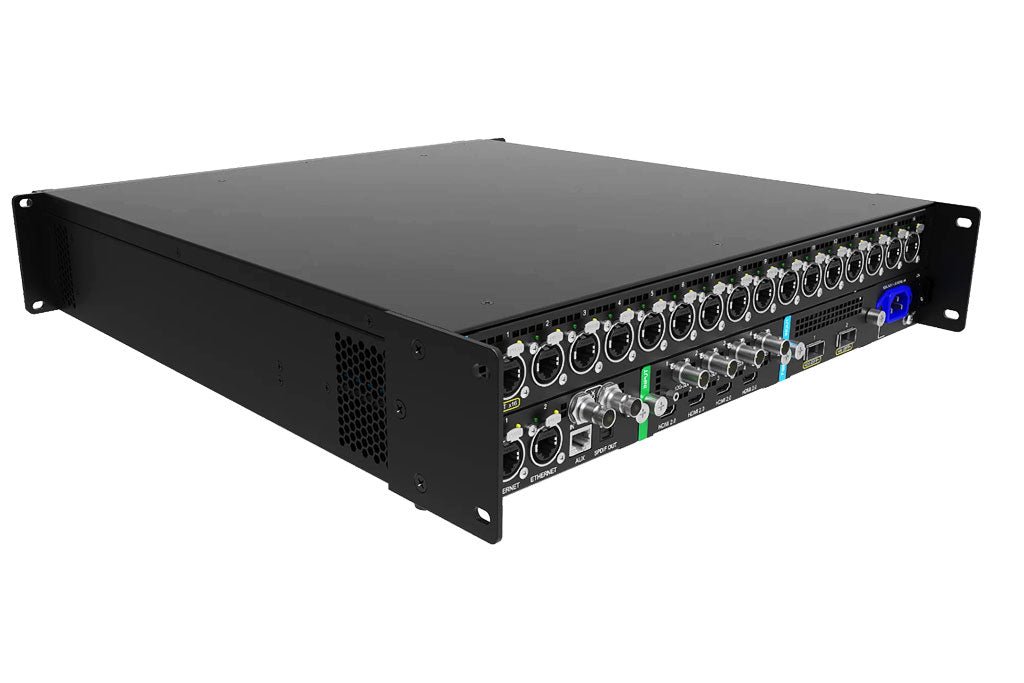

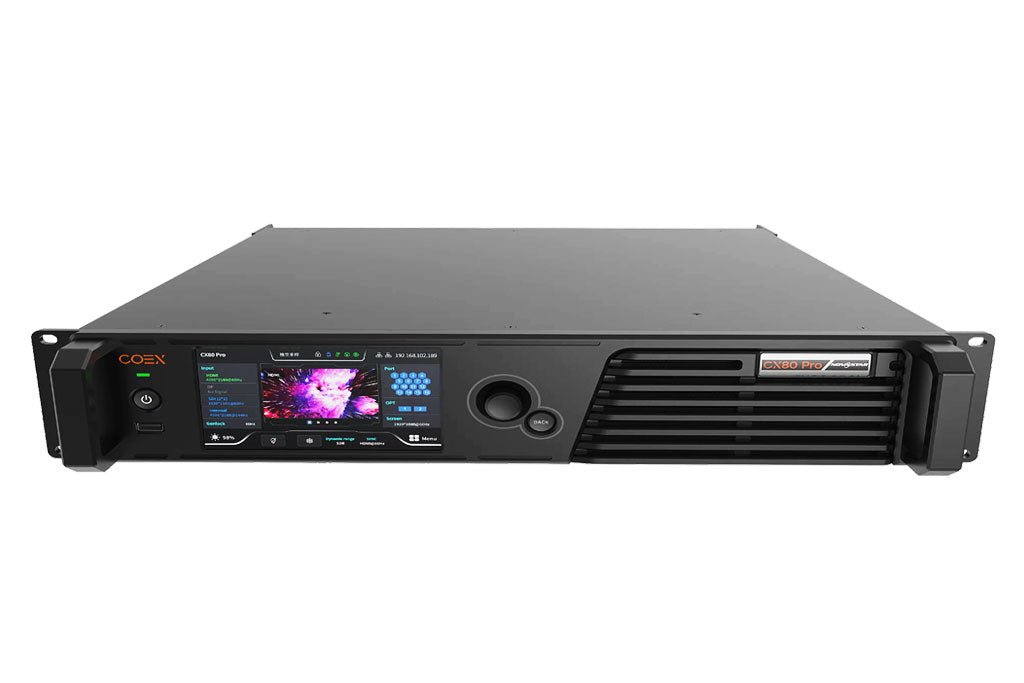

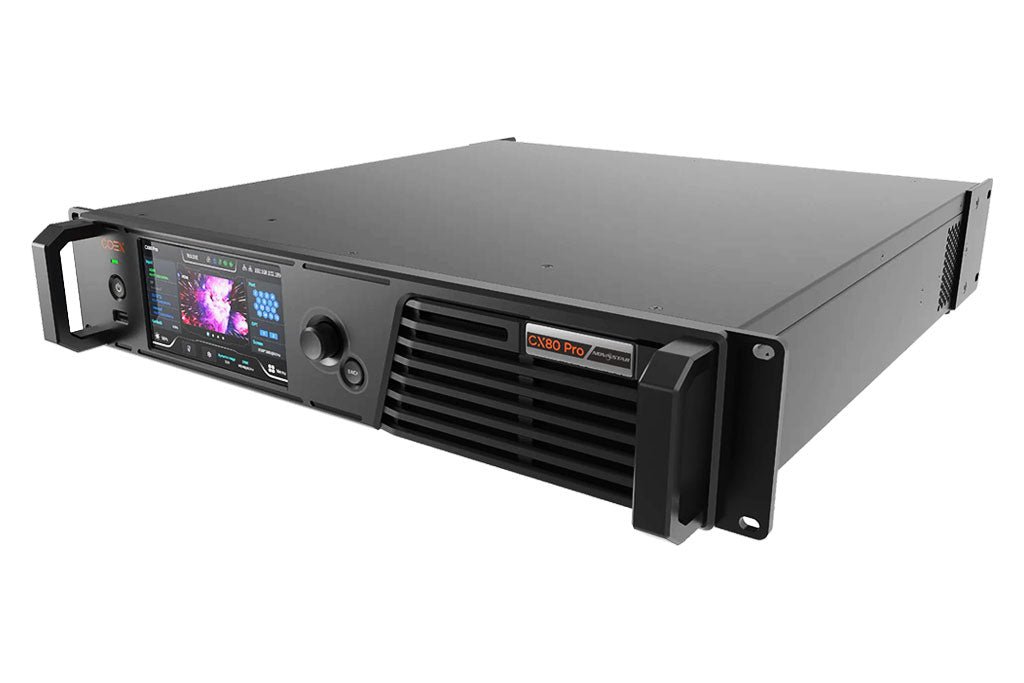

COEX Control System CX80 Pro

The CX80 Pro is NovaStar’s new 8k LED display controller in their new COEX series. This controller offers rich video input connections (HDMI 2.0, HDMI 2.0, DP 1.4, and 12G-SDI) and supports 5Gbps output via ethernet ports. It also works with NovaStar’s new VMP software.

The CX80 PRO includes features such as:
Genlock, Image Scaling, Color Replacement, 14CH Color Correction, 3D LUT, Dynamic Booster, Full Greyscale Calibration, HDR, Low Latency (1 frame in All-In-One Controller working mode)
NOTE: The CX80 PRO controller is only compatible with 5G receiving cards

The CX80 input card is sold separately. There are 2 to choose from (click on the card name to go to that product and add to your cart):
– Input card 1: CX_HDMI 2.1+DP 1.4+12G-SDI×4 (1x HDMI 2.1, 1x DP 1.4, 4x 12G-SDI)
– Input card 2: CX_HDMI 2.0×4+12G-SDI×4 (4x HDMI 2.0, 4x 12G-SDI)

BUILT-IN SCALING (AUTO FIT CONTENT TO WALL): Yes
INPUTS: 1x HDMI 2.1, 1x DP 1.4, 4x 12G-SDI or 4x HDMI 2.0, 4x 12G-SDI
OUTPUTS: LED OUTPUTS – 16
GENLOCK: YES
IMAGE MOSAIC (MULT. PROCESSORS ON 1 WALL): YES
BUILT IN FIBER SLOTS: YES – 2 40G OPT Ports

CONTROL:ETHERNET (2x ports)

LOADING CAPACITY:
MAX PIXELS PER LED OUTPUT at 60Hz: 2,592,000 pixels (8-bit), 2,073,000 pixels (10-bit), or 1,728,000 pixels (12-bit)
TOTAL PIXEL LOAD CAPACITY: 35,389,440 pixels
MAXIMUM INPUT RESOLUTION: 7680 x 4320 using HDMI 2.1 Input
MAX OUTPUT WIDTH/HEIGHT: 32,768 pixels x 32,768 pixels (W x H or H x W)

COEX Control System CX40 Pro

The CX40 Pro is a 4K LED display controller in the brand-new COEX series. This controller offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI) and supports 5Gbps output via Ethernet port and 40Gbps remote transmission via optical port.
It also works with NovaStar’s new VMP software.

The CX40 PRO includes features such as:
Genlock, Image Scaling, Color Replacement, 14CH Color Correction, 3D LUT, Dynamic Booster, Full Greyscale Calibration, HDR, Low Latency (1 frame in All-In-One Controller working mode), Frame Rate Adaptive

NOTE: The CX40 PRO controller is only compatible with 5G receiving cards

** Function Limitations:
The Frame Rate Adaptive function only works with the CA50E, CA50C, and XA50 receiving cards. Currently supported driver ICs include MBI5264, ICND2055, ICND2065, and ICND2069. In addition, the .ncp file generated by the Cabinet Tool from NovaStar must be used.
The Dynamic Booster function only works with the CA50E, CA50C, and XA50 receiving cards. Before operation, brightness correction by using the CA410-VP427, CA410-P427, or EYE2-400 color analyzer is recommended.
The Full Grayscale Calibration function only works with the CA50E and CA50C receiving cards.
Using the HDR function reduces the CX40 load capacity by less than half when the CX40 works with the CA50E, CA50C, and XA50 receiving cards.

BUILT-IN SCALING (AUTO FIT CONTENT TO WALL): Yes
INPUTS: 2x HDMI 2.0, 1x DP 1.2, 2x 12G-SDI
OUTPUTS: LED OUTPUTS – 6
GENLOCK: YES
BUILT IN FIBER SLOTS: YES – 1x 40G OPT Ports

CONTROL:ETHERNET (2x ports)

LOADING CAPACITY:
MAX PIXELS PER LED OUTPUT at 60Hz: 2,592,000 pixels (8-bit), 2,073,000 pixels (10-bit), or 1,728,000 pixels (12-bit)
TOTAL PIXEL LOAD CAPACITY: 9 Million pixels
MAXIMUM INPUT RESOLUTION: 4096 x 2160
