Colorlight X-Series LED Display Controller X20 X16 X8 X4e X4 X2 LED Video Processor

Name: Colorlight X-Series LED Display Controller X20 X16 X8 X4e X4 X2 LED Video Processor
SKU: 8765456974051
Availability: InStock

Price range: $125.00 through $3,500.00

SKU: 8765456974051 Category: Uncategorized Tags: Colorlight, LED Display Controller, LED Video Processor

X40m LED Controller
Colorlight X40m is an ultra-4K LED video controller with powerful video signal input and processing capabilities. The device supports 4K and 2K video signal input, with a load capacity of up to 26.21 million pixels, and has two output modes: network port output or optical port output, which can greatly meet the needs of different customers. At the same time, X40m has a series of rich and practical functions, which can provide flexible screen control and high-quality image display.

X26m LED Controller
The Colorlight X26m is a powerful controller with 4K video input and processing capabilities.X26m has a loading capacity of 17 million pixels, 26 Gigabit Ethernet ports or 3×10G optical fiber ports.It provides flexible screen control and high-quality image display through its practical functions.

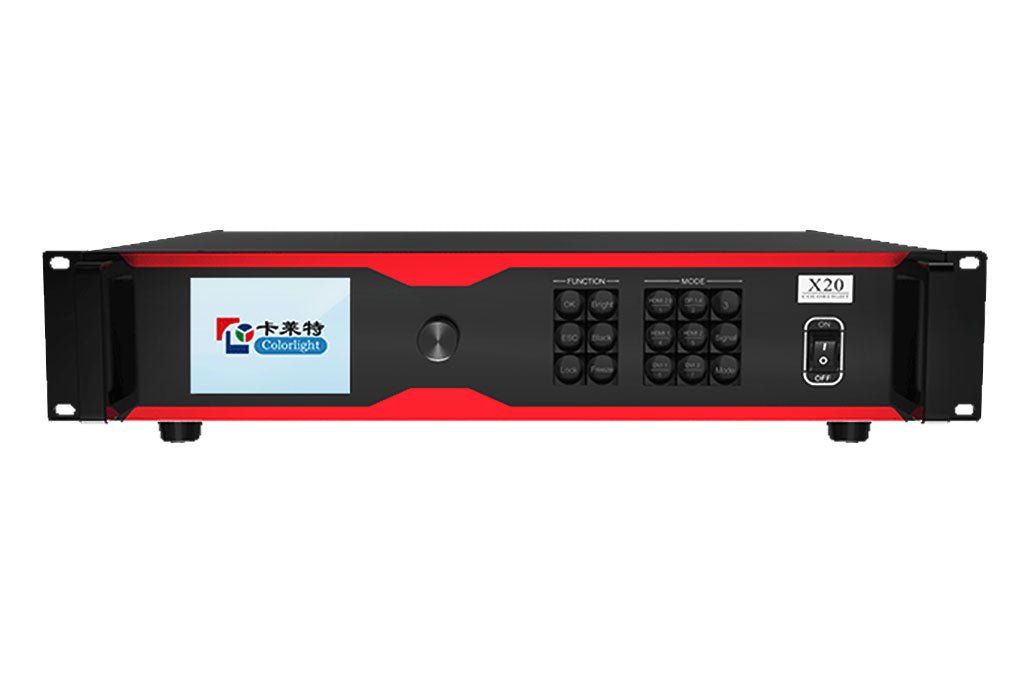

X20 LED Controller

X20 is a controller possessing powerful video signal input and processing capacity. It supports 4K inputs with DP1.4 and HDMI2.0 connectors, and 2K inputs with HDMI1.4 and DVI connectors, and the multiple signals can be seamlessly switched. A single unit features a loading capacity of 11.8 million pixels, with 16384 pixels in maximum width or 8192 pixels in maximum height. Equipped with 20 1000BASE-T Ethernet ports and 2 10GBASE-T optical ports, X20 is able to meet the need of different clients. Additionally, X20 boasts abundant practical functions that enable flexible screen control and high-quality image display.

Input connectors: 1×DP 1.4, 1×HDMI2.0, 2×HDMI1.4, 2×DVI
Loading capacity: 11.8 million pixels, maximum width: 16384 pixels, or maximum height: 8192 pixels
Input resolution: up to 4096×2160@60Hz, supporting customized setting
Output connectors: 20× Gigabit Ethernet port, 2×10G optical fiber port
Support video source switching, cropping, splicing and scaling
Support up to 6 windows, of which the location and size can be freely adjusted
Separate audio input and output
HDCP 2.3 compliant
Brightness and color temperature adjustment
Better gray at low brightness
Compatible with all series of receiver cards, multifunction cards and fiber converters of Colorlight

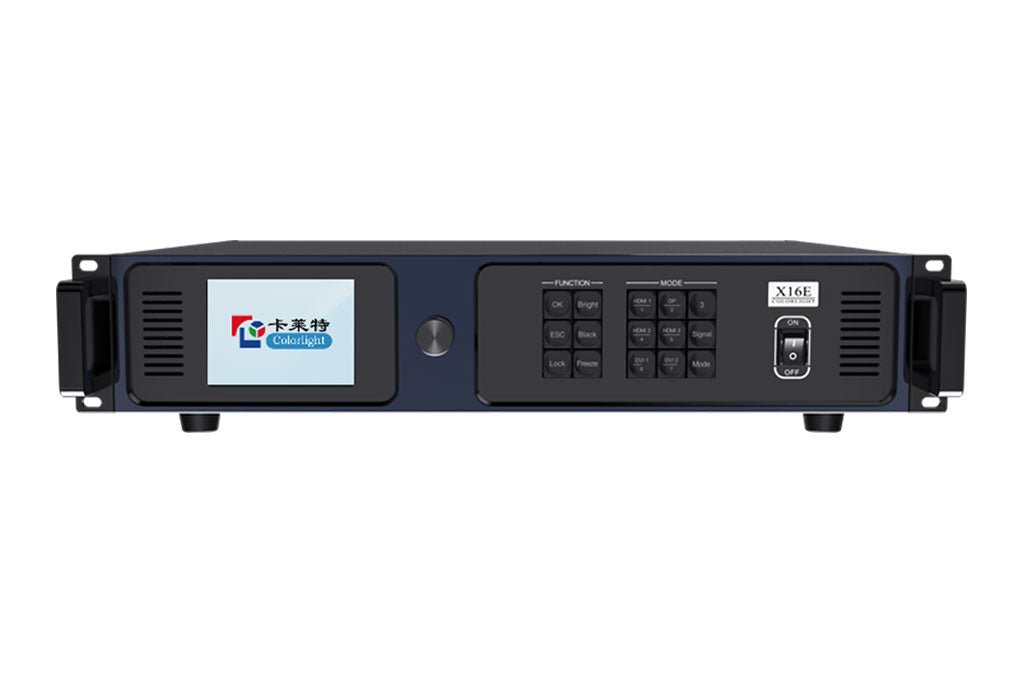

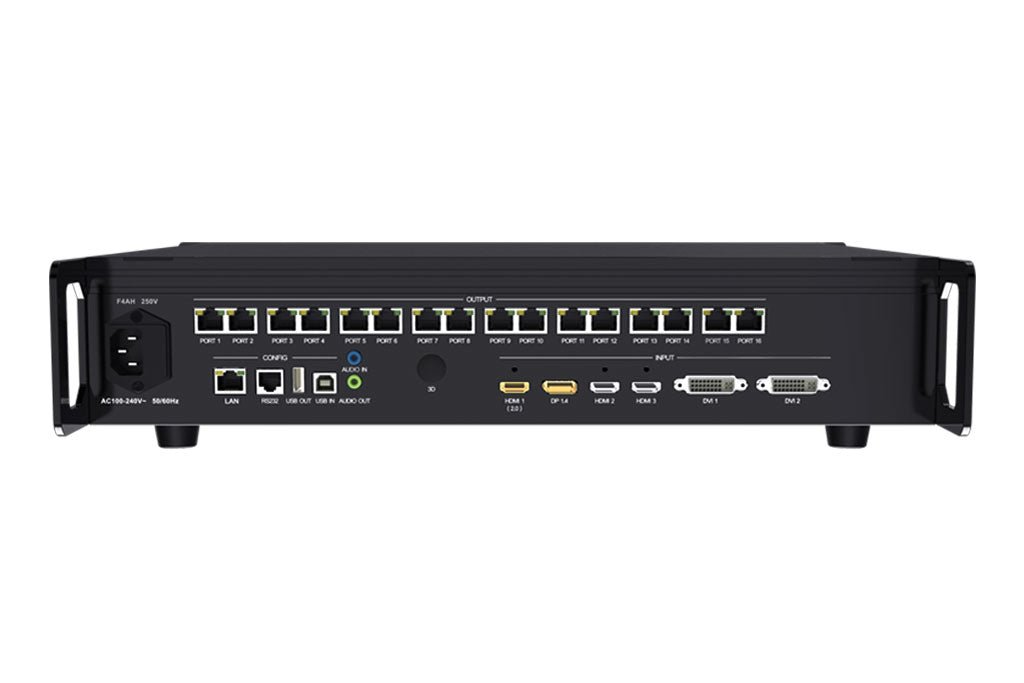

X16E LED Controller

·Input connectors: 1×DP 1.4, 1×HDMI2.0, 2×HDMI1.4, 2×DVI
·Loading capacity: 10.48 million pixels, maximum width: 16384 pixels, or maximum height: 8192 pixels
·Input resolution: up to 4096×2160@60Hz, supporting customized setting
·Output connectors: 16 × Gigabit Ethernet port
·Support video source switching, cropping, splicing and scaling
·Support up to 6 windows, of which the location and size can be freely adjusted
·Support precise color management and display gamut adjustment
·Support video sync
·Separate audio input and output
·Support analyzing and outputting the audio signals of HDMI and DP inputs
·Support LAN control
·Support control via hand-held terminal(app)
·Support RS232 protocol control
·Support 3D(optional)
·HDCP compliant
·Brightness and color temperature adjustment
·Better gray at low brightness

X12 Controller

The X12 controller is a professional control system and video processing device designed for LED display engineering applications. It has DVI and HDMI connectors, and supports seamless switching between multiple signals, broadcast quality scaling and multi-window display. The X12 boasts 12 1000BASE-T ports. A single unit features a loading capacity of 7.2 million pixels, with 8192 pixels in maximum width or 4096 pixels in maximum height. Meanwhile, the X12 is equipped with abundant practical functions that enable flexible screen control and high-quality image display, which gives it an edge in the LED display engineering application field.

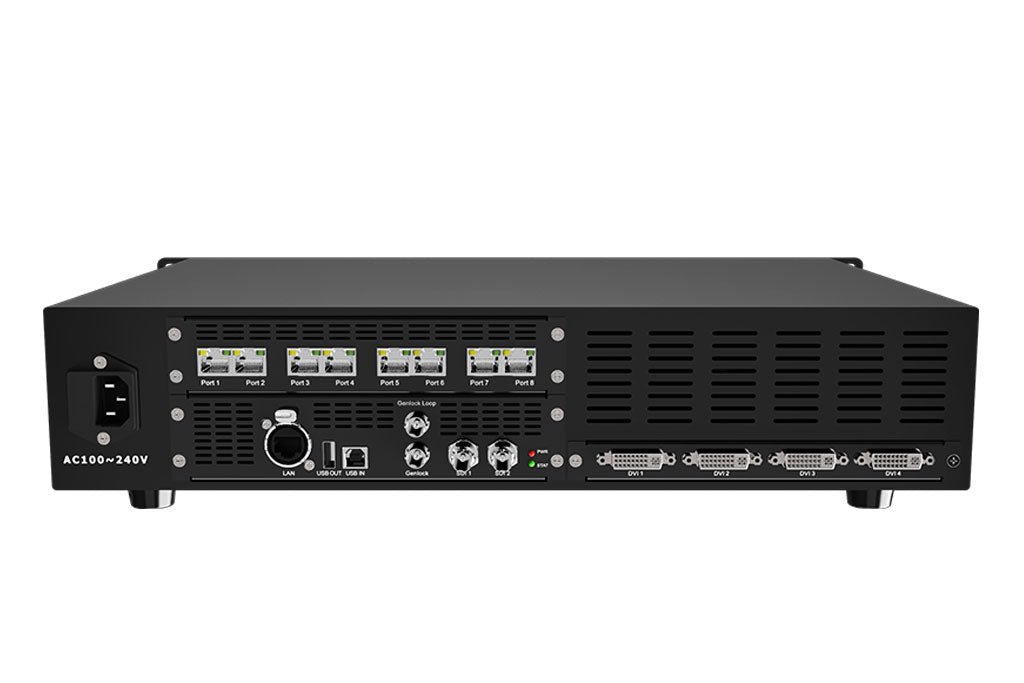

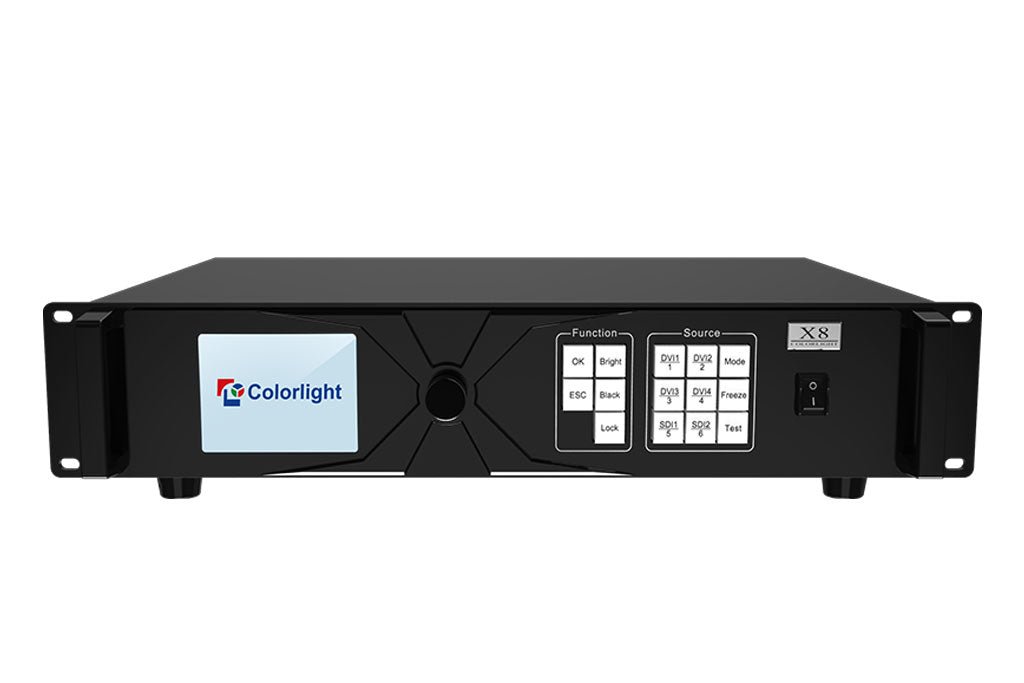

X8 LED Controller

X8 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs, in which the maximum input resolution is 1920×1200 pixels. It supports digital ports (DVI and SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and five-layers displays.

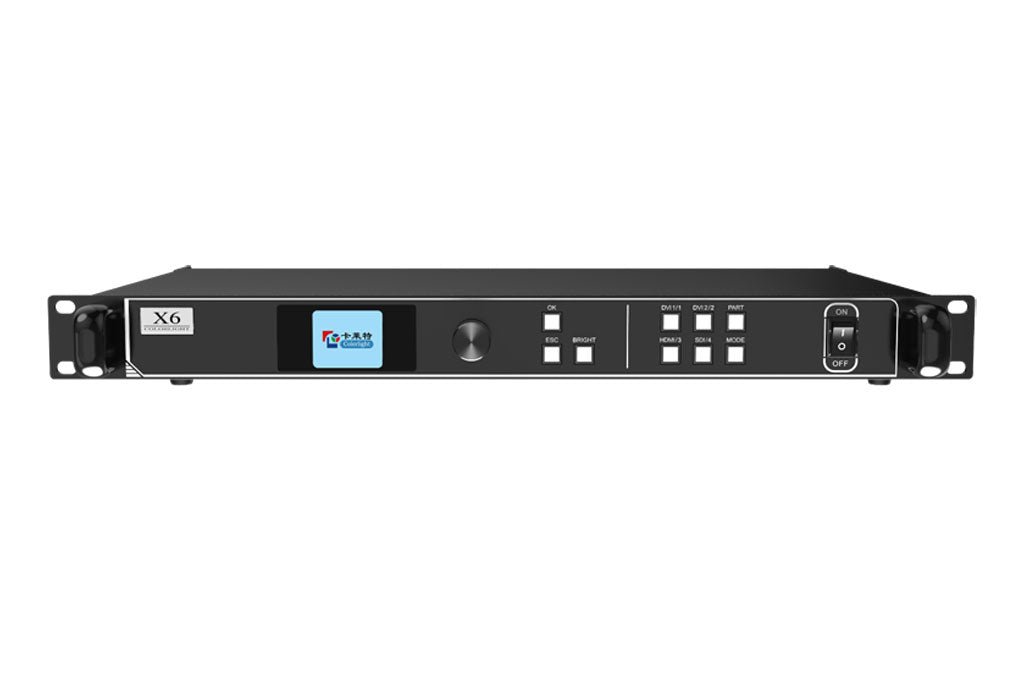

X6 Controller

Colorlight X6 Professional LED Large Screen Controller is a professional control system and video processing equipment specially designed for LED engineering applications. It equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI), and seamless switching between signals can be achieved. It supports broadcast quality scaling and multi-pictures display.

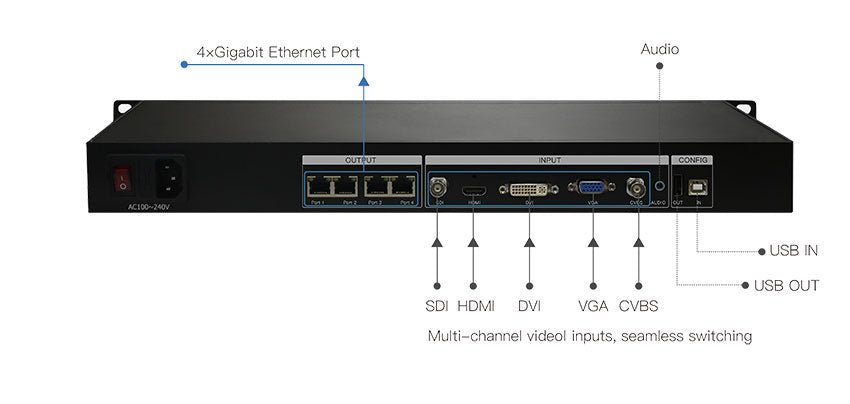

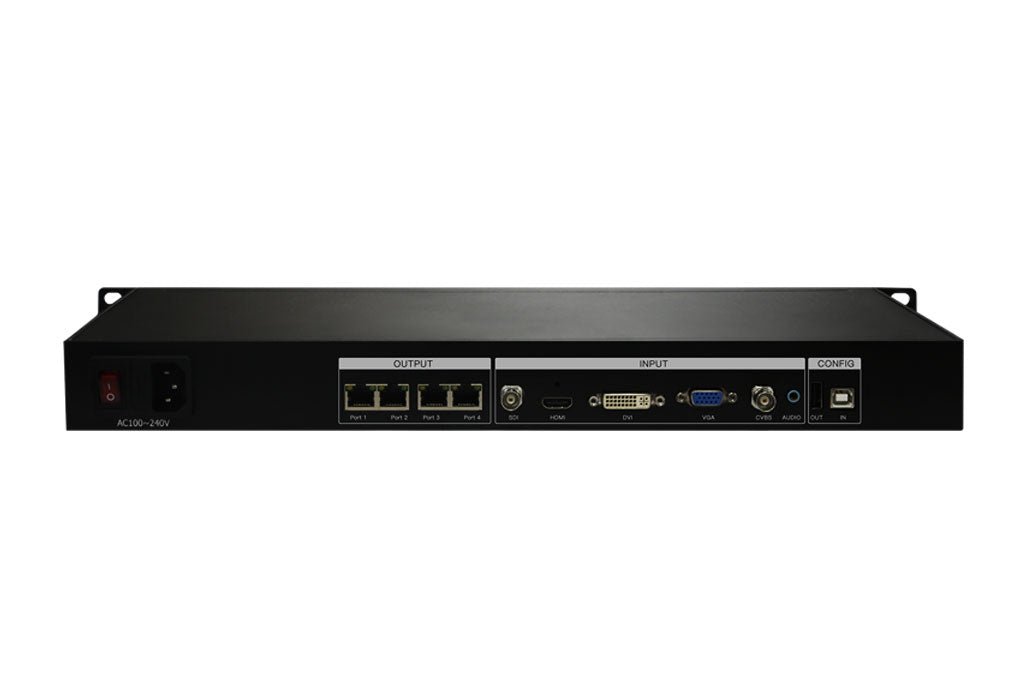

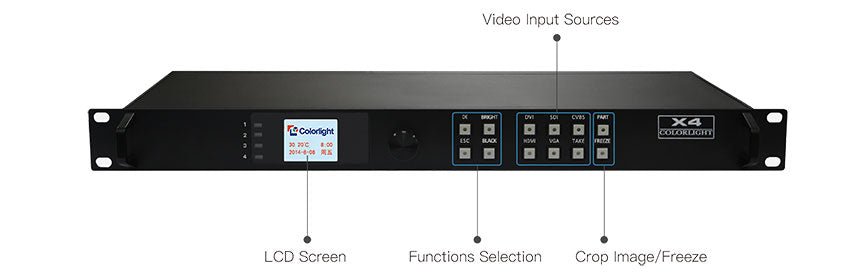

X4 Controller

X4 is a professional LED display controller, it possesses powerful video signal receiving capacity, and supports multiple signal inputs, in which max input resolution is 1920*1200 pixels. Meanwhile, 4 Gigabit Ethernet outputs support arbitrary splicing.
X4 LED Video Processor
