CZCL LED Displays Power Supply A-200W-5 5V40A LED Switching Power Supply

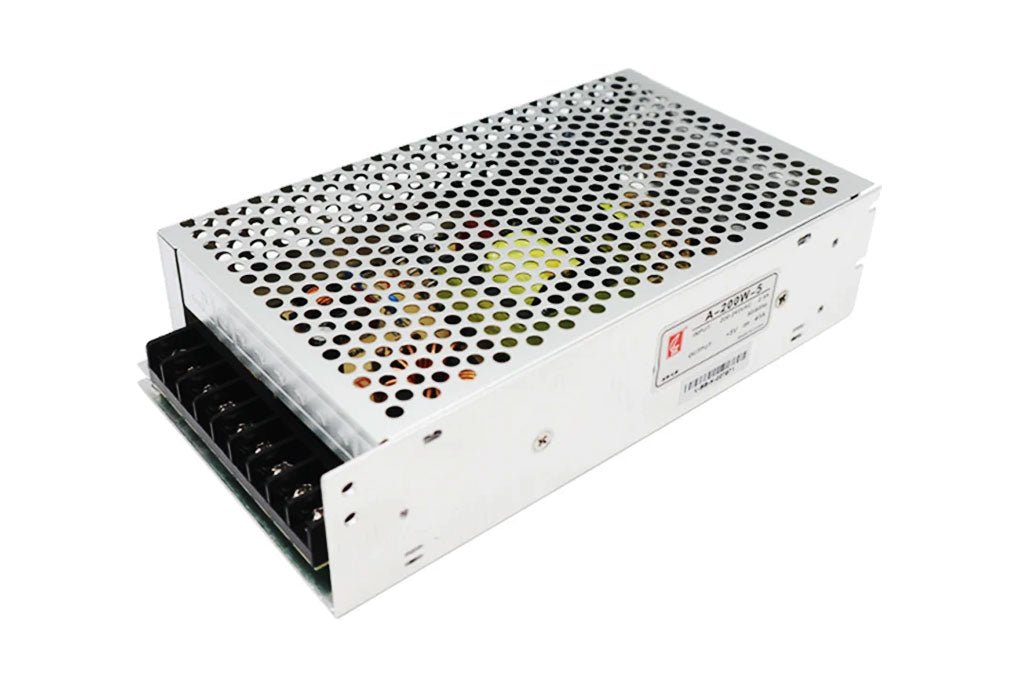

CZCL A-200W-5  5V40A LED Displays Switching Power Supply

CZCL A-200W-5 is a professional outdoor and indoor LED display power supply for LED Display screens. With good heat dissipation. High-temperature resistance. And a lifespan of up to 10 years. This ultra-thin power supply design is widely used in indoor small-pitch LED displays.
Low cost，high reliability

Built-in EMI filter
Low output ripple&noise

Protections：Over load/Short circuit

1 year warranty

CASE:808; Size:199×110×50mm

CZCL A-200W-5  5V40A LED Displays Switching Power Supply Parameters

AC input voltage range—————176-264VAC

Input frequency———————-47-63Hz

AC inrush current———————Cold start，30A/230VAC

DC adjustment range—————–±10% rated output voltage

Line regulation（full load）————≤0.5%

Output over load protection———-110%-150% shut off, AC recycle to re-start

Rise，hold up time——————50mS，20mS at full load（typical）

Withstand voltage——————I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min

Working temperature—————10~+40℃@ 100%，+60℃@ 60% load

Storage temperature————-   -20℃~+85℃，20%~95%RH(non condensing)

Safety standards——————Design refer to GB4943，UL60950-1,EN60950-1

EMC standards——————–Design refer to GB9254，EN55022 class A

Cooling method——————-Free air cooling convection
