Amoonsky EMT200 3D Emitter

Novastar EMT200 3D Emitter

The EMT200 is a 3D signal emitter from NovaStar designed for LED displays. The emitter enables 3D display effect by working with 3D glasses and the controllers that support 3D function.

• Obtains the 3D synchronization signal through Ethernet cables and can be connected to receiving cards.
• Supports a VESA 3D signal output connector connecting to a third-party external emitter.

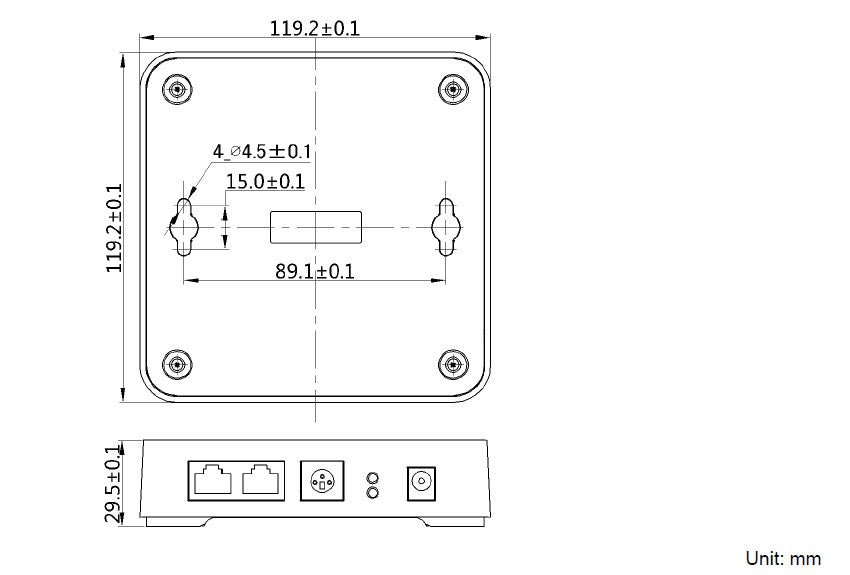

Novastar EMT200 3D Emitter Appearance

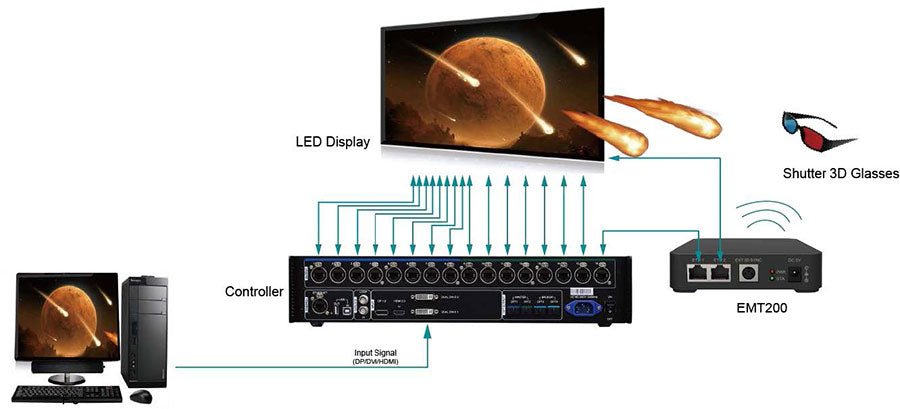

Novastar EMT200 3D Emitter Working Diagram

Specifications
Input voltage:DC 5V
Rated current:0.2A
Rated power consumption:1W
Normal usage range: 50m
Dimensions:119.2 mm × 119.2 mm × 29.5 mm
Net weight:170.3 g
Work temperature:0~40℃

Packing information
Packing box: 380 mm × 200 mm × 100 mm
Outer container: 390 mm × 210 mm × 110 mm
1 × RJ45 Ethernet cable (1.5 m)
1 × DC power adapter (5V2A)

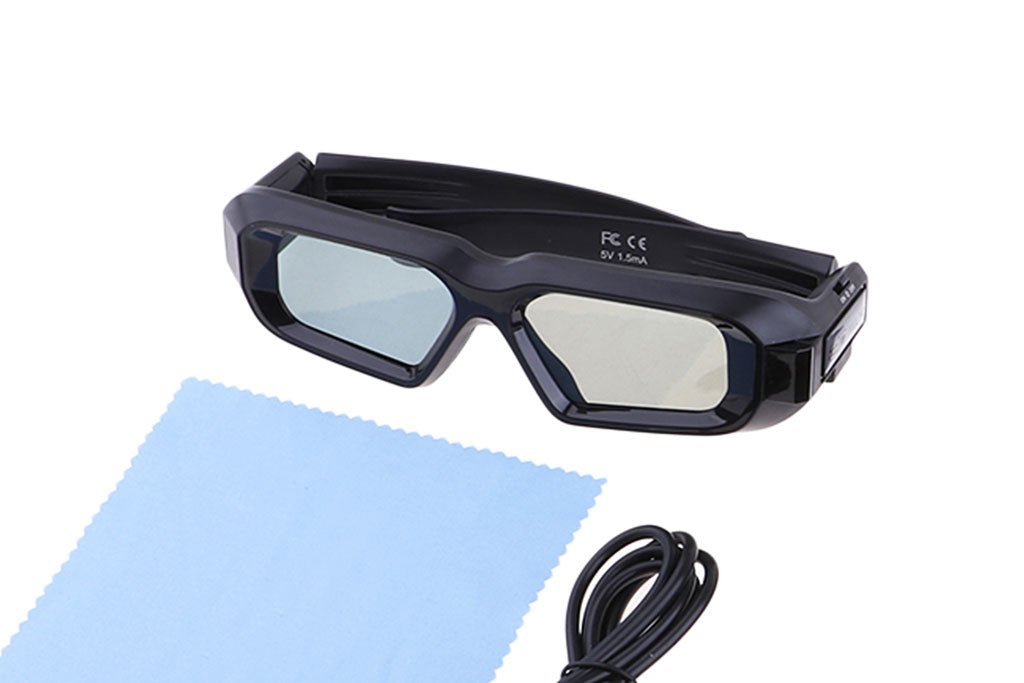

5 × pairs of 3D glasses(Maximum load:200pcs)
2 × sleeve anchors

Further Information:
EMT200
Novastar EMT200 3D Emitter Specification
