ET1S ET Series 4K LED Display Screen Video Multimedia Server

ET Series Multimedia Server

The ET1S is a new media server designed by NovaStar for small-scale LED or LCD fixed installation applications.It not only boasts high-quality, ultra-high-resolution pixel-to-pixel display capabilities but also offers diversified mosaic creativity and outstanding media arrangements for professional stage performances. Built-in with intuitive and userfriendly media playback and control software Kompass FX1, the ET1S simplifies stage display management and provides best-in-class human-machine interaction. It is ideally suited for exhibitions, showrooms, small-scale conference rooms, and a variety of creative display applications.

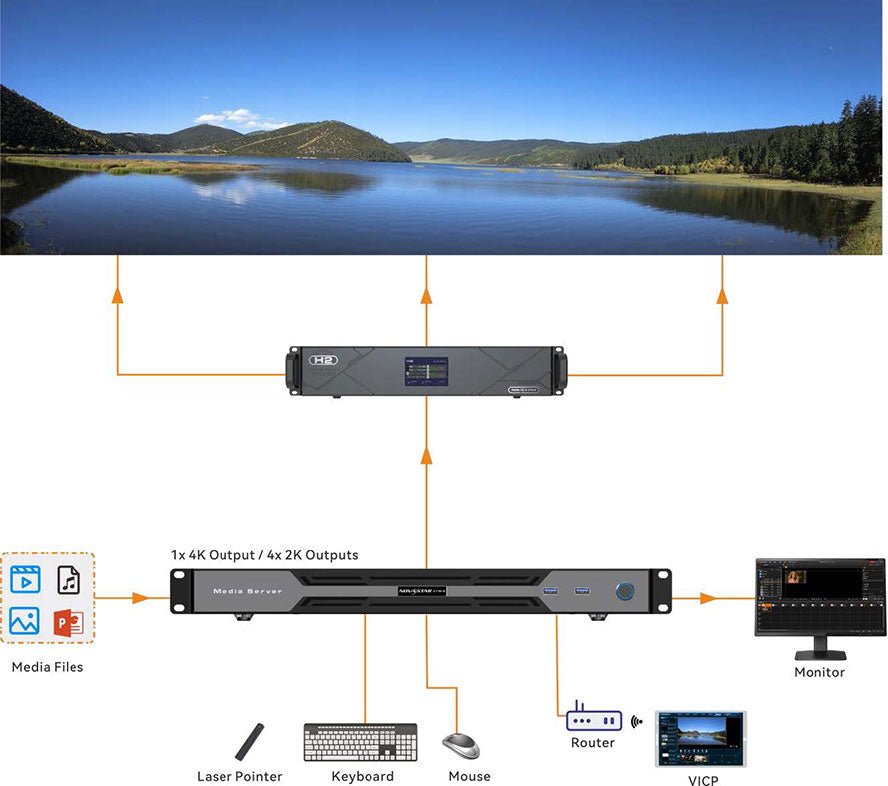

• A single unit supports 1x 4K×2K@60Hz output capacity, ultra-high-resolution video decoding and pixel-to-pixel display
• Multiple connector outputs
  − 1x DP 1.2 output
  − 4x HDMI 1.3 together copy DP 1.2 output content
  − 1x HDMI 2.0 copies DP 1.2 output content
• Firmware update supported
• A single output can be split into up to 1024 partitions, allowing for quick mapping settings and ultra-wide screen configuration
• Playback of up to 4 layers and 1 audio simultaneously
• Visualized program arrangement and management
• Media library management, including videos,pictures, PowerPoint files and audios
• Media file sorting
• Media file batch import
• NDI sources, website sources, streaming media sources and text sources supported
• Media collection configurations
• Up to 1080p PowerPoint files supported
• Using a laser pointer for moving between slides in PowerPoint
• Playback progress management
• Program auto jump
• Adjustable media width, height and priority
• Main KV jumping settings
• Main media based playback progress management
• Crossfade on program switching
• Layer mask and cropping supported
• Hardware decoding
• One-click FTB
• Auto startup of built-in software on system power on, auto program playback on software startup
• Control software VICP (Visual Intelligent Control Platform), enabling a highly efficient and userfriendly control experience

ET1S Multimedia Server Parameter

Electrical specifications
Power supply interface: 100-240V~60/50Hz
Power consumption: 80W

Operating environment
Temperature: 0℃～+45℃
Humidity：0%RH～80%RH,non-condensing

Storage environment
Temperature：-10℃～+60℃
Humidity：0%RH～95%RH, non-condensing

Net weight: 5.2 kg/8kg

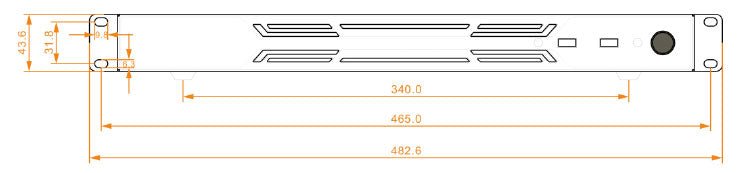

Packing box 565 mm × 510 mm × 175 mm
Packaging information
Accessories:1x Power cable  2x HDMI cables  1x DP 1.2 cable   1x Keyboard and mouse suit    1x Cat5e Ethernet cable  1x Label (Windows product key included) 1x Quick Start Guide  1x Safety Manual  1x Certificate of Approval

Further Information:
ET1S Multimedia Server
Novastar ET1S Multimedia Server Specification
Novastar ET1S Multimedia Quick-Start-Guide
