The CVT10 fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission. The CVT10 hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10 devices, or one CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.
The CVT10 is used for long-distance data transmission. Users can decide a connection method based on whether the sending card has optical ports.
Fiber Converter CVT10
- Models include the CVT10-S (single-mode) and the CVT10-M (multi-mode).
- 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
- 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
- Fiber in and Ethernet out: 8x Ethernet ports available (ports 1–8), ports 9–10 currently unavailable (to beavailable in the future upgrade)
- Ethernet in and fiber out: 10x Ethernet ports available
- 2 types of power connectors, including a 3-pin power socket and a PowerCON socket
- 1x type-B USB control port

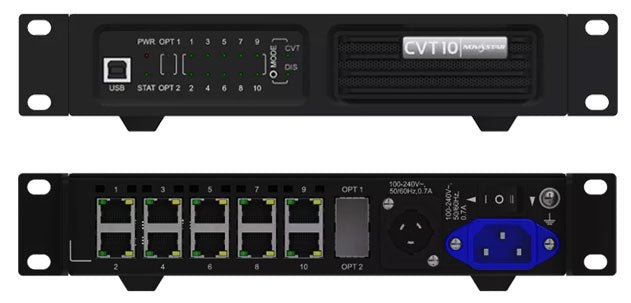

Fiber Converter Appearance
Novastar Fiber Converter CVT10 Parameters
Electrical Specifications | Power supply | 100-240V~, 50/60Hz, 0.7A |
Rated power consumption | 22 W | |
Operating Environment | Temperature | –20ºC to +60ºC |
Humidity | 10% RH to 80% RH, non-condensing | |
Storage Environment | Temperature | –20°C to +70°C |
Humidity | 10% RH to 95% RH, non-condensing | |
Physical Specifications | Dimensions | 254.3 mm × 50.1 mm × 290.0 mm |
Net weight | 2.1 kg Note: It is the weight of a single product only. | |
Gross weight | 3.1 kg Note: It is the total weight of the product, accessories, printed materials and packing materials packed according to the packing specifications. | |
Packing Information | Packing box | 362.0 mm × 141.0 mm × 331.0 mm, kraft paper box |
Outer box | 387.0 mm × 173.0 mm × 359.0 mm, kraft paper box | |
Packing list | l 1x CVT10 l 1x Power cord, 1x USB cable, 1x Ethernet cable l 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts) l 1x Connecting piece l 12x M3*8 screws l 1x Assembling diagram l 1x Certificate of Approval | |
Certifications | RoHS, FCC, CE, IC | |
Further Information:
CVT10
Novastar Fiber Converter CVT10 Specification
