Fine Copper 26PIN LED Display Modules Flat Ribbon Signal Cable Data Cable

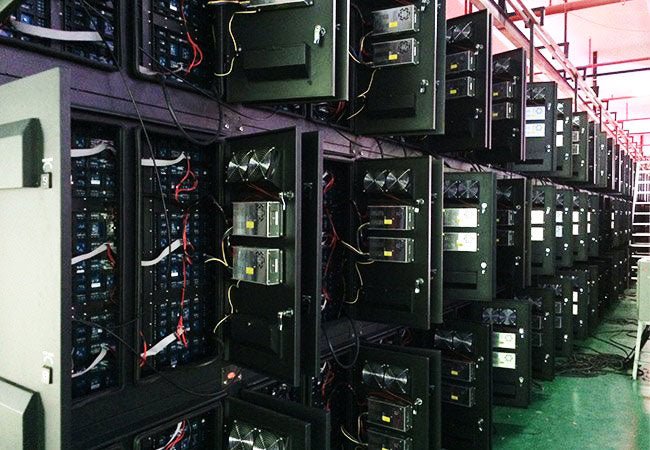

26Pin ribbon cable for data connection between LED modules and HUB card or receiving card.

High quality and more stable.
Pure copper, non-poor copper plating, copper clad aluminum.

This 26 Pin (26 Wire) Female to Female Connector Flat Ribbon Cable (FRC) Cable consists of 26 conducting wires stuck together in parallel. Flat Ribbon Cable/FRC is also known as multi-wire planar cable because they are the type of cables formed by joining insulated wires in a flat plane forming the Ribbon shape. In other words, Ribbon cable has many conducting wires running parallel to each other on the same flat plane.

FRC is an ideal way to connect two devices digitally. The resultant impedance for any two adjacent wires within the cable is 120 Ohms. FRC also fold and bend readily, conforming to the mounting area, and they fasten easily with clamps, adhesive, or double-faced tape. Since the conductors are visible and in a fixed position within the dielectric coding, inspection and circuit tracing are simplified.

Specifications:-

Cable Length – 40cm/60cm/80cm/70m
Cable Width – 33mm
Wire core spacing – 2.5mm
No of Pins/Wires – 26

Package Includes:-
1 x 26 Pin (26 Wire) Female to Female Connector Flat Ribbon Cable (FRC) Cable

* Product Images are shown for illustrative purposes only and may differ from actual product.
