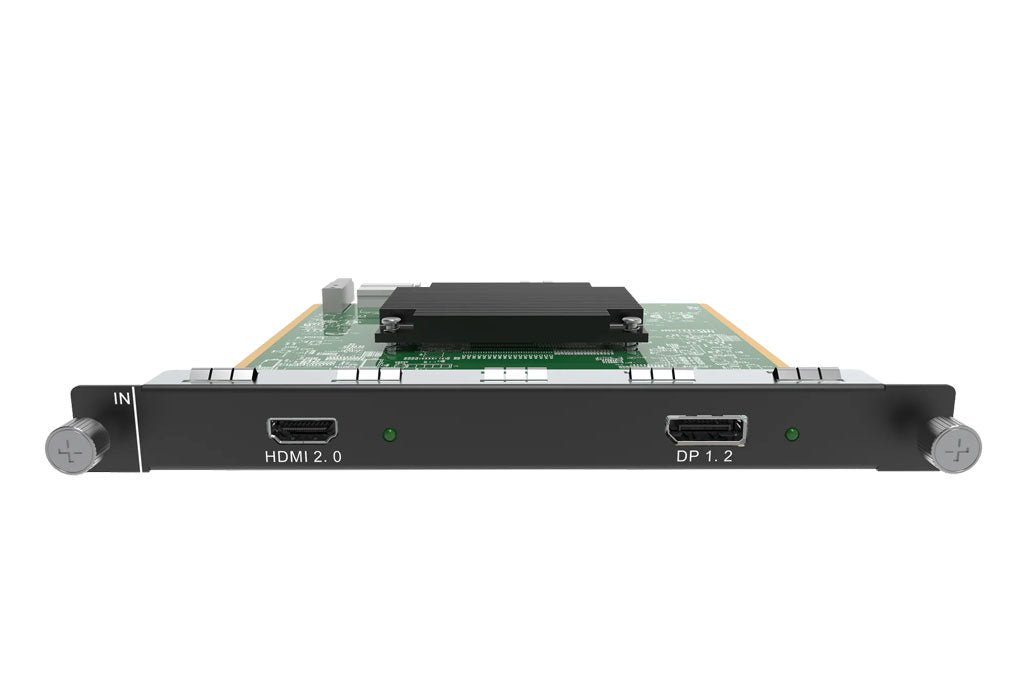

H Series 1x HDMI 2.0 + 1x DP 1.2 Input Card

Novastar H Series 1x HDMI 2.0 + 1x DP 1.2 Input Card

The H Series 1x HDMI 2.0 / 1x DP 1.2 Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 2.2 compliant. It accepts one HDMI 2.0 signal OR one DP 1.2 signal (not both at the same time). The HDMI 2.0 input is backwards compatible with HDMI 1.4 and 1.3 and supports resolutions of up to 4096×2160 @60 Hz or 8192×1080 @60 Hz. The DP 1.2 input is backwards compatible with DP 1.1 and supports resolutions of up to 4096×2160 @60 Hz or 8192×1080 @60 Hz. Two status LEDs indicate if the input signal is valid.

• Supports HDMI 2.0 and DP 1.2  √
• HDCP 2.2 compliant   √
• Two status LEDs   √

DP 1.2:1
HDMI 2.0:1
Input Slots:1
Maximum Input Resolution:4096 x 2160, 8192 x 1080
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
