H Series 1x HDMI 2.0 Output Card

Novastar H Series 1x HDMI 2.0 Output Card

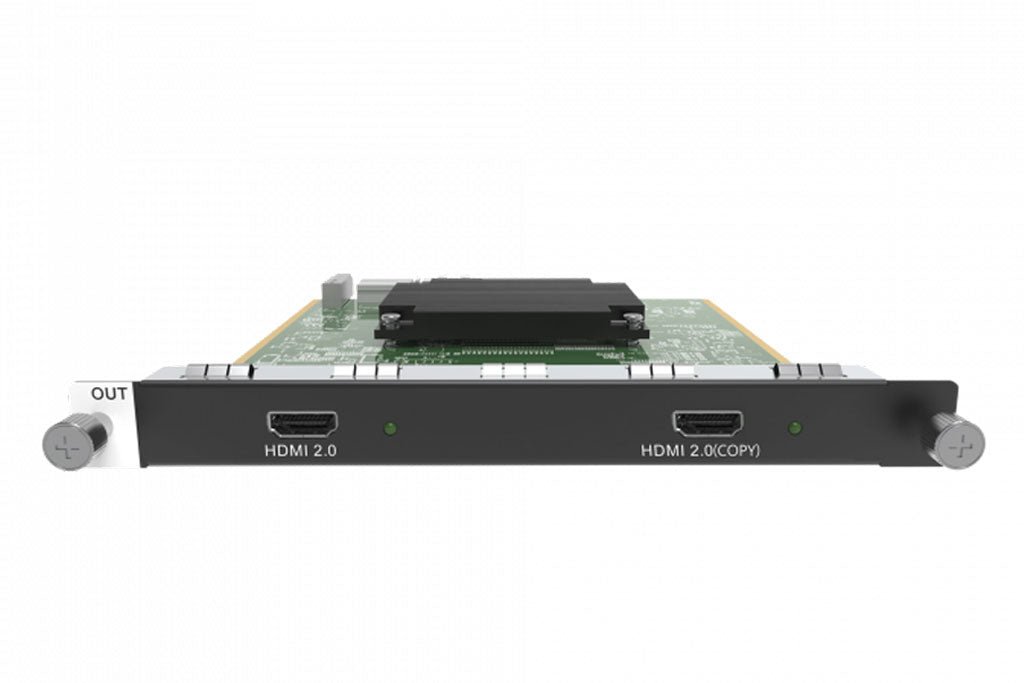

The H Series 1x HDMI 2.0 Output Card is an output card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has two HDMI 2.0 outputs – please note that output 2 offers a duplicated signal of output 1. The supported resolution is 4096 x 2160 @60 Hz, with maximum custom resolutions up to 8192 x 1146 @60 Hz or 1092 x 7680 @60 Hz. It supports 8-bit or 10-bit RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 outputs. Two status LEDs indicate whether the output connectors are connected normally.

HDMI 2.0 (Out):2
Output Slots:1
Maximum Output Resolution:4096 x 2160 , 8192 x 1080
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
