Sale!

Hirender S3 4UPro 2UPro Media Servers Large Size Screen LED Display Graphics System

Name: Hirender S3 4UPro 2UPro Media Servers Large Size Screen LED Display Graphics System
SKU: 8765451698403
Availability: InStock

Price range: $2,300.00 through $8,000.00

SKU: 8765451698403 Category: Uncategorized Tags: LED Display Controller, LED Video Processor

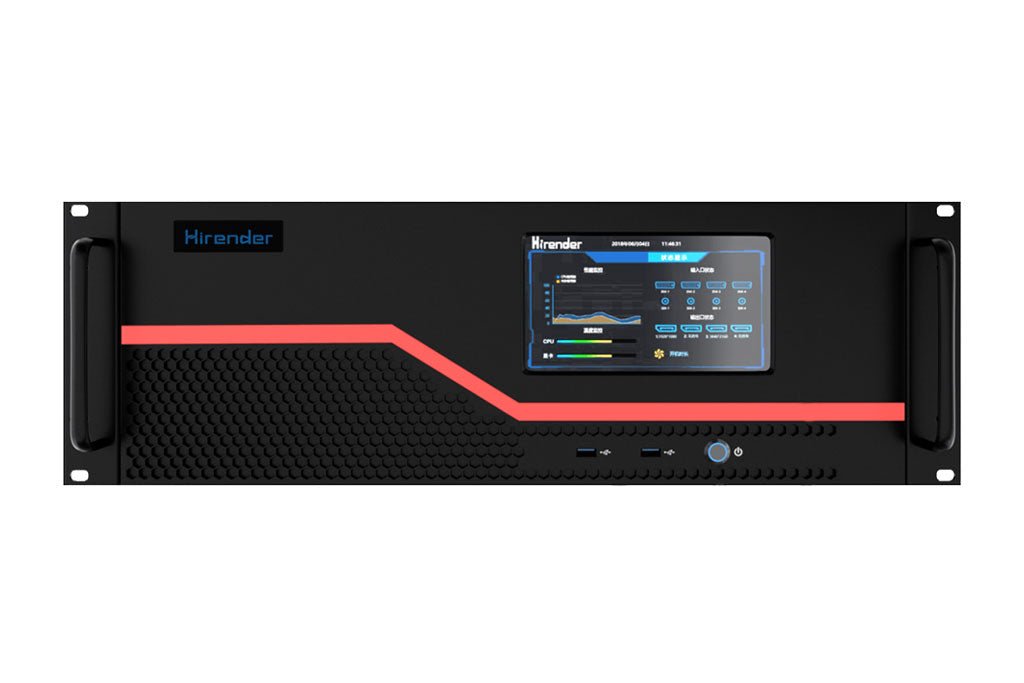

Hirender 4UPro Media Servers

Hirender 4UPro is a high-performance custom media server optimized for Hirender S3 software. Hirender 4UPro features four 4K outputs and multiple video capture channels. Designed for large-scale performances and activities.

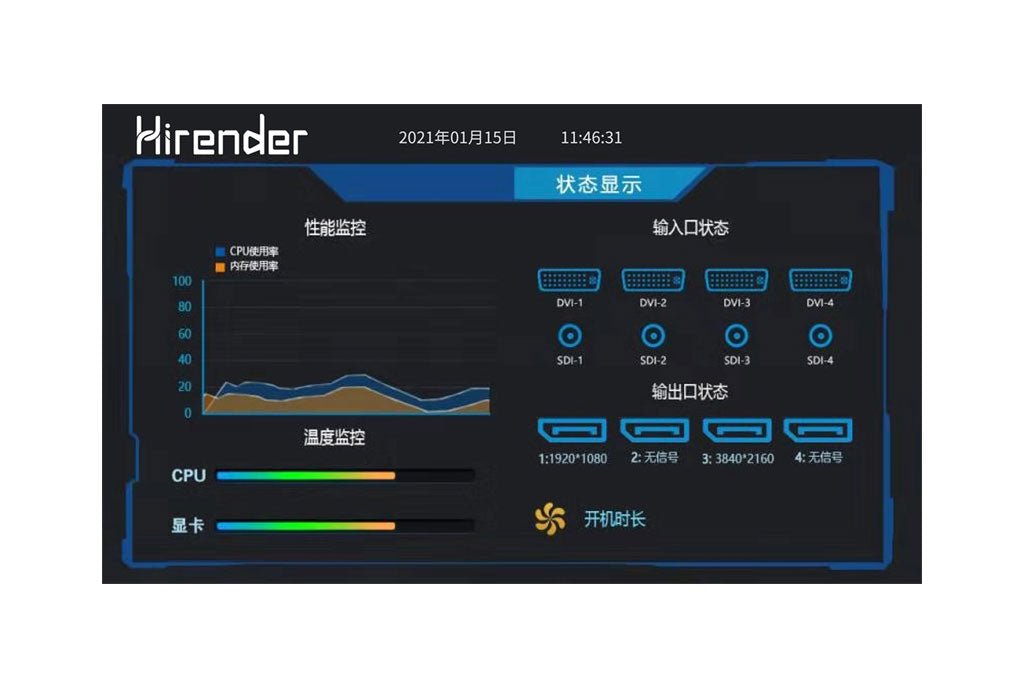

Touch Panel Function

Monitor CPU/ memory usage
Monitor temperature of CPU and graphics card
Monitor status of graphics card output
Monitor running time information
Touch shortcut key to open S3 display
Change IP of the PC
Clear the S3 display cache
Change audio player device
Change the encryption lock mode
Touch shortcut key to lock the screen
Power off the server periodically

Technical specifications

System connectivity Video Output 3xDisplayPort 1.4(5120*2880 max) 1xDisplayPort 1.4

Video Input 4*HDMI or 4*HD-SDI

Physical Specifications Mounting System 4U”rack mount

Unit Dimensions W:483mm H:178mm D:650mm

Unit & Rack Handles 18kg

Environmental Tolerances Temperature:5-35°C（40°-95°F）

Humidity：5%-95%（non-condensing）

Altitude：0-8850 ft（0-2700m）

Hardware Specifications CPU Intel 8-core high frequency processor

Motherboard Hight performance PRIME Motherboard
Memory 16G DDR4 2666Mhz high frequency memory

Hard Disk 500G M.2 SSD(Extensible)

Power Supply 600W High Quality 80Plus Power Supply

GPU Quadro 5GB Professional Graphics Card

Capture Card Hirender Custom Capture Card

Audio 3.5mm Audio port/ 7.1 sound channel/ Cannon port/ Built-in audio isolation

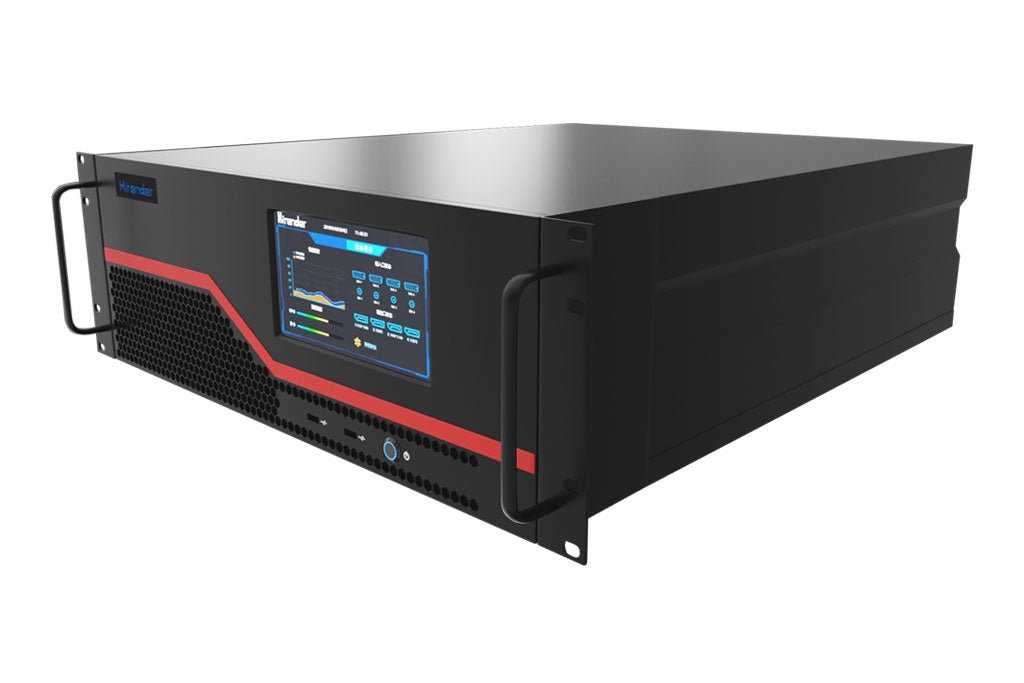

Hirender 2UPro Media Servers

Hirender 2UPro is a high-performance custom media server optimized for the Hirender S1 software. Hirender 2UPro has four 2K outputs and two video capture channels. Designed for small performances and activities.

Technical specifications

System connection output 3x DisplayPort 1.2 Stage interface (up to： 4096 x 2160) 1x DisplayPort 1.2 User interface

input 2x HD-SDI and 2x DVI（Basic configuration） ( up to：1920 x 1080@60FPS )

Data/peripheral 2xUSB2.0

4xUSB3.0

Audio input/output

1x Microphone input

1x line output

Working condition temperature：5 – 35°C（40° – 95°F）

humidity：5％ – 95％（non-condensing）

altitude：0 – 8850 ft（0 – 2700m）

Power supply 100-240v，50-60Hz

power 500W @ 230V（MAX）

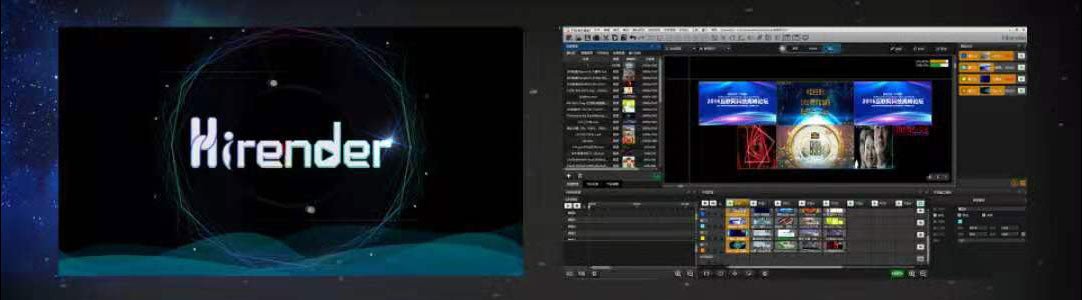

Paired with Hirender S3

Hirender S3 multimedia server can easily manage the broadcast control process with its powerful dual control mode (timeline + window). The innovative program management module makes switching easier and more flexible. It can achieve up to 15360*2160 through high-performance server. Point-to-point display, multiple infinite poles and many other effects. At the same time, multi-channel synchronous output can easily achieve all the effects of super-resolution LED splicing, projection fusion, creative display and so on.

Hirender is system for large size screen display technology. Hirender is the maker of expansive size multi-show programming, your most optimized plan of attack to making fabulous shows. Utilize Hirender to create and deal with all the distinctive media components in your show – video, still pictures, animations, illustrations, live feeds, sound – and afterward play it back on various showcases. Flawlessly synchronized, high res and appropriate on-cue.
