Huidu Dual-mode A Series LED Display Controller HD-A8 A7 A6L A5L A4L LED Multimedia Player

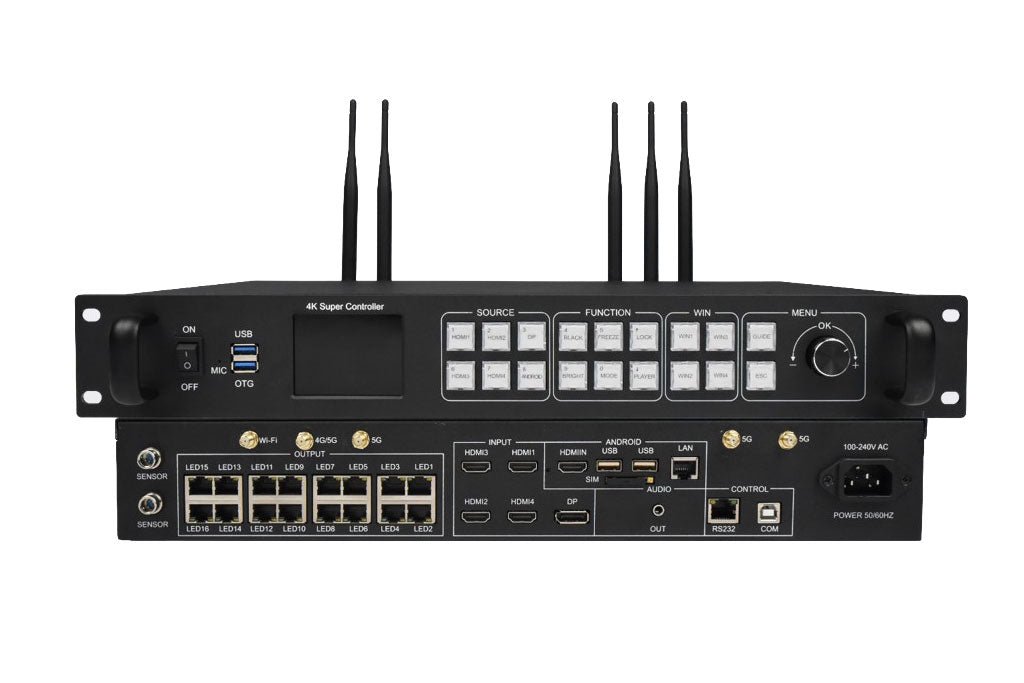

Super LED Controller HD-A8

HD-A8 is a 4K synchronous and asynchronous player for Ultra-large resolution outdoor or indoor advertising, led wall, digital signage, and other commercial applications.

• Ultra-large resolution loading capability, supports 4K asynchronously (is 8.29 million pixels), and synchronously supports 10.4 million pixels;
• Equipped with dual-band Wi-Fi, support mobile APP wireless control;
• Supports wireless screen projection on mobile phones and tablets;
• Support intelligent voice control; Bluetooth wireless remote control;
• With 32GB storage, support U disk expansion and insertion;
• HDMI/DP high-definition video input synchronous playback;
• Support HD video hard decoding, up to 60fps;
• No need for complex network settings, automatic device identification, plug and play;
• Support LAN or Internet cluster management; support optional 5G network module;
• Equipped with Standard 3.5mm standard audio output interface.

1. Internet remote cluster control: A8 4K Super Master can be connected to the Internet through 4G/5G (optional), network cable connection, and Wi-Fi Bridge (Station mode).

2. Asynchronous control: update the program through network cable connection, Wi-Fi connection and U disk. The local area network (cluster) control can be connected to the local area network network through network cable connection and Wi-Fi bridge.

3. Real-time screen synchronization display: support HDMI/DP signal input synchronization playback, support 4 video screen playback and multi-channel synchronization signal switch arbitrarily.
4. Screen projection display: The display content of the mobile phone/tablet is wirelessly projected to the display screen.

LED Multimedia Player A8

Loading Capacity ：8,200,000 pixels (3840 * 2140), widest 15360, highest 2160
Processing Capacity ：32GB storage, support U disk expansion and insertion;
Wi-Fi ：√(Dual wifi)
4G、5G ：√（Optional）
Switching on/off of synchronous display ：√

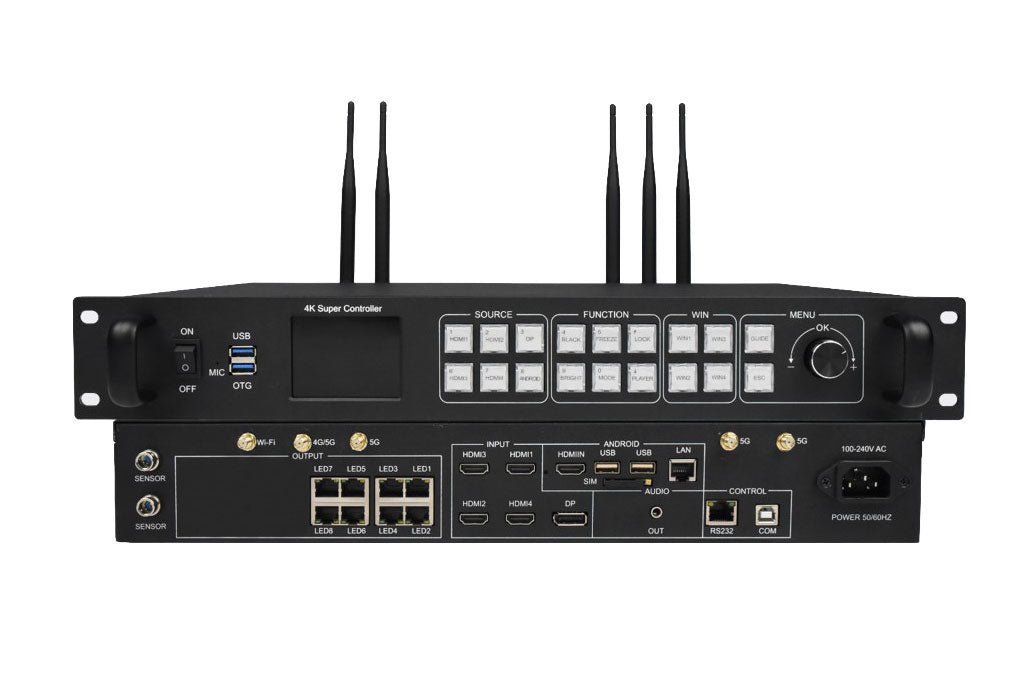

LED Multimedia Player A7

Loading Capacity ：5,200,000 pixels(3840 * 1344), widest 15360, highest 2160
Processing Capacity ：32GB storage, support U disk expansion and insertion;
Wi-Fi ：√(Dual Wifi)
4G、5G：√(Optional)
Switching on/off of synchronous display ：√

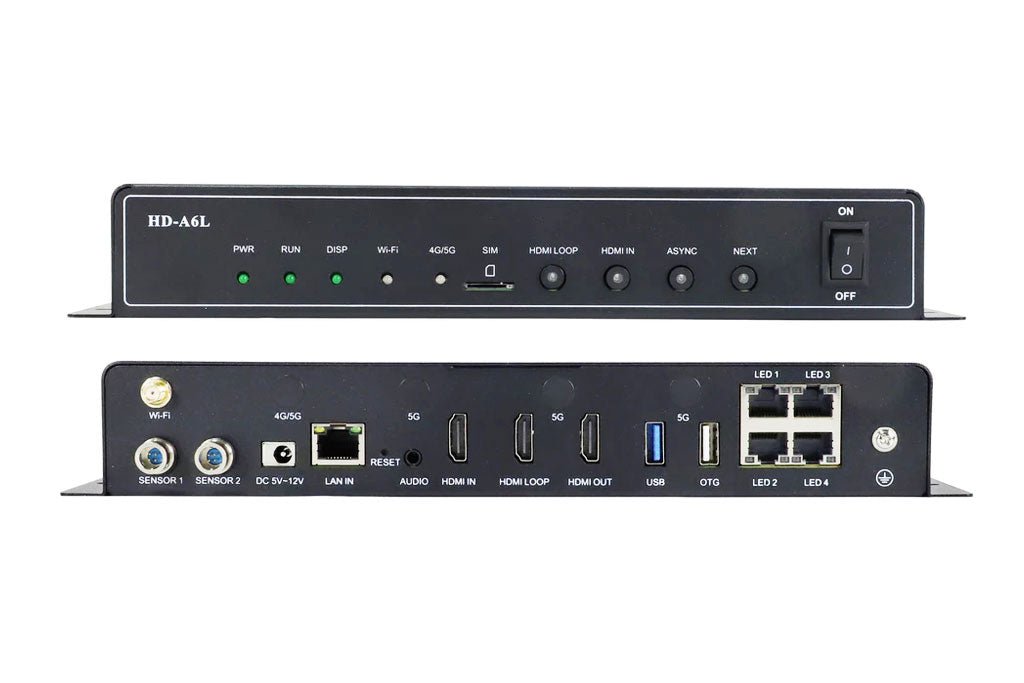

LED Multimedia Player A6L

Loading Capacity ：2,300,000 pixels(1920 * 1200), widest 3840, highest 4096
Processing Capacity ：8GB storage, support U disk expansion and insertion;
Wi-Fi ：√（dual wifi）
3G、4G：√(Optional)
Switching on/off of synchronous display ：√

LED Multimedia Player A5L

Loading Capacity ：1,300,000 pixels(1280 * 1024), widest 3840, highest 2048
Processing Capacity ：8GB storage, support U disk expansion and insertion;
Wi-Fi ：√（dual wifi）
3G、4G ：√(Optional)
Switching on/off of synchronous display ：√

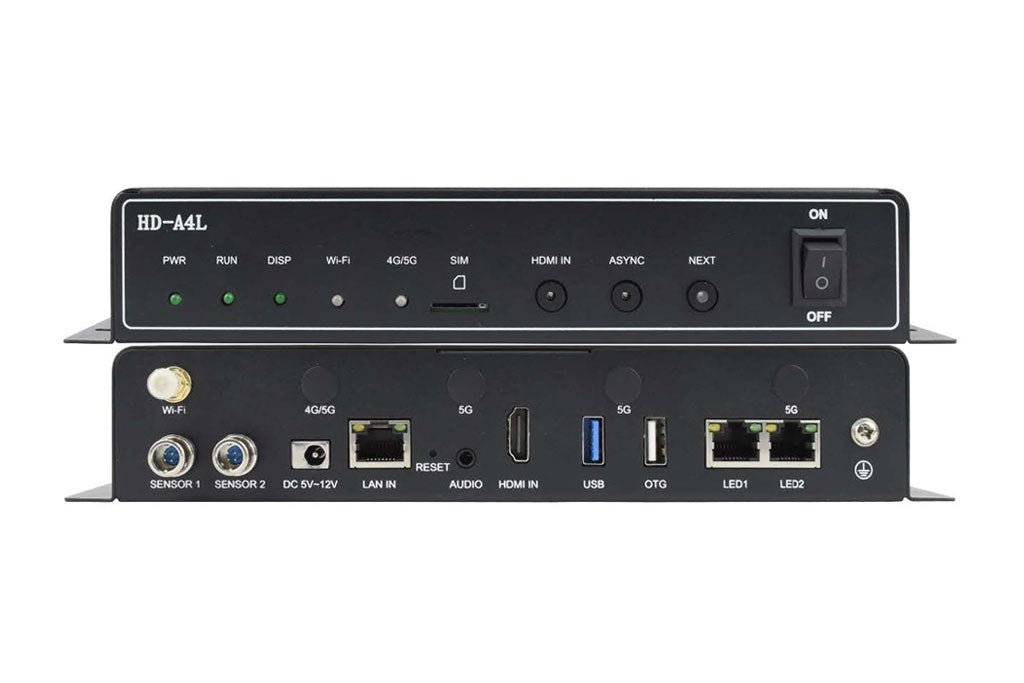

LED Multimedia Player A4L

Loading Capacity ：650,000 pixels(1280 * 512), widest 3840, highest 2048
Processing Capacity ：8GB storage, support U disk expansion and insertion;
Wi-Fi ：√（dual wifi）
3G、4G ：√(Optional)
Switching on/off of synchronous display ：√

LED Multimedia Player A3L

Loading Capacity ：650,000 pixels(1280 * 512), widest 4096, highest 2048
Processing Capacity ：8GB storage, support U disk expansion and insertion;
Wi-Fi ：√（dual wifi）
3G、4G ：√(Optional)
Switching on/off of synchronous display ：×
