Huidu HD-T16 T08 LED Sending Box LED Display Screen Controller

Name: Huidu HD-T16 T08 LED Sending Box LED Display Screen Controller
SKU: 8765441343715
Availability: InStock

Price range: $270.00 through $500.00

SKU: 8765441343715 Category: Uncategorized Tags: Huidu, LED Display Controller, LED Sending Box

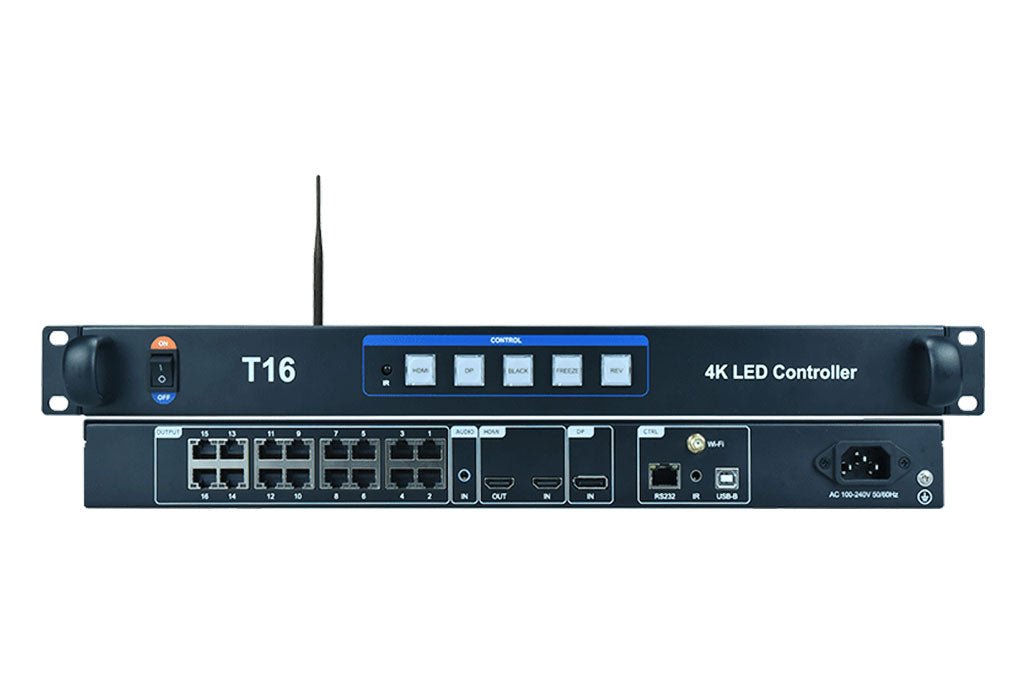

Synchronous Sending Box HD-T16

HD-T16 is a synchronous sending box with one DVI signal input, 16 Gigabit network, the maximum load capacity is 8.84 million pixels, widest 8192 pixels, highest 4096 pixels, support multiple device splicing control LED screen .

1. Support 2 dual channel stereo input；
2. Four DVI video signal input；
3. USB-B control interface；
4. Cascading multiple units control super LED screen；
5. Built-in 110V~220V AC to 5V DC transformer；
6. 16 network port output, maximum load capacity 8.84 million pixels.

Huidu HD T16 Synchronous Sending Box Connection Diagram：

Synchronous Sending Box HD-T902x2

Huidu HD-T16 Synchronous Sending Box Parameters:

Function	Parameters
Control range	Connect with video processor maximum control 8.84 million pixels (2560*2048@60Hz) Widest 8192, Highest 4096
Program update	DVI synchronous display
Audio output	Standard 3.5mm interface dual channel stereo input
Audio input	Need to cooperate with multi-function card to achieve audio output
Communication type	USB-B type interface, Gigabit network port
Play box interface	Input: AC 110~220V 50/60Hz power terminal 1, DVI 2, USB 2.0 2, dual channel Audio 2 Output: 1000M RJ45 *16
Operating Voltage	4.5V~5.5V，Input voltage AC 110~220V
Debugging software	HDSet
Player software	HD Show（not necessary）
Power	20W

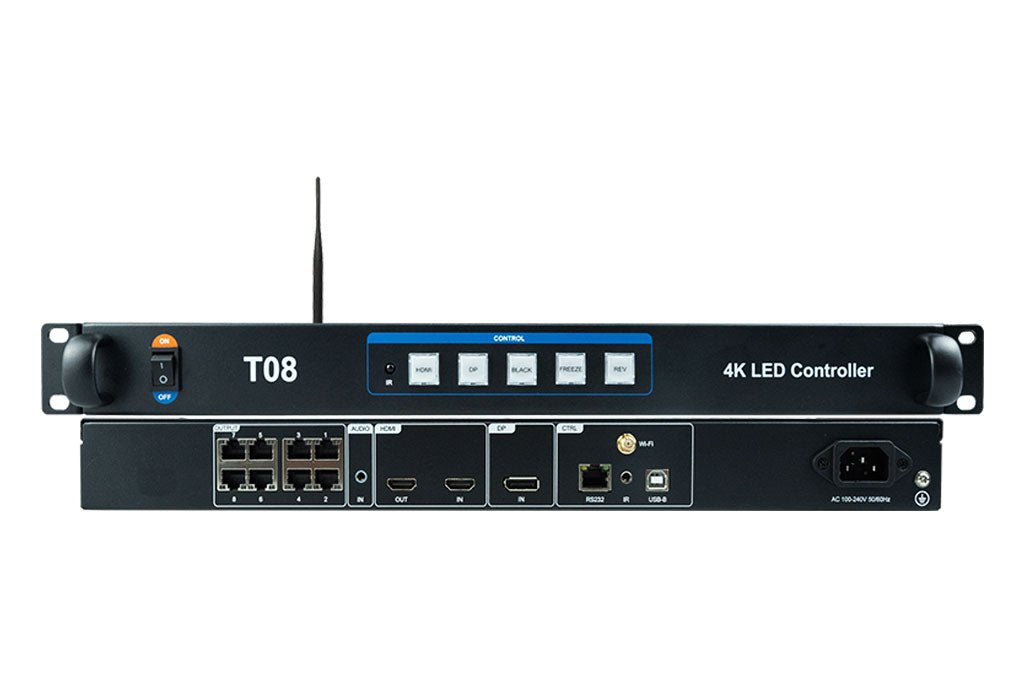

Synchronous Sending Box HD-T08

HD-T08 is a synchronous sending box with one DVI signal input, 8 Gigabit network, the maximum load capacity is 5.2 million pixels, widest 8192 pixels, highest 2048 pixels, support multiple device splicing control LED screen .
