Huidu HD-T902x1 T902x2 LED Sending Box LED Display Screen Controller

Name: Huidu HD-T902x1 T902x2 LED Sending Box LED Display Screen Controller
SKU: 8765445570787
Availability: InStock

Price range: $190.00 through $300.00

SKU: 8765445570787 Category: Uncategorized Tags: Huidu, LED Display Controller, LED Sending Box

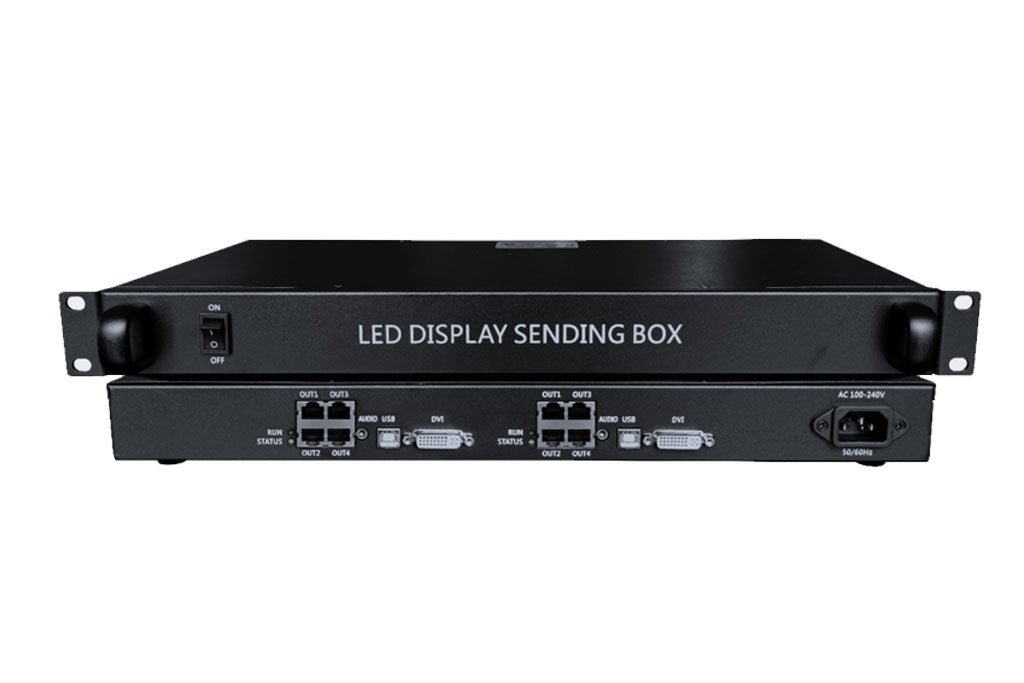

Synchronous Sending Box HD-T902x2

HD-T902x2 is a synchronous sending box with one DVI signal input, 8 Gigabit network, the maximum load capacity is 5.2 million pixels, widest 7680 pixels, highest 4096 pixels, support multiple device splicing control LED screen .

1. Support 2 dual channel stereo input；
2. Four DVI video signal input；
3. USB-B control interface；
4. Cascading multiple units control super LED screen；
5. Built-in 110V~220V AC to 5V DC transformer；
6. 4 network port output, maximum load capacity 5.2 million pixels.

Huidu HD T902x2 Synchronous Sending Box Connection Diagram：

Synchronous Sending Box HD-T902x2

Huidu HD-T902x2 Synchronous Sending Box Parameters:

Function	Parameters
Control range	Connect with video processor maximum control 5.2 million pixels (2560*2048@60Hz) Widest 7680, Highest 4096
Program update	DVI synchronous display
Audio output	Standard 3.5mm interface dual channel stereo input
Audio input	Need to cooperate with multi-function card to achieve audio output
Communication type	USB-B type interface, Gigabit network port
Play box interface	Input: AC 110~220V 50/60Hz power terminal 1, DVI 2, USB 2.0 2, dual channel Audio 2 Output: 1000M RJ45 *8
Operating Voltage	4.5V~5.5V，Input voltage AC 110~220V
Debugging software	HDSet
Player software	HD Show（not necessary）
Power	20W

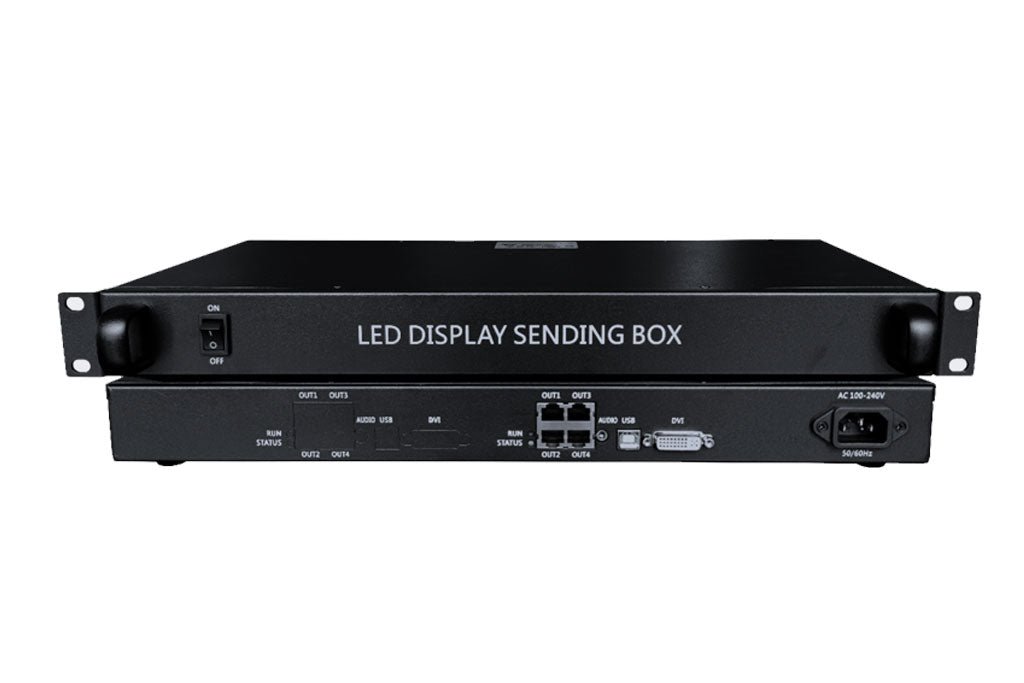

Synchronous Sending Box HD-T902x1

HD-T902x1 is a synchronous sending box with one DVI signal input, 4 Gigabit network, the maximum load capacity is 2.6 million pixels, widest 3840 pixels, highest 2048 pixels, support multiple device splicing control LED screen .
