Huidu R Series LED Receiving Card HD-R708 R712 R716 LED Display Controller

Name: Huidu R Series LED Receiving Card HD-R708 R712 R716 LED Display Controller
SKU: 8765445374179
Availability: InStock

Price range: $11.50 through $13.50

SKU: 8765445374179 Category: Uncategorized Tags: Huidu, LED Display Controller, LED Receiving Card

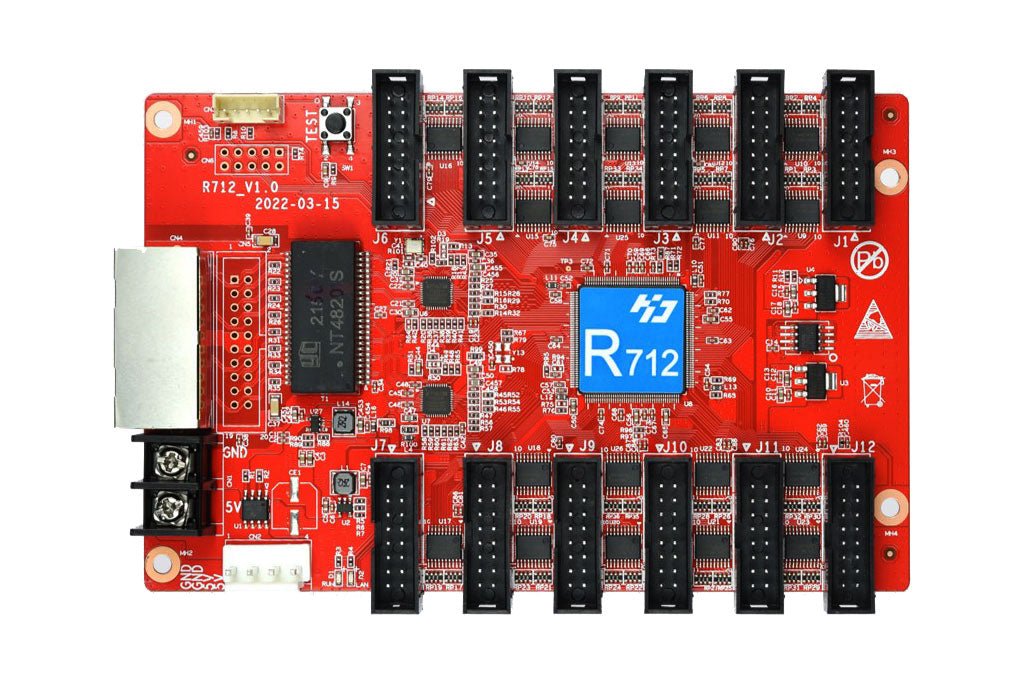

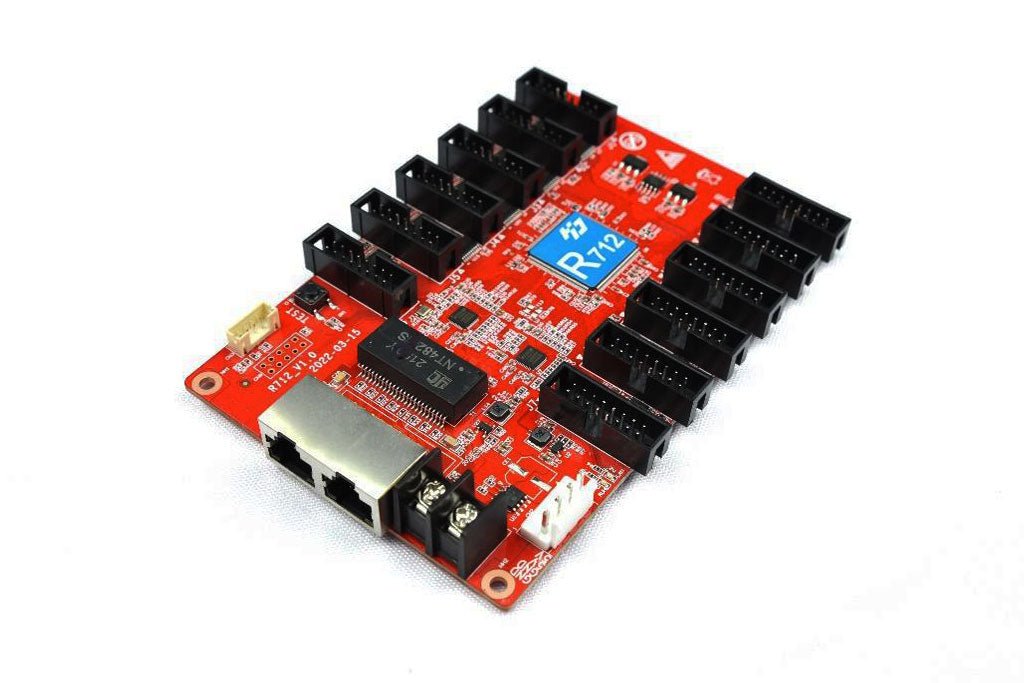

HUB75E Port Receiving Card HD-R712
R712 is an LED display receiving card that supports both synchronous and asynchronous control system, no need HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels.

1. Integrated with 12 lines HUB75E port
2. Ultra loading capacity, conventional chip recommended 128*768 pixels, PWM chip recommended 256*512 pixels
3. Support data group exchange and data group offset setting
4. Support any scan module within static~1/128 scan
5. Support multi-card cascade, arbitrary order
6. Support data group exchange and data group offset setting

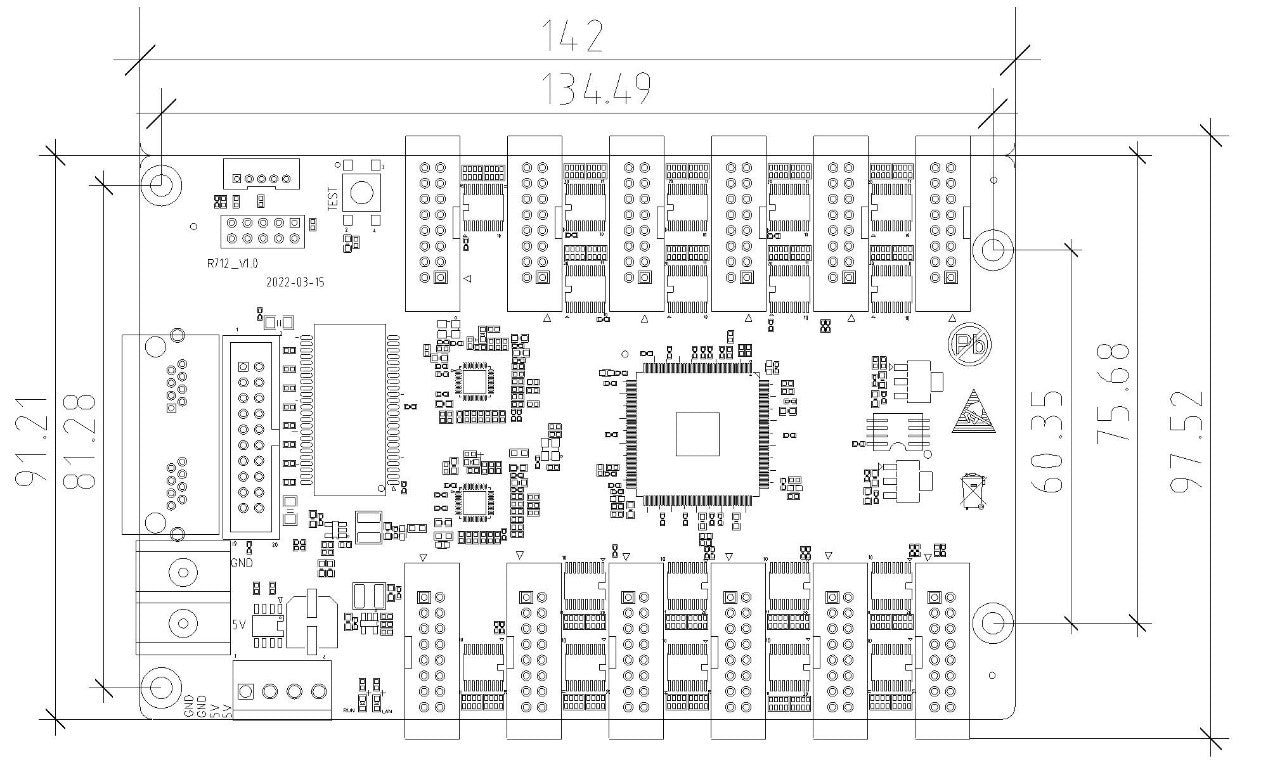

HUB75E Port Receiving Card HD-R712 Dimensions:

HUB75E Port Receiving Card HD-R712 Connection Method:

Features	Parameters
With sending card	Dual-mode sending box, Asynchronous sending card, Synchronous sending card, Video processor of VP series.
Module type	Compatible with all common IC module, supported most PWM IC module.
Scan mode	Supports any scanning method from static to 1/128 scan
Communication method	Gigabit Ethernet
Control range	Maximum loading capacity: 262,144 pixels (512512) Recommended loading capacity: conventional chip 1281024 pixels, PWM chip 256*1024 pixels Note: The actual loading capacity is related to the number of HUB ports/module resolution.
Multi-card connection	Receiving card can be put in any sequence
Gray scale	256~65536
Smart setting	A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
Test functions	Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
Communication distance	Super Cat5, Cat6 network cable within 80 meters
Port	DC 5V Power2, Gbps Ethernet port2, HUB75E*12
Input voltage	4.0V-5.5V
Power	5W

HUB75E Port Receiving Card HD-R612
The R612 is a dedicated receiving card for the module with LS9929/9919 chip.
It can also be used as a conventional receiving card with a limit control range
of 128*1024.

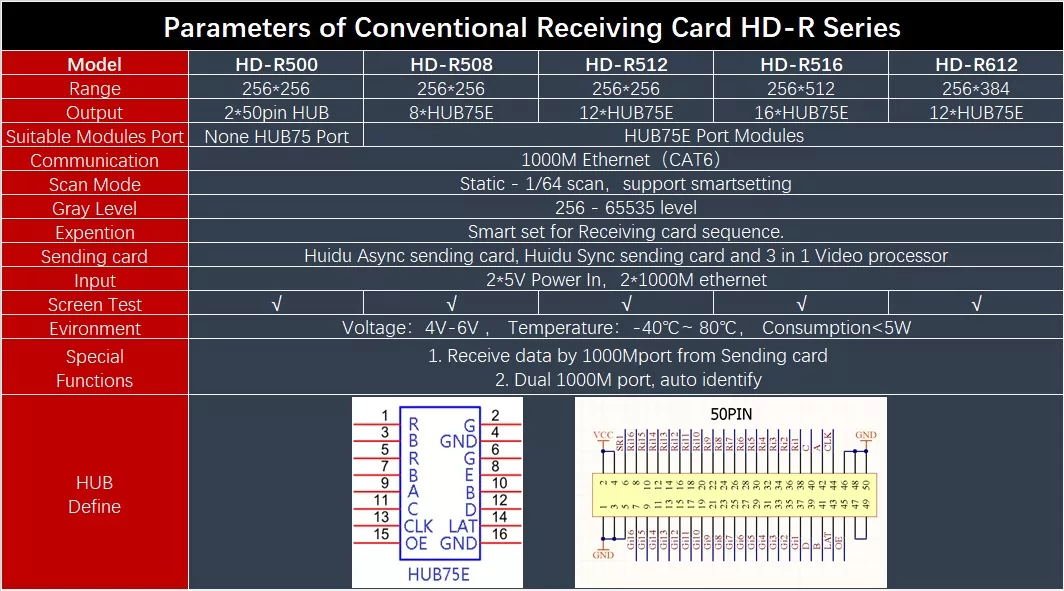

R500(2*HUB50pin), R508(8*HUB75), R512(12*HUB75), R516(16*HUB75), R612(12*HUB75)
Work with Huidu sending cards Ax,A60x, A30/A30+, Cx5, Cx0,A3, T901/T901B, VP210, VP410.

HUB75E Port Receiving Card HD-R716
HD-R716 is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 16 lines HUB75E port.

Integrated with 16 lines HUB75E port
Support regular chips and PWM chips
Support static module, any scan mode within 2~64 scan
Support data group exchange and data group offset setting
Smart settings, draw points, trace points, etc.
Support multi-card cascade, arbitrary order
Recommended loading range: 128*768/ 128*1024

HUB75E Port Receiving Card HD-R712
HD-R712 is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 12 lines HUB75E port.

Integrated with 12 lines HUB75E port
Support regular chips and PWM chips
Support static module, any scan mode within 2~64 scan
Support data group exchange and data group offset setting
Smart settings, draw points, trace points, etc.
Support multi-card cascade, arbitrary order
Recommended loading range: 256*512/ 128*768

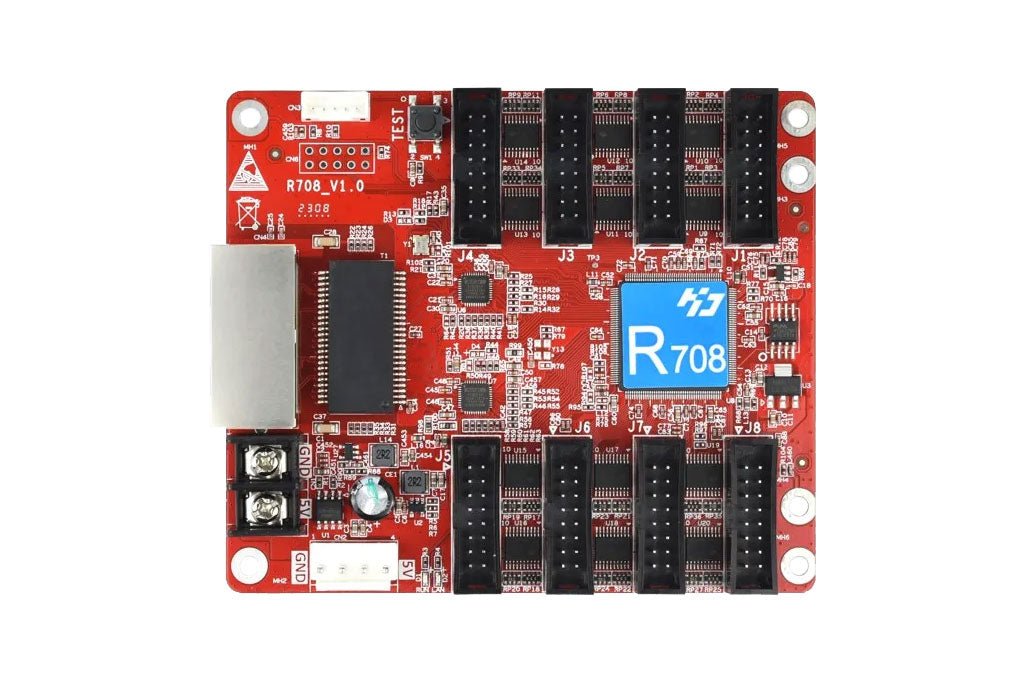

HUB75E Port Receiving Card HD-R708
HD-R708 is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 8 lines HUB75E port.
