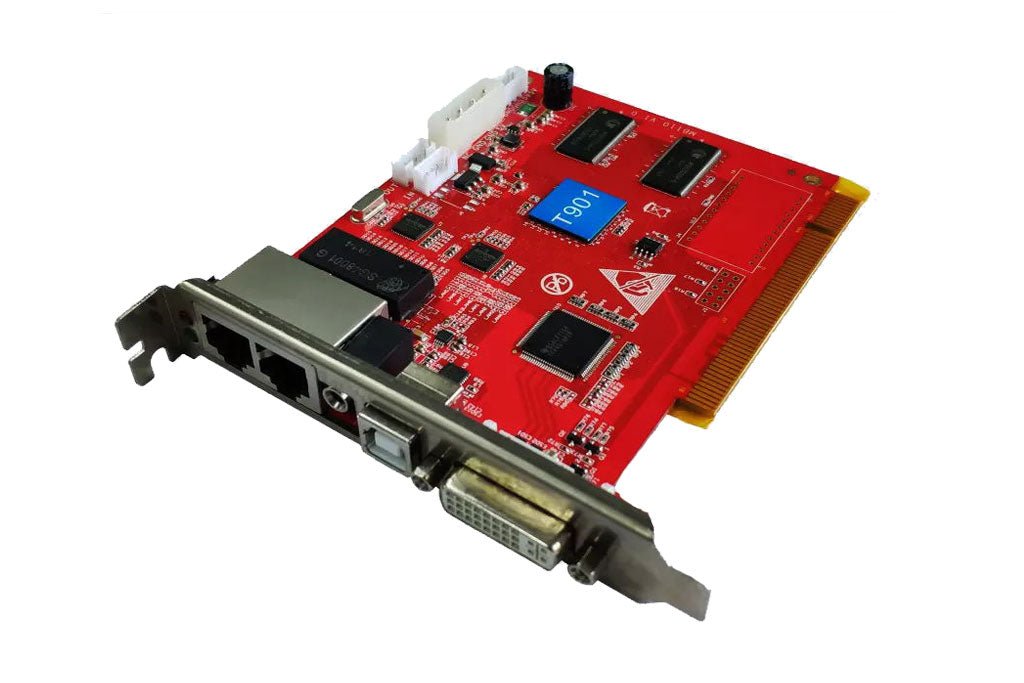

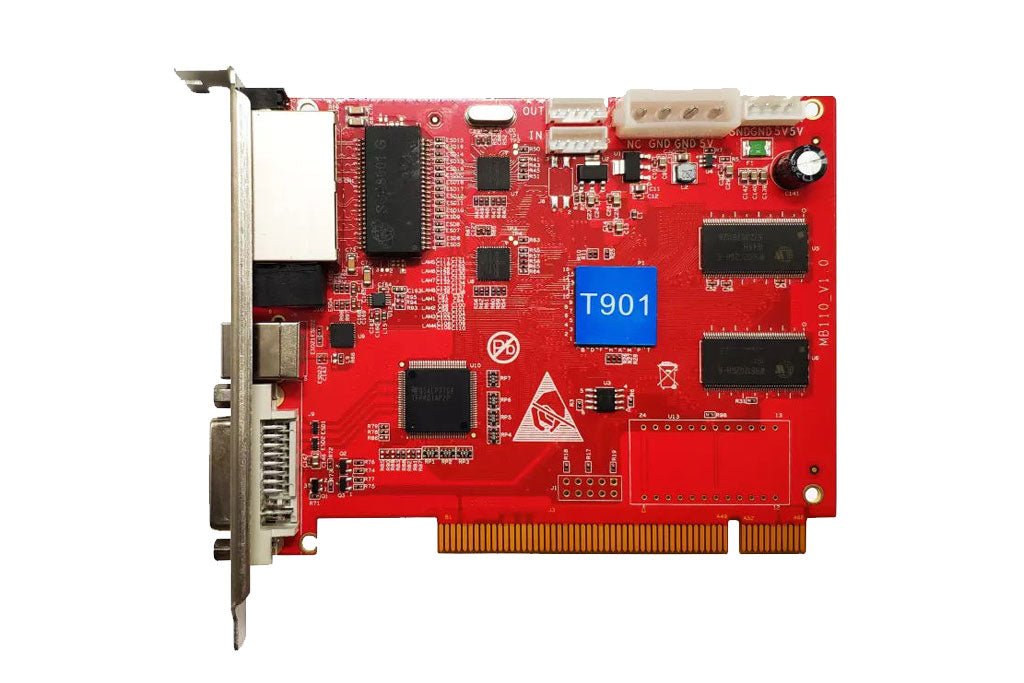

Huidu LED Display Controller HD-T901 LED Sending Card

Name: Huidu LED Display Controller HD-T901 LED Sending Card
SKU: 8765445669091
Availability: InStock

Price range: $78.00 through $95.00

SKU: 8765445669091 Category: Uncategorized Tags: Huidu, LED Display Controller, LED Sending Card

Huidu HD-T901 is a synchronous sending box with one DVI signal input, 2 Gigabit network, the maximum load capacity is 1.3 million pixels, widest 3840 pixels, highest 2048 pixels, support multiple device splicing control LED screen.

1. Support 1~64 scan, compatible with indoor and outdoor full color and single color module.
2. Control range: 1.3 million pixels, the widest 3840 (need video processor), and the highest 2048.
3. One DVI video input.
4. Supports up to 65536 grayscale level.
5. Support cascading with serial port to configure multiple sending cards, support sending card cascade to control screen in high resolution.

Huidu HD-T901 Synchronous Sending Card Parameters:

Function	Parameters
Module type	Compatible with indoor and outdoor full color and single color module; Support PWM chips and conventional chip
scanning method	Supports any scanning method from static to 1/64 scan
Control range	1.3 million pixels (1280*1024@60Hz) Note：width more than1920 pixels, it need used with video processor.
Grayscale	Support 0-65536 level adjustable
Program update	DVI synchronous display
Temperature of working environment	-20℃-80℃
interface	Input: 5V power supply terminal, DVIx1, USB 2.0 x1, PCI finger x1, serial cascade x1, Audio x1 Output: 1000M RJ45 x2, serial for cascadingx1
Power	5W
