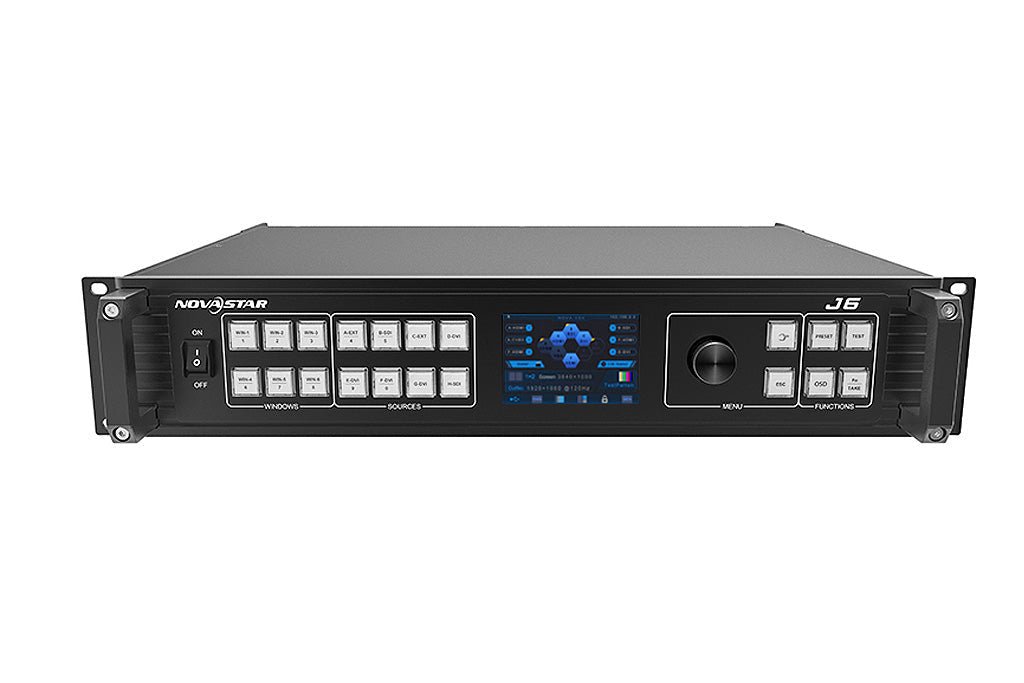

Amoonsky J6 Multi-Screen Splicing Processor LED Video Processor 4K Ultra HD

Developed by NovaStar, J6 is the latest high-performance multi-screen splicing processor featuring enhanced image processing.
Based on a powerful FPGA processing platform, J6 supports quick seamless switch of any input source and supports transition effects such as fade, etc., allowing you to experience more flexible screen layouts.
In addition, J6 can work with the new smart management software V-Can to enable more screen splicing effects and better satisfy your needs.

● Supports a wide range of video inputs divided into 4 groups with 8 connectors, including 1× HDMI (or VGA, or DVI), 4 × DVI, 2 × SDI, and 1 × DualLink DVI (or HDMI 1.4, or DP1.1).
● The input resolution of Input A supports 4K×2K@30Hz. Other inputs support 1920×1080@60Hz which are downward compatible.
● Supports 5 × outputs, including 4 groups with 8 DVI connectors for splicing output, and 1 × HDMI preview output.
● The preview connector supports preview of PVW, PGM and 8 × input signals.
● Output resolution is settable. The splicing width of 4 channels can be up to 15360×600.
● Up to 6 windows can be displayed simultaneously and the resolution of each window is up to 7680×1080@60Hz. J6 also supports one OSD of up to 4K×2K, which can be images or texts.
● The window position, size, etc. are adjustable, and each window can be added with borders of custom color and widths.
● Besides the 6 built-in preset templates, up to 16 user presets can be created and saved as templates. All the presets can be used directly and easily.
● Provides 21 transition effects to enhance and present images with professional quality.
● An intuitive color LCD on the front panel and clear button indicator lights simplify the system control operations.
● Supports Genlock synchronization, allowing you to choose any input source or external synchronization signal to achieve vertical synchronization.

LED Video processor Diagram

Multi-Screen

6 layers + 1 OSD 4K × K on every image

High Image Quality
4K zooming engine
UHD input & output, perfectly clear image

Large Capacity
4K × 2K custom output on single device
Supports your extra size displays

Dual-Mode
Splice mode | Seamless switching mode
Powerful processing for all your needs

Switching Mode:

• Seamless switching between input sources
  Avoids black screen, blinking and image delay
  Supports over 20 special effects:
  Appear | Fade in & Out | Slide in & out

• Supports PVW & PGM
  “TAKE” – One button switching

Splicing Mode:

Safe & Stable
Inputs:

• Cross grid input/output monitoring

• 8 sets of separate input sources with 2 sets
  extendable to any type of input sources

• INPUT-A supports 4K UHD input

Outputs:

Double-port output backup for switching between single & dual mode

More Features

• Easy to Function – full color front panel LCDdisplay

• Ensured synchronization between signals -GENLOCK

• 16 template storage space, supports task management based on time

• Editable window size and format
