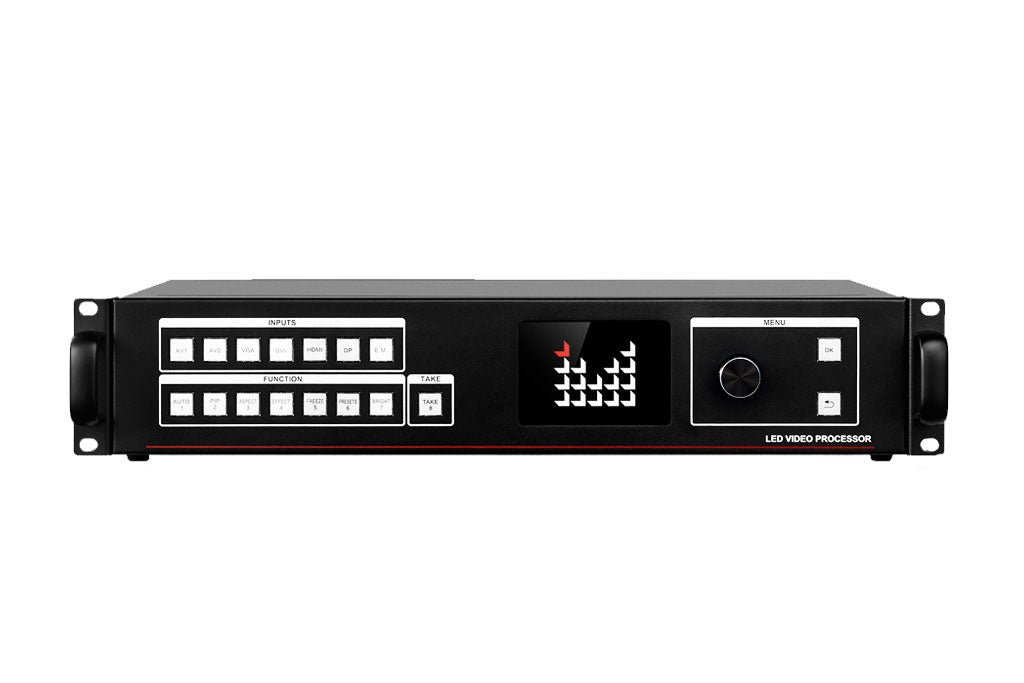

LED-570E LED Video Processor
- Single Machine Supports Pixel to Pixel Splicing within 4K
Two DVI output ports,split function,customized output resolution, this is how LED-570E supports any size of pixel to pixel splicing within 4K.

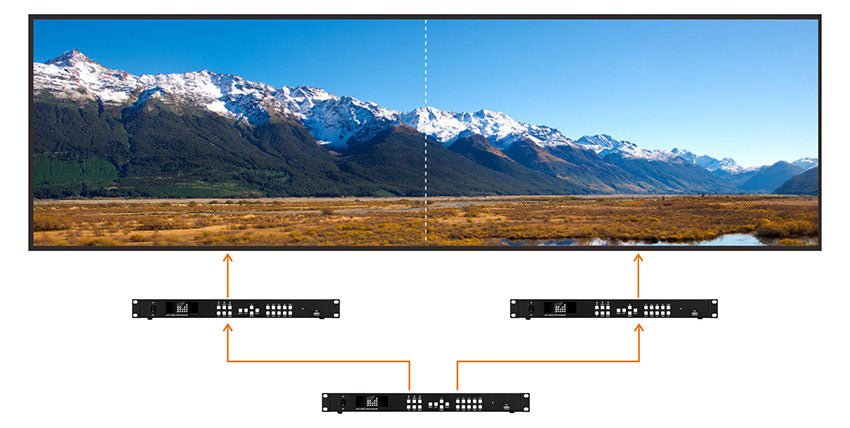

- Multi-machine 4K*2K Pixel to Pixel Splicing
Using one LED-570E as a main control, another 2 pcs of LED-570E cascading through DP loop,this is a perfect solution for 4K*2K pixel to pixel display.
- Preview Switching
It has a seamless switching from preview to program without black.
- Monitoring
Adding an extended monitor module,LED-570E will transmit signal to the monitor display and realize the real time monitoring.
Technical Specification
Input Indicators
Port | Amount | Resolution Standard |
AV | 2 | PAL、NTSC、SECAM |
VGA | 1 | VESA |
DVI | 1 | VESA |
HDMI | 1 | EIA/CEA-861，HDMI-1.3/1.4 |
DP | 1 | DisplayPort 1.1、1.2 |
SDI* | 1 | 480i/60Hz 、576i/50Hz 、720p/60HZ 、1080i/50Hz、1080i/60Hz、1080p/60Hz（3G SDI） |
Output Indicators
Port | Amount | Resolution Standard |
*VGA |
1 | 2K×1K ： 1024×768/60Hz 1280×1024/60Hz 1280×720/50Hz/60Hz 1440×900/60Hz 1600×1200/60Hz 1600×1200/60Hz-Reduced 1680×1050/60Hz 1920×1080/60Hz 1920×1200/60Hz 2048×1152/60Hz 1536×1536/60Hz
2K×2K ： 2560×1024/60Hz 2560×1440/60Hz 3840×1080/60Hz 1920×1080/100Hz 1920×1080/50Hz 2560×816/60Hz 2304×1152/60Hz 1024×1280/60Hz 2560×1600/60Hz 1080×3840/60Hz 1920×1080/120Hz
Customized output resolution（bandwidth optimization）： maximum width is 3840 and maximum height is 3840 |
DVI | 2 | |
DP |
1 | |
SDI* |
1 | 480i/59.94Hz 480i/60Hz 576i/50Hz 720p/50Hz 720p/60Hz 1080i/50Hz 1080i/59.94Hz 1080i/60Hz 1080p/23.94Hz 1080p/24Hz 1080p/25Hz 1080p/29.97Hz 1080p/30Hz 1080p/50Hz 1080p/59.94Hz 1080p/60Hz |
*VGA is 2K x 1K standard resolution, SDI is a expansion port
Unit Specification
Power Supply | 100～240VAC，50/60Hz |
Consumption | 40W |
Operating Temperature | 0~45℃ |
Product Dimension | 482.6 X 304.0 X 88.0mm |
Net Weight | 4.5Kg |
| Weight | 4500 kg |
|---|
