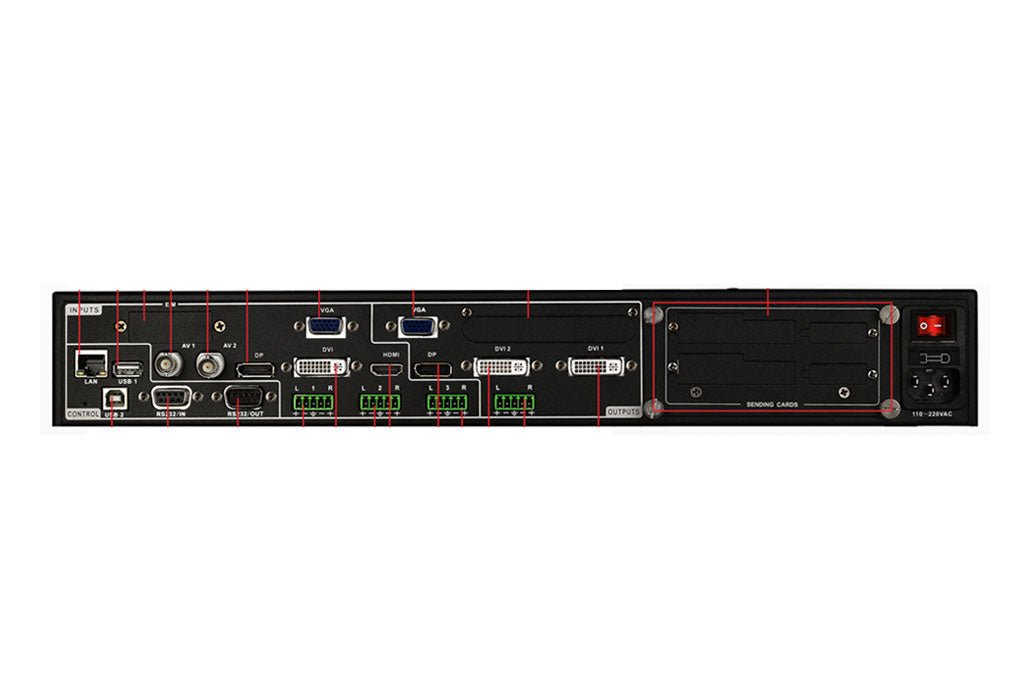

Magnimage LED 580F 4K UHD LED Screen Video Processor is a high performance processor which has various input and output plugs, including Dual link DVI, DVI, HDMI, DP, VGA and CVBS, etc input plugs and audio input output plugs.
LED-580F series video processor supports 4Kx2k input, which can realize pixel to pixel and zoom scaling display with simplifies operating. It supports preview, hot backup, multi-machine cascade, customized output resolution, SDI output, Dual link DVI output, DP output, fade, seamless switch and schedule function.
LED-580F series video processor is used in stage shows, conference, exhibition, press conference, command & control center, surveillance center, stadium, airport.
Functions and features:
580F Video Processor
- Single Machine Supports Pixel to Pixel Splicing within 4K
Two DVI output ports,split function, customized output resolution,this is how LED-580F supports any size of pixel to pixel splicing within 4K.
- Multi-machine 4K*2K Pixel to Pixel Splicing
Using one LED-580F as a main control, another 2 pcs of LED-580F cascading through DP loop,this is a perfect solution for 4K*2K pixel to pixel display.
- Preview Switching
It has a seamless switching from preview to program without black.
- Monitoring
Adding an extended monitor module,LED-580F will transmit signal to the monitor display and realize the real time monitoring.
Technical Specification
Input Indicators
Port | Amount | Resolution Standard |
AV | 2 | PAL、NTSC、SECAM |
VGA | 1 | VESA |
DVI | 1 | VESA |
HDMI | 1 | EIA/CEA-861，HDMI-1.3/1.4 |
DP | 1 | DisplayPort 1.1、1.2 |
SDI* | 1 | 480i/60Hz 、576i/50Hz 、720p/60HZ 、1080i/50Hz、1080i/60Hz、1080p/60Hz（3G SDI） |
Output Indicators
Port | Amount | Resolution |
*VGA |
1 | 2K×1K ： 1024×768/60Hz 1280×1024/60Hz 1280×720/50Hz/60Hz 1440×900/60Hz 1600×1200/60Hz 1600×1200/60Hz-Reduced 1680×1050/60Hz 1920×1080/60Hz 1920×1200/60Hz 2048×1152/60Hz 1536×1536/60Hz
2K×2K ： 2560×1024/60Hz 2560×1440/60Hz 3840×1080/60Hz 1920×1080/100Hz 1920×1080/50Hz 2560×816/60Hz 2304×1152/60Hz 1024×1280/60Hz 2560×1600/60Hz 1080×3840/60Hz 1920×1080/120Hz
Customized output resolution（bandwidth optimization）： maximum width is 3840 and maximum height is 3840 |
DVI | 2 | |
DP |
1 | |
SDI* |
1 | 480i/59.94Hz 480i/60Hz 576i/50Hz 720p/50Hz 720p/60Hz 1080i/50Hz 1080i/59.94Hz 1080i/60Hz 1080p/23.94Hz 1080p/24Hz 1080p/25Hz 1080p/29.97Hz 1080p/30Hz 1080p/50Hz 1080p/59.94Hz 1080p/60Hz |
*VGA only support 2K×1K resolution
Unit Specification
Power Supply | 100～240VAC，50/60Hz |
Consumption | 40W |
Operating Temperature | 0~45℃ |
Product Dimension | 482.6 X 301.3 X 66.8mm |
Packing Dimension | 555.0 X 430.0 X 145.0mm |
Net Weight | 4.5Kg |
Gross Weight | 6.5Kg |
LED-580F Series
Model | Input | Extended Input | Extended Output | Remark |
LED-580F | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 |
|
|
|
LED-580FS | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | SDIx1 |
|
|
LED-580FD | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | DVIx1 |
|
|
LED-580FV | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | VGAx1 |
|
|
LED-582F | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 |
| DVIx2(DVI3,DVI4) | DVI3=DVI1；DVI4=DVI2 |
LED-582FS | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | SDIx1 | DVIx2(DVI3,DVI4) | DVI3=DVI1；DVI4=DVI2 |
LED-582FD | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | DVIx1 | DVIx2(DVI3,DVI4) | DVI3=DVI1；DVI4=DVI2 |
LED-582FV | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | VGAx1 | DVIx2(DVI3,DVI4) | DVI3=DVI1；DVI4=DVI2 |
LED-583F | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 |
| VGAx1(Extended)+DVIx1(Extended) | VGA(Extended)= DVI(Extended)=(DVI1+DVI2 Scaled) |
LED-583FS | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | SDIx1 | VGAx1(Extended)+DVIx1(Extended) | VGA(Extended)= DVI(Extended)=(DVI1+DVI2 Scaled) |
LED-583FD | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | DVIx1 | VGAx1Extended)+DVIx1(Extended) | VGA(Extended)= DVI(Extended)=(DVI1+DVI2 Scaled) |
LED-583FV | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | VGAx1 | VGAx1(Extended)+DVIx1(Extended) | VGA(Extended)= DVI(Extended)=(DVI1+DVI2 Scaled) |
LED-585F | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 |
| SDIx1(Extended) | SDI Extended=(DVI1+DVI2 Scaled) |
LED-585FS | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | SDIx1 | SDIx1(Extended) | SDI Extended=(DVI1+DVI2 Scaled) |
LED-585FD | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | DVIx1 | SDIx1(Extended) | SDI Extended=(DVI1+DVI2 Scaled) |
LED-585FV | AVx2;VGAx1;DVIx1;HDMIx1;DPx1 | VGAx1 | SDIx1(Extended) | SDI Extended=(DVI1+DVI2 Scaled) |
Accessories
Instruction X 1 Power Cable X 1 AV CableX 1 Disk X 1
RS232 Serial Cable X 1 Screw X 4 DVI Cable X 1 Certification X1
USB Cable X1 Disk X 1 Audio Port X 4 Copper Bar X 4 DP Cable X 1
DP-Mini DP Cable X 1
| Weight | N/A |
|---|
