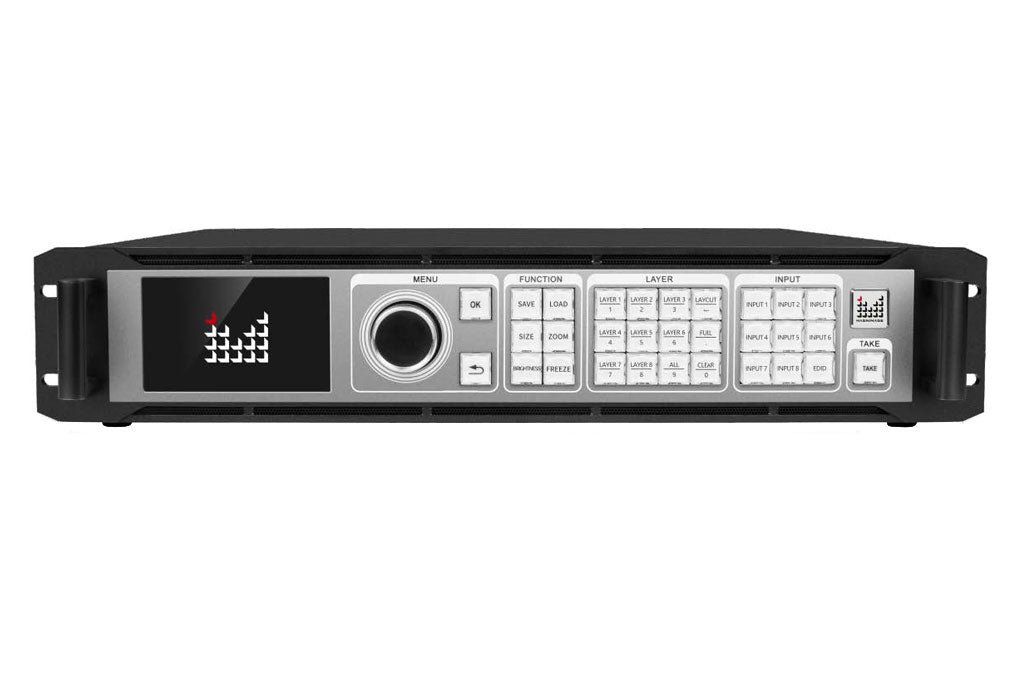

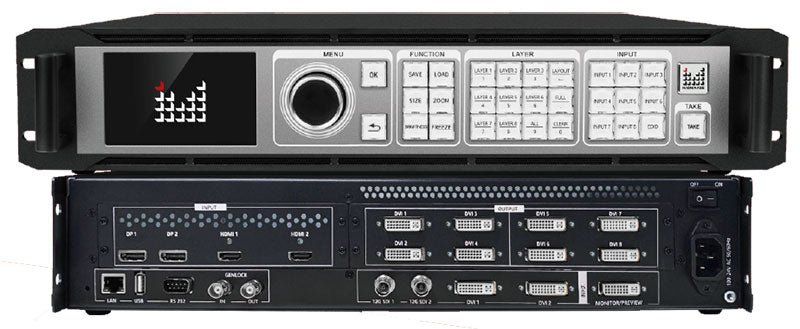

Magnimage MIG-EC40 4K Switcher Multi-Screen Splicing Processor LED Video Processor

MIG-EC40 Series product is LED video processor developed for display system, using industry’s top image processing chip,24 bit digital processing, and 4K/60Hz 4：4：4 image processing technology. These makes image more clearer and colorful, builtin
4K and 2K matrix can support fade switch between multiple 4K and 2K inputs.
Advanced interfacing motion image adaptive processing technology, eliminate video image motion trailing and jagged problem, makes the output more clear and delicate. Rich video interface which support 8 UHD video input interface including DP1.2, HDMI2.0, 12G SDI and DVI.
MIG-EC40 is equipped with one touch screen for quick menu browsing and parameter adjustment, Knobs and buttons can accurately adjust various parameter of layers. It’s very popular for rental events for the small size, powerful function and
convenient use.

• Switcher Mode: 4 Program output, support 4 layers, layer size and position freely change
• Moasaic Mode: 8 Output, each output support 4K1K@60Hz, max mosaic to 16K*2K@60Hz Support 4K*2K/60H 4:4:4 input
• Support HDCP1.4&2.2
• 1 Multi-window preview, preview input signal, real-time monitoring output, custom layout
• 8 Mixed matrix input, multiple 2K/4K input
• Background picture capture
• Input EDID management
• Image Crop, Layer Zoom
• Support external synchronization, Multi-cascade mosaic
• Touch screen control
• 20 presets save and Load
• Hot backup

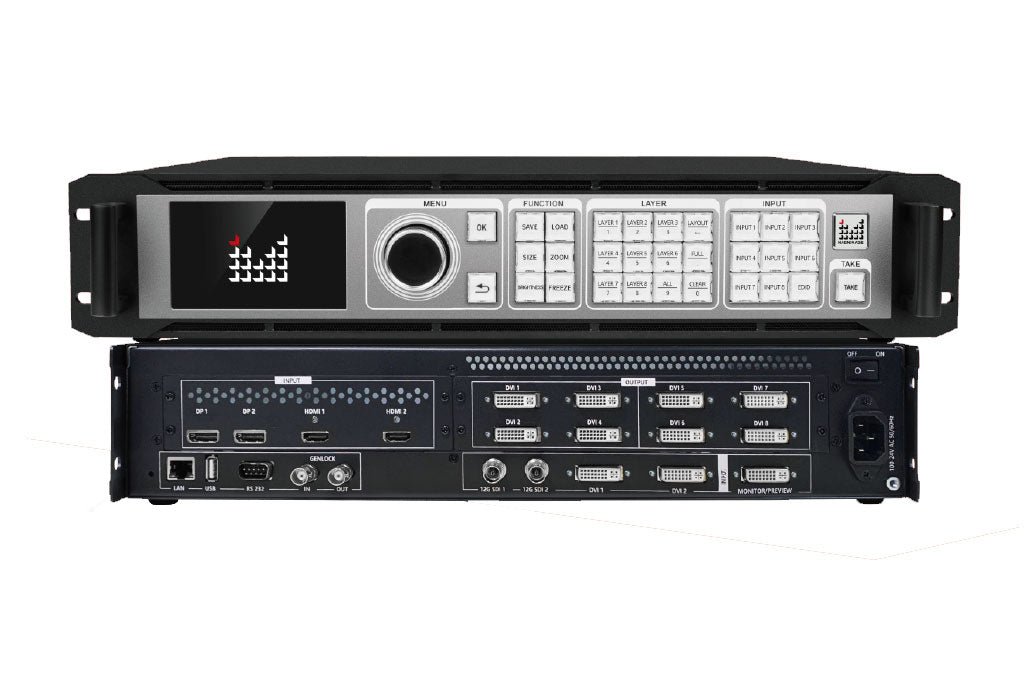

LED Video processor Diagram

MIG-EC40 Multi-Screen Video Switcher

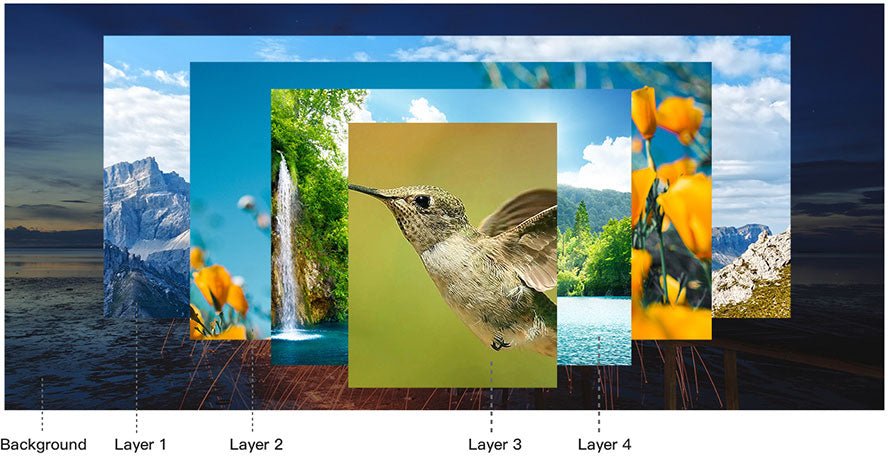

Four-layer Seamless Switching
Under switcher mode, it supports 4 main outputs and 1 multi-preview;
The main output supports 4 layers of arbitrary roaming and 1 background
Supports 4-layer and 4-layer fade-in and fade-out switching

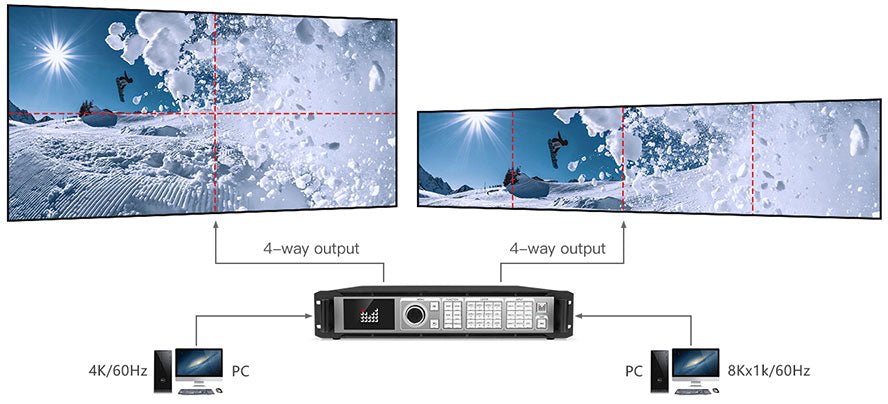

4K Signal Segmentation and Distribution
Split multi-channel 4K input into multi-channel 2K signal splicing output
Re-integration into the regular 2K system

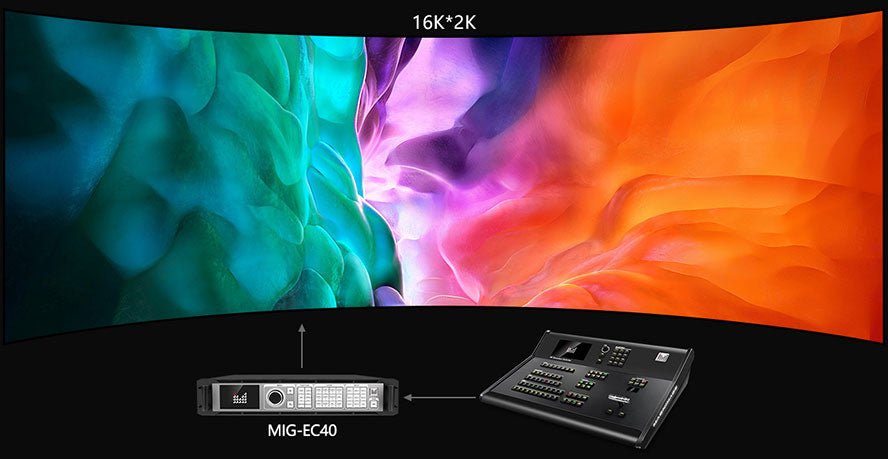

Super High Resolution Mosaic Function
Under mosaic mode, support 8-channel output mosaic With EC90, T4S and other equipment, it can realize LED mosaic display and multi-window, multi-scene switching within the range of 16Kx2K pixels

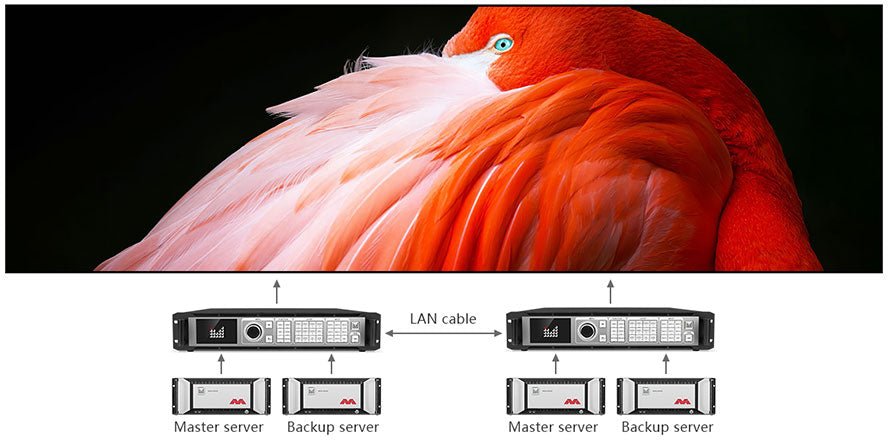

Input Signal Hot Backup
Supports master/received switching of single-machine input and multi-machine synchronous switching to achieve perfect backup of activities

Support 12G SDI Input
It can transmit standard 4K@60Hz video signal input without loss, so that the picture quality is more guaranteed, and it can meet the high-demand video signal transmission needs of the broadcasting and television industry.

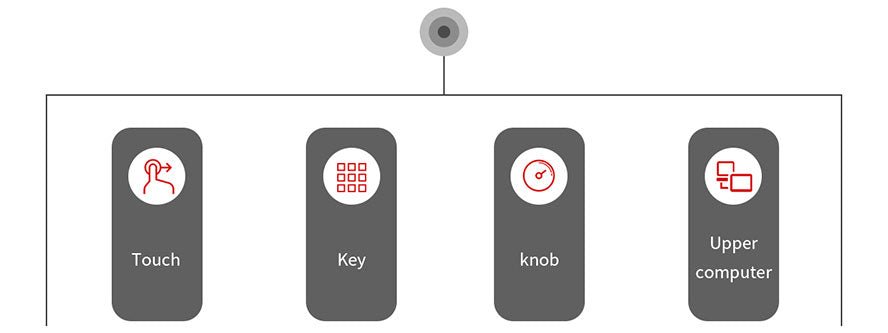

Various Control Methods
Support touch, buttons, knobs, and software control methods

Technical Parameters

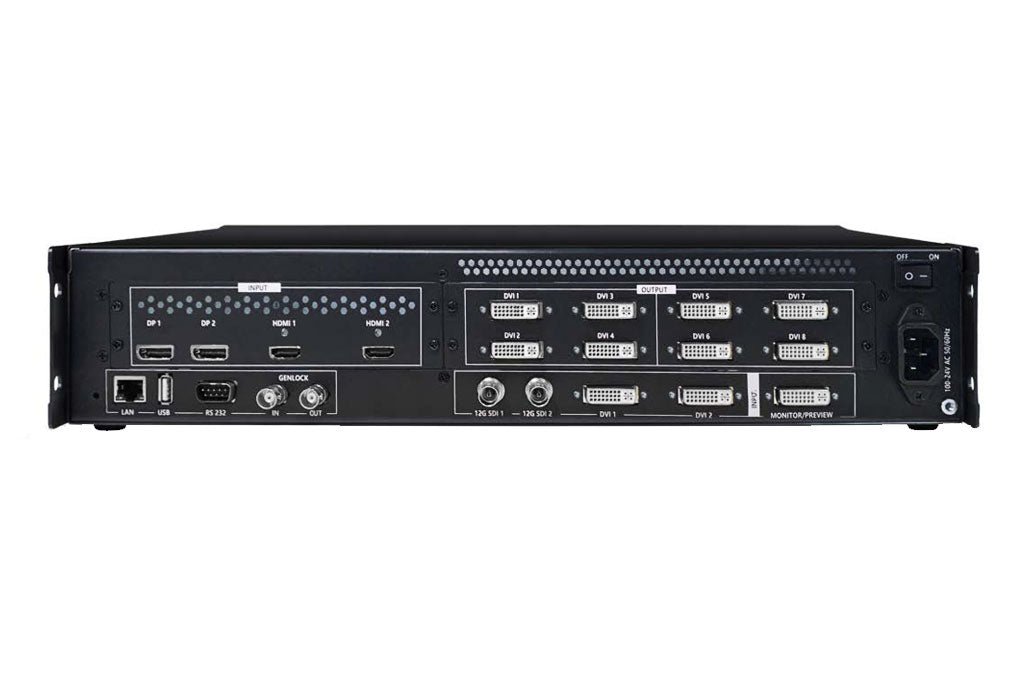

Inputs

Outputs

Whole machine specifications

Further Information:
MIG-EC40
Magnimage MIG-EC40 LED Video Processor Specification
