Magnimage MIG-EH8000 Video Console Led Event Screen Stage Console

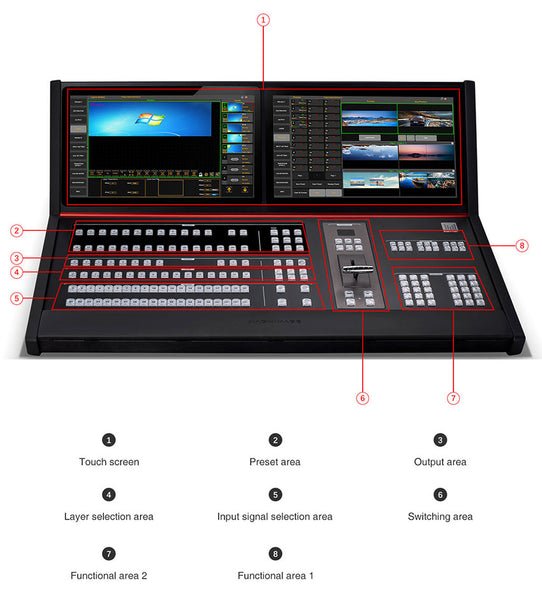

MIG-EH8000(MIG-H8) is the latest Magnimage large video console with a high performance CPU whose processing performance is very powerful.Equipped with two 18.5-inch HD touch screens, which can easily switch among inputs and outputs, setup Layers, target scene and real time target presets monitoring seamlessly.
With MIG-EH8000(MIG-H8), you can save 300 presets; T-BAR switching, multiple switching effects optional; controlling multiple switchers such as MIG-VS, MIG-ES8000(MIG-V8) and MIG-VS; it is a perfect video control device for large conferences, interactive performances, concerts and other activities.

Functions and features:

Magnimage MIG-EH8000 Video Console

• Preview input signal real time

Under INPUT interface, monitor all input signals, backup all input signal name,and modify EDID information and image crop.

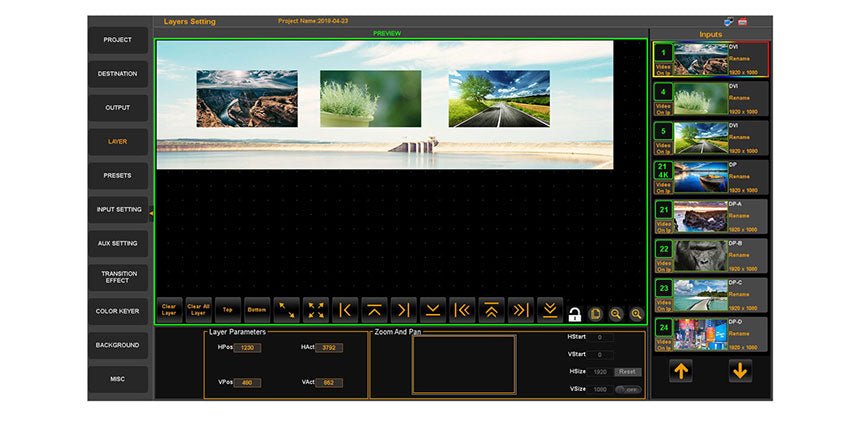

• Modify the size of layers

Under LAYER interface, works with controller buttons to modify the size,ZOOM and position of layers via clicking and dragging .

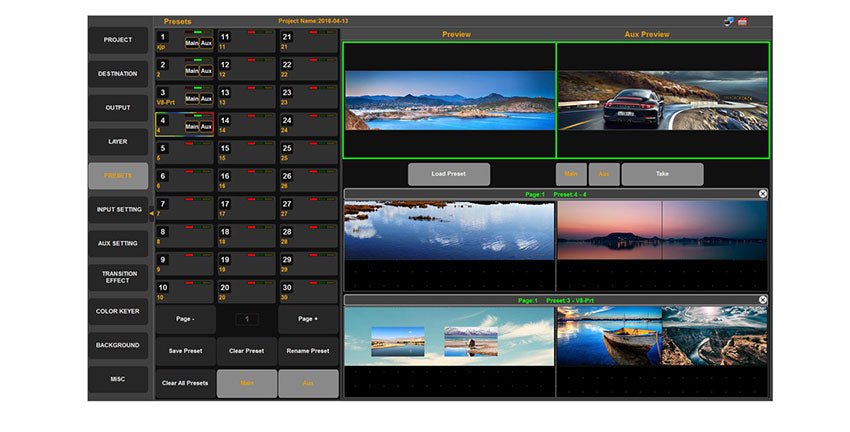

• Save、Load and Monitor presets

Under PRESETS interface, save and load presets, included main output Preview and Aux Preview.Besides that, provide 2 areas for Live preview, support to drag the preset to this area to monitor directly.

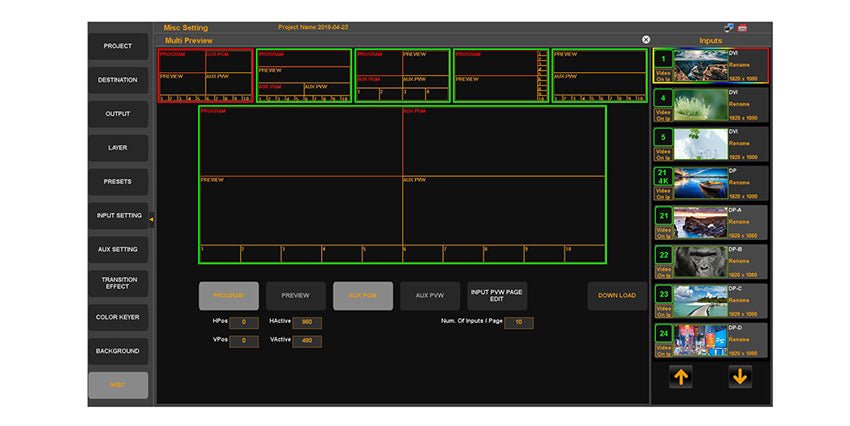

• Customized multi-preview interface

For the multi-preview function of ES8000, ES6000, in the AUX preview page of the MISC(consoler menu), there are preview for program outputs, program outputs preview, AUX outputs, AUX outputs preview and input signals, totally 5 basic modules. Users can set these module to any size and position, on or off to realize customize multi-preview setup. Besides, there are 4 templates of the multi-preview, as quick options.

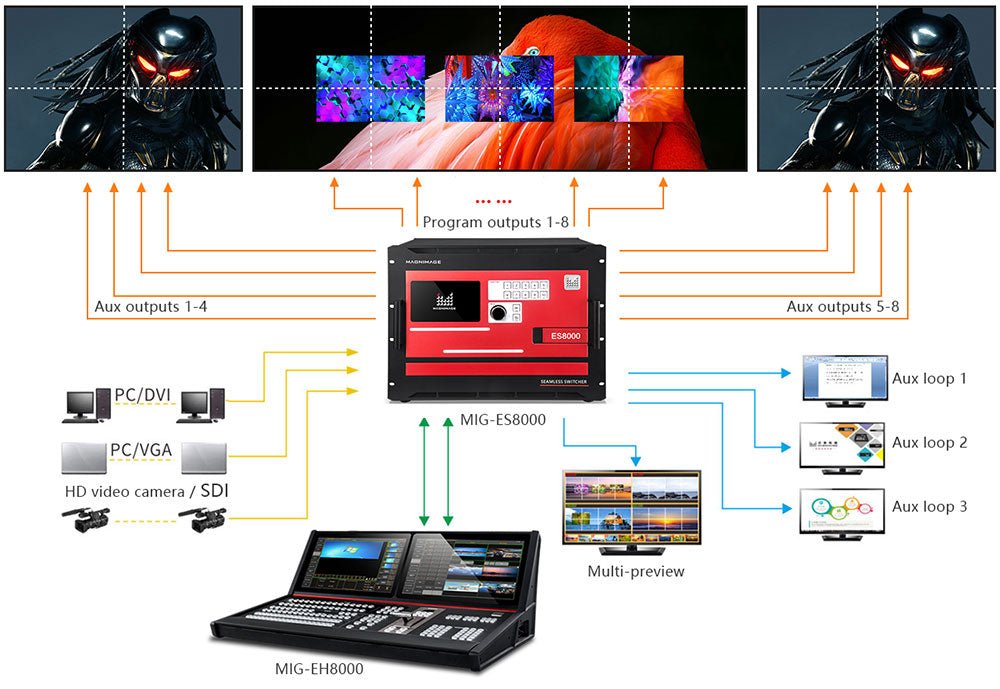

• EH8000 cooperates with ES8000

• EH8000 cooperates with ES6000

Specification
Power Supply:100-240V AC 50/60Hz
Consumption:120W
Operating Temperature:0~45℃
Product Dimension:953.9×617.3×369.5mm
Net Weight:31.5Kg

Accessories

Instruction X 1 Power Cable X 1 DVI Cable X 1 USB X1
Certification X1 LAN Cable X 2 Gooseneck Lamp X 2
