Magnimage Mach Series LED Receiving Card LED-M200T M80T High-End Extra large band load

M200T/M80T is a small pitch receiver card launched by Magnimage, with high precision interface, single card with maximum 320K (640*540)/192K (384*512) pixels, supporting up to 32 groups of RGB parallel data, maximum 120 sweeps, and supporting point by point brightness chroma correction, fast bright and dark line repair, bandwidth expansion, free alignment, no upgrade without dead card, RGB custom Gamma adjustment, support module Flash management, support for intelligent modules, support for module auto-correction, color restoration, precision gray control, contour smoothing (18bit+, 22bit+), HDR function, ultra-low latency, 3D display, etc.,Up to 2.2 million (2048*1080) pixels on a single port when using Mach mode with Mach series transmitters. in order to ensure the reliability of the display effect, more stable and reliable, with CLINK software.

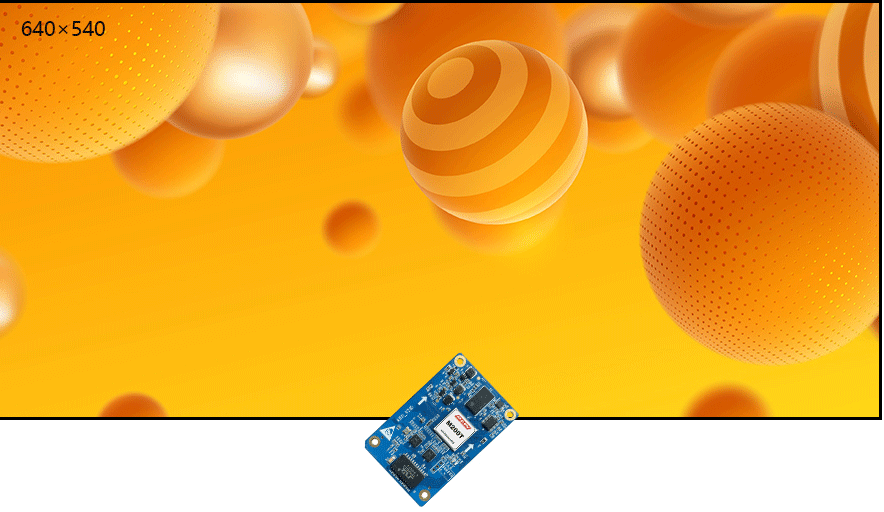

• Extra large band load

Single card carry load 320K, single card can meet P0.9 single cabinet carry load demand (Cabinet size: 600mmX337.5mm)

• Double correction factor

LED screen to achieve low gray, high brightness two sets of correction coefficients used at the same time, can effectively enhance the display in low gray and high brightness, brightness and uniformity

• Supports 22bit+ contour smoothing

Effectively improve the problem of serious gray scale loss at low brightness, especially for improving the dark details of images, thus enhancing the display quality of LED screens

• Precise gray control

Since LEDs and driver cores cannot achieve ideal linear output, and red, green, and blue LEDs usually exhibit different nonlinear characteristics, resulting in a skewed display at low grayscale or low brightness.
Relying on the precision gray control function, the 16-bit 65536-level grayscale output from the driver chip is intelligently analyzed and precisely calibrated with the help of a professional color analyzer, and a calibration component is generated for each display model.
With the professional color analyzer, the 16-bit 65536-level grayscale output of the driver chip is intelligently analyzed and precisely calibrated, and the calibration control is generated for each display, so that the display can accurately and truly display grayscale and color under different brightness.

• Color Restoration

Converts the original LED color gamut to the target color gamut with one click, thus eliminating the color deviation between the playback source and the display terminal.

The target color gamut supports Rec.2020, Rec.709, DCI-P3, Display-P3, PAL, NTSC standards.It can also adjust the display according to the color gamut of the video source or the user’s preference to make the LED color closer to what is really seen.

• HDR10/HLG

With a larger color gamut, more saturated color depth, and a wider brightness range, HDR technology makes colors more vivid and closer to what the human eye sees.

• Ultra-low latency

0 fps on the transmitter card and 0.5 fps on the receiver card, effectively reducing the delay between the video source and the screen, and greatly avoiding the problem of unsynchronized video.

Model:M200T/M80T
Interface:120PIN
Bandwidth:320K(640*512)/192K (384*512)
RGB parallel output:120 groups
Contour smoothing 22bit+: ×/√
