Magnimage MIG-F4-1U Multi-Screen Splicing Processor 4K Mosaic Box LED Video Processor

Name: Magnimage MIG-F4-1U Multi-Screen Splicing Processor 4K Mosaic Box LED Video Processor
SKU: 8765457662179
Availability: InStock

Price range: $800.00 through $850.00

SKU: 8765457662179 Category: Uncategorized Tags: LED Display Controller, LED Video Processor, Magnimage, Mig-F4

MIG-F4-1U series 4K video splicing box is a new mini video splicing device launched by Maipu Vision. It features powerful, single-machine four-splicing, intelligent control and automatic backup. It supports DP and HDMI multi-input interfaces. Single input supports up to 4Kx2K/60Hz 4:4:4; supports 8K x1K/60Hz input and supports backward compatibility; stylish and easy to use, suitable for various multi-screen applications.

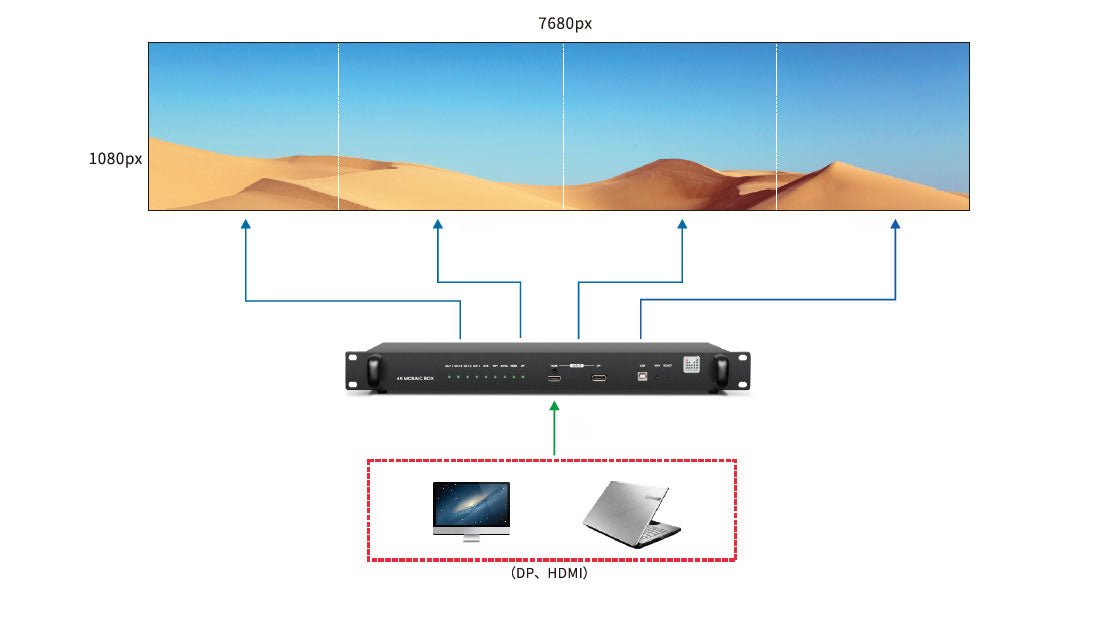

Mosaic application 1

Support horizontal pixel to pixel display in 7680 pixel, or upscale horizontal display in 11600 pixel.

Mosaic application 2

Support 4K*2K/60 Hz 4:4:4 input by DP or HDMI for pixel to pixel display.

8K x 1K / 60Hz input

Support super large resolution 8K×1K/60Hz pixel to pixel input and output display.

Layer zoom function

Zoom different parts of one 4K*2K input source(with different contents) and display them on different screen.

Same input source to 4 outputs

For 4 screens of different size, you can customize each output’s resolution and send the same input source to these screens.

Edge blending mosaic

Single MIG- F4 support up to 4 projectors blending. All the position, size and Gamma of blending area can be adjusted.

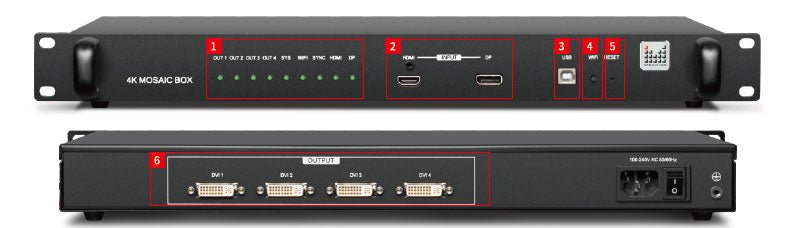

Magnimage MIG-F4 series 4K video mosaic box Features:

1.Single machine four stitching

2.Input DP×2, HDMI×2

3.Single input support 4K × 2K / 60Hz 4: 4: 4

4.8K x1K/60Hz input

5.Support EDID management function

6.Output support DVI × 4 or HDMI × 4

7.Support for custom output resolution

8.Single machine with 9 million pixels

9.Support input backup function

10.Multi-machine synchronous stitching

11.Preset save and call

12.Image capture, layer ZOOM function

13.Edge blending

14.Support computer host computer control, Android APP wireless control

15.Bring your own WIFI hotspot

Technical Specification

Input parameter

Port	Quantity	Resolution specifications
DP	2	DP 1.2 support 3840*2160/60Hz and customized resolution
HDMI	2	HDMI 2.0 support 3840*2160/60Hz and customized resolution

Output parameter

Port	Quantity	Resolution specifications（Single DVI output ）
DVI/HDMI	4	Single output port resolution： 1024×768 /60Hz 1366 ×768 /60Hz 1440×900 /60Hz 1280×1024 /60Hz 1680×1050 /60Hz 1600×1200 /60Hz 2560×816 /60Hz 1440 ×1440 /60Hz 1920×1080/60Hz and customized. Widest 2900, highest 2160.

Product accessories

Power cable ×1 Power adapter ×1 U-disk ×1 Square mouth USB cable ×1 Certificate of qualification ×1 User manual ×1

Magnimage MIG-F4-1U 4K Video Splicer

MIG-F4-1U series 4K video splicing box is the latest mini video splicing device launched by Magnimage, with powerful, stand-alone quad splicing, intelligent control, etc.; supports DP and HDMI input interface; single input maximum support 4K x 2K/60Hz 4:4:4; DP supports 8K x 1K/60Hz input, and supports backward compatibility. It is fashionable, easy to use and suitable for a variety of multi-screen applications. Magnimage MIG-F4-1U 4K Video Splicer
