Meanwell LRS-200E Series LRS-200E-5 LED Displays Power Supply

Name: Meanwell LRS-200E Series LRS-200E-5 LED Displays Power Supply
SKU: 8765442752739
Availability: InStock

Original price was: $42.00.Current price is: $26.00.

SKU: 8765442752739 Category: Uncategorized Tag: LED Displays Power Supply

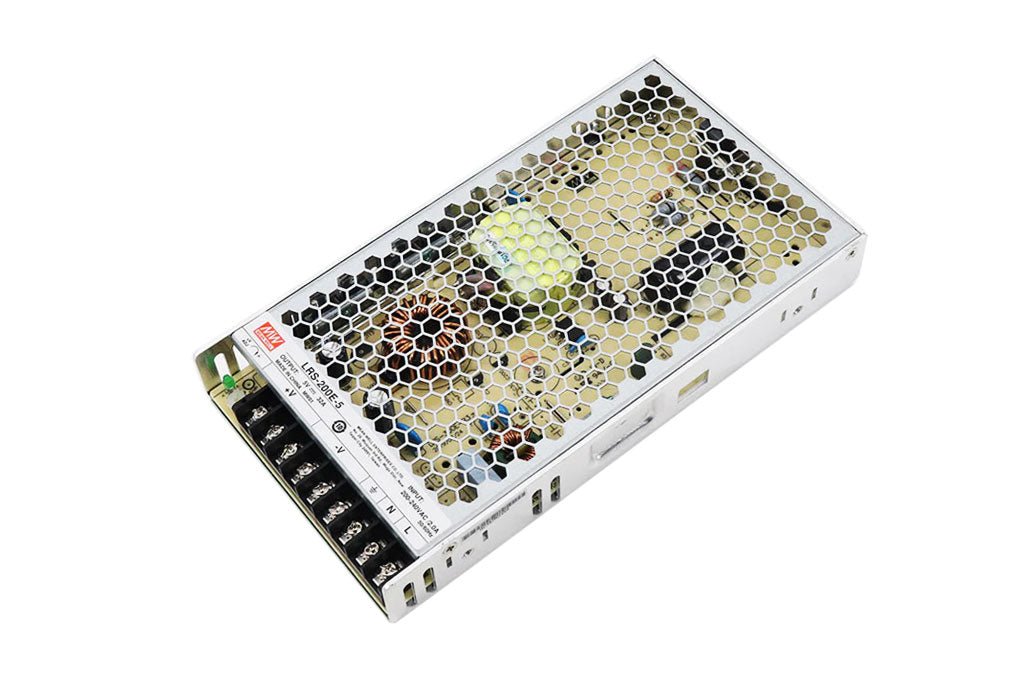

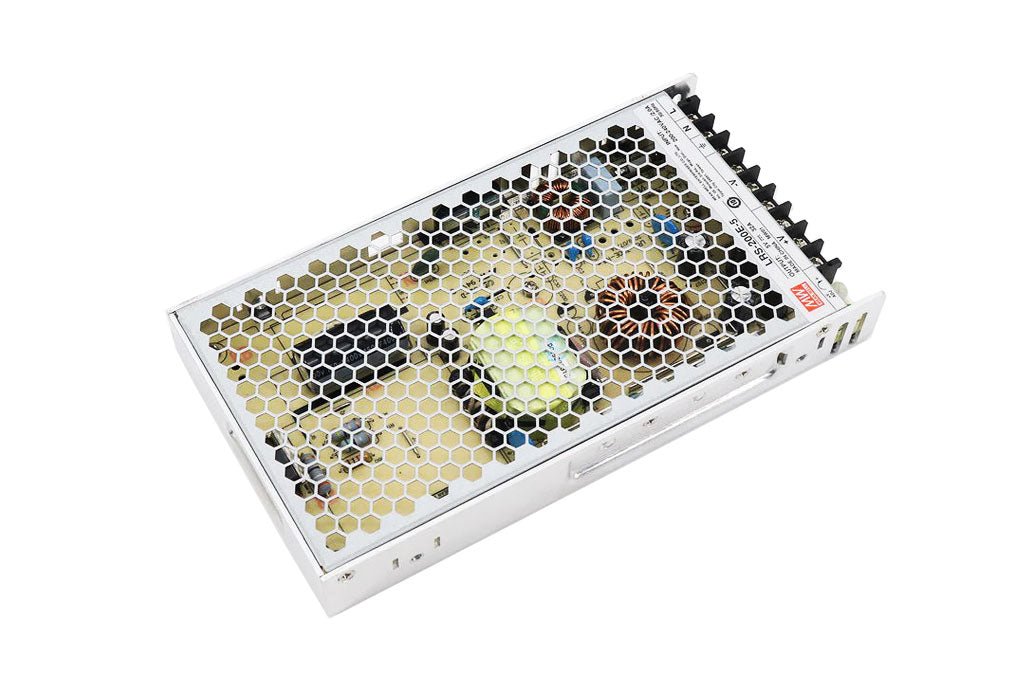

Meanwell LRS-200E Series LRS-200E-5 LED Displays Power Supply

LRS-200E series is a 200W single-output enclosed type power supply with 30mm of low profile design.Adopting the full range 180~264VAC input,the entire series provides an output voltage line of 5V/4.2V.

AC input 180~264VAC
Protection type: short circuit/overload/overvoltage
Height only 30mm
LED power indicator
Low cost, high reliability
100% full load aging test
1 years warranty

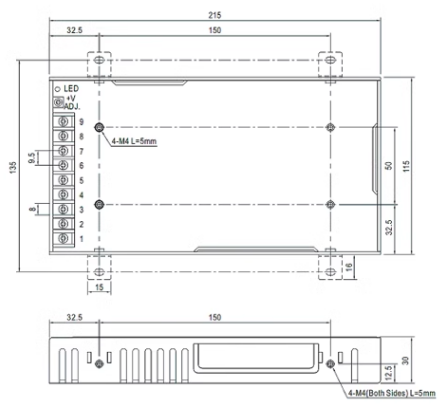

Meanwell LRS-200E Series LED Displays Power Supply Mechanical Specification

Meanwell LRS-300E Series LED Displays Power Supply

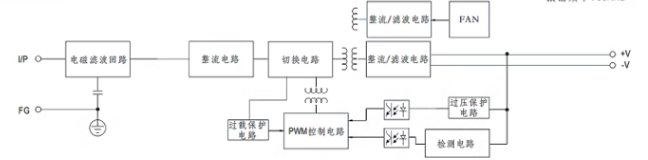

Meanwell LRS-200E Series LED Displays Power Supply Block Diagram

Meanwell LRS-200E Series LED Displays Power Supply Installation Meanwell HSP-200 Series LED Displays Power Supply
Meanwell LRS-200E Series LED Displays Power Supply Specification

Overload protection: Rated output power of 110 to 140% protection mode: Hiccup mode, exception conditions removed automatic recovery
Overvoltage protection: Protection mode: Hiccup mode, exception conditions removed automatic recovery
Over temperature protection: Hiccup mode, exception conditions removed automatically after restore
Working temperature: -25 ~ + 70 ℃ (refer to the “derating curve”)
Humidity: 20 ~ 90% RH, non-condensing
Storage temperature and humidity: -44 ~ + 85 ℃, 10 ~ 95% RH
Temperature Coefficient: + -0.03% / ℃ (0 ~ 50 ℃)
Size: 215 * 115 * 30mm (L * W * H)
