Meanwell LRS-300E Series LRS-300E-5 LRS-300E-4.2 LED Displays Power Supply
LRS-300E series is a 300W single-output enclosed type power supply with 30mm of low profile design.Adopting the full range 180~264VAC input,the entire series provides an output voltage line of 5V,4.2V.
- AC input 180~264VAC
- Protection type: short circuit/overload/overvoltage
- Height only 30mm
- LED power indicator
- Low cost, high reliability
- 100% full load aging test
- 1 years warranty

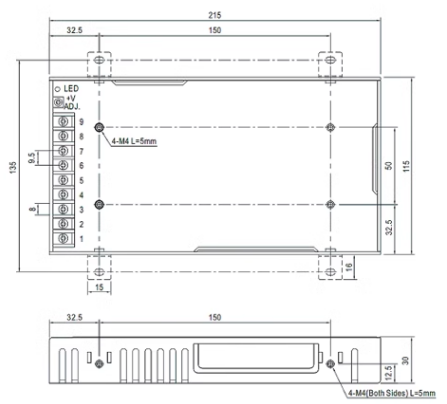

Meanwell LRS-300E Series LED Displays Power Supply Mechanical Specification

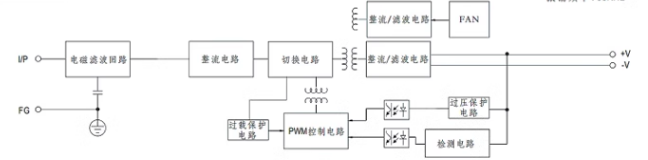

Meanwell LRS-300E Series LED Displays Power Supply Block Diagram

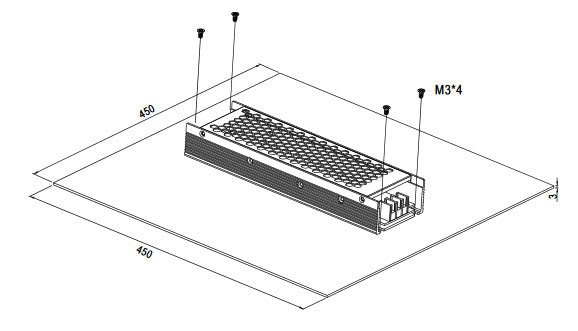

Meanwell LRS-300E Series LED Displays Power Supply Installation

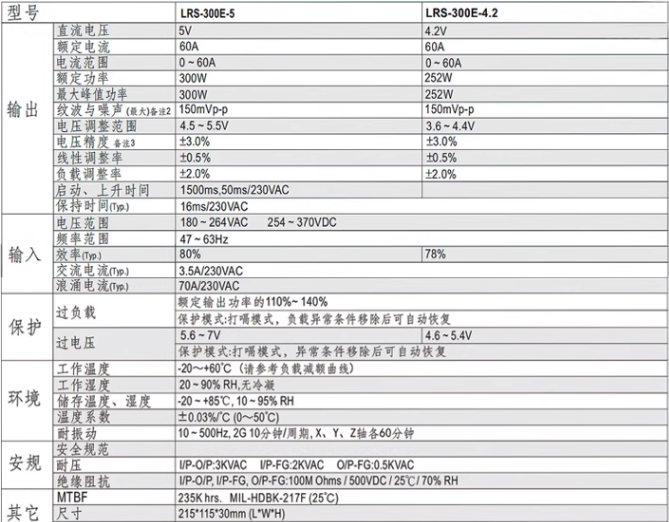

Meanwell LRS-300E Series LED Displays Power Supply Specification
| Weight | N/A |
|---|
