Amoonsky MG Series 2K 4K Distributed Processors All-In-One LED Decoder AV over IP System

Novastar MG Series 4K / 2K Distributed Processors AV over IP System

The MG series AV over IP system is a digitized distributed image processing and control system based on network. In the system, the encoders collect multiple audio and video signal sources scattered in different locations and transcode them into IP streams. The decoders receive the streams and display the corresponding information on the display devices to realize network sharing of audio and videos.
Adopting the H.264 and H.265 transmission protocols, the MG series system utilizes low network bandwidth and provides low-latency and high quality audio and video experience. Breaking the limitations of the traditional centralized deployment, the system is suitable for the decentralized deployment of audio and video interconnection applications across regions and networks.
The MG series system integrates long-distance digital audio and video transmission, signal switching, KVM operator and screen management. Working with the distributed visual management system and distributed KVM collaboration system, the MG series system can be applied in various visual application scenarios, such as control rooms, large conference communication centers,monitoring centers, data centers and dispatch centers.

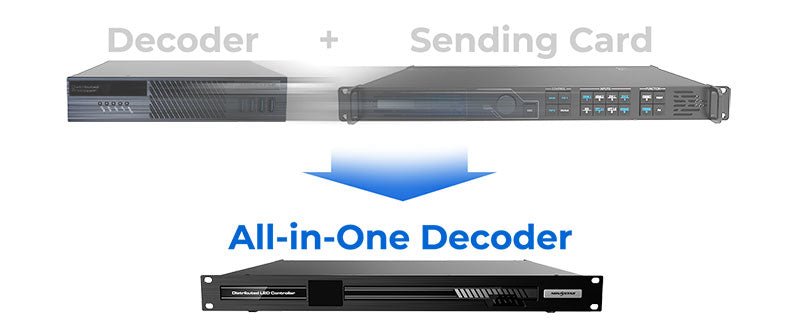

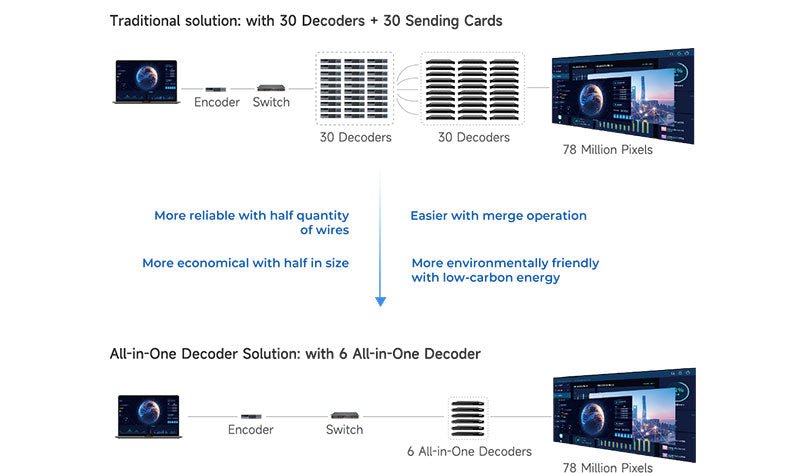

• All-in-One Highly Integrated
  No need multiple devices

The decoder and sending card are highly integrated, with 13 million pixels loading capacity *,supports arbitrary cabling and splicing.

• Nanosecond Synchronization
  Professional Splicing with No-tearing

Creating professional nanosecond synchronization that truly stands the test of the naked eye and camera by NetSync plus NovaSync double synchronization, professional splicing with no-tearing.

• High Image Quality True 4K
  More Dynamic

Full link 4K@60Hz, low latency with easier operation.
10bit 4:4:4 excellent image, smoother grayscale gradient and better maintained the original color saturation.

• Secure system with Decentralized
  Not Afraid of Single Point Affect Whole System

The system is decentralized without central server and it can be operated even exposed to minor damage which is more stable and secure.

• Customize Input and Output
  More Economical and More Free

Powerful input EDID management, output timing management, breaking through the conventional resolution limits,the Max Width up to 16384*, the Max Height up to 8192.

• Super Resolution Splicing is More Convenient

Mosaic Display Frame-level Synchronization
Multi-card source splicing, super high resolution visualization ultra HD display.

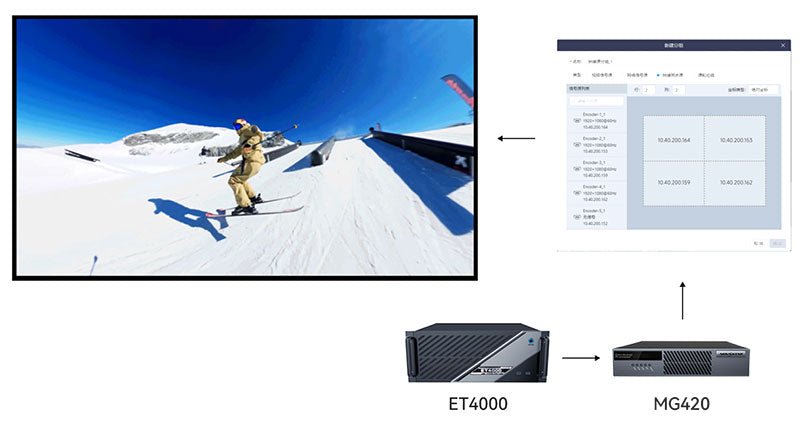

• Preset Playback Source Layer Playback
  A Variety of Playback

Source Layer Playback supports cycle playback;
Preset playback supports preset timing playback and cycle playback.

More Functions
Visual Operation  |  Multi-function KVM  |  Image Border   |  Compensation Correction
Multiple Backup  |  Multi-level Management   |  Full-color Subtitles  |   Network Interconnection   |  Unlimited Capacity Expansion  |   Device Name Search   |   Marker Setting   |   Pad Reverse Control    |   Open Control Protocol   |   USB Flash Drive Transmission    |    KVM Resolution Settings    |   Soft Keyboard, Touch Screen
*The maximum loading capacity of MGT2000 is 13 million; the maximum loading capacity of MGT1000 is 6.5 million; the maximum loading capacity of MGT600 is 3.9 million.
*The maximum width of MGT2000 is 16384, and the maximum height is 8192; the maximum width of MGT1000/MGT600 is 10240, and the maximum height is 8192.

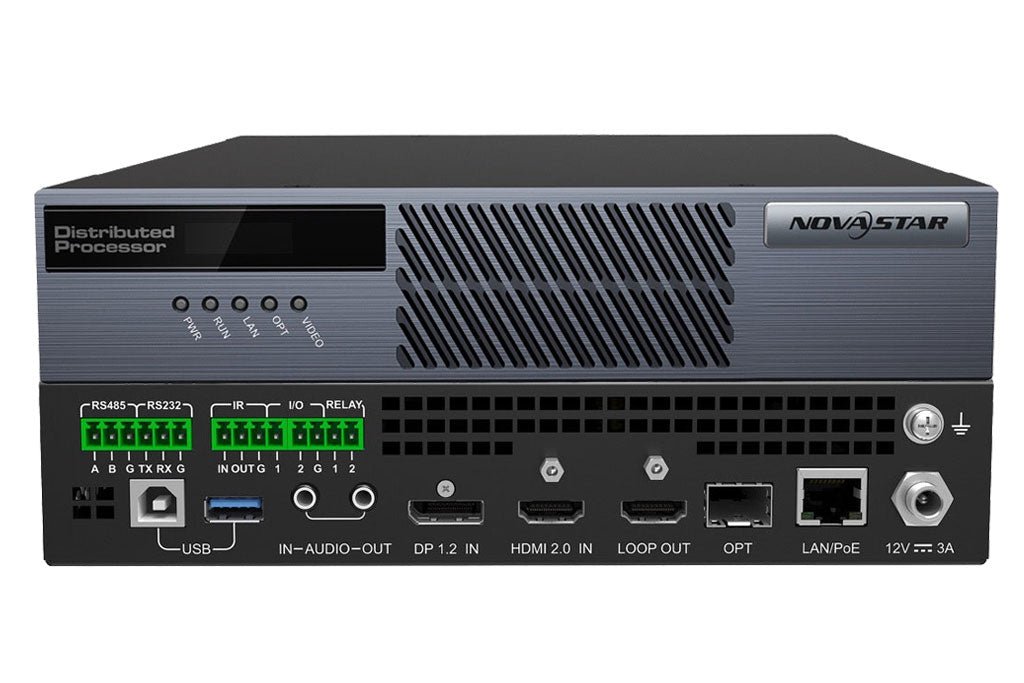

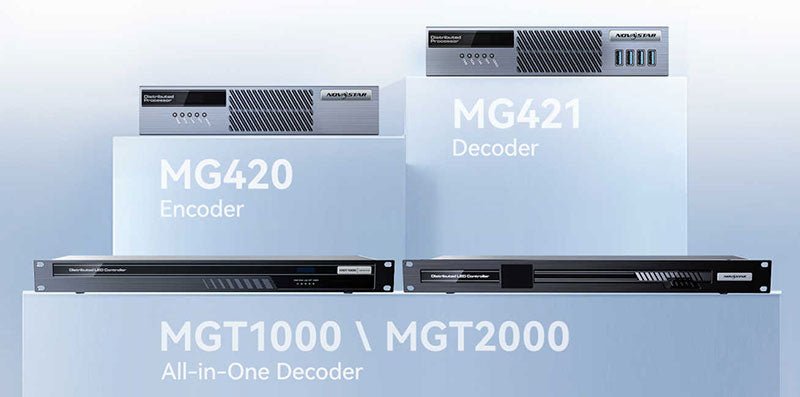

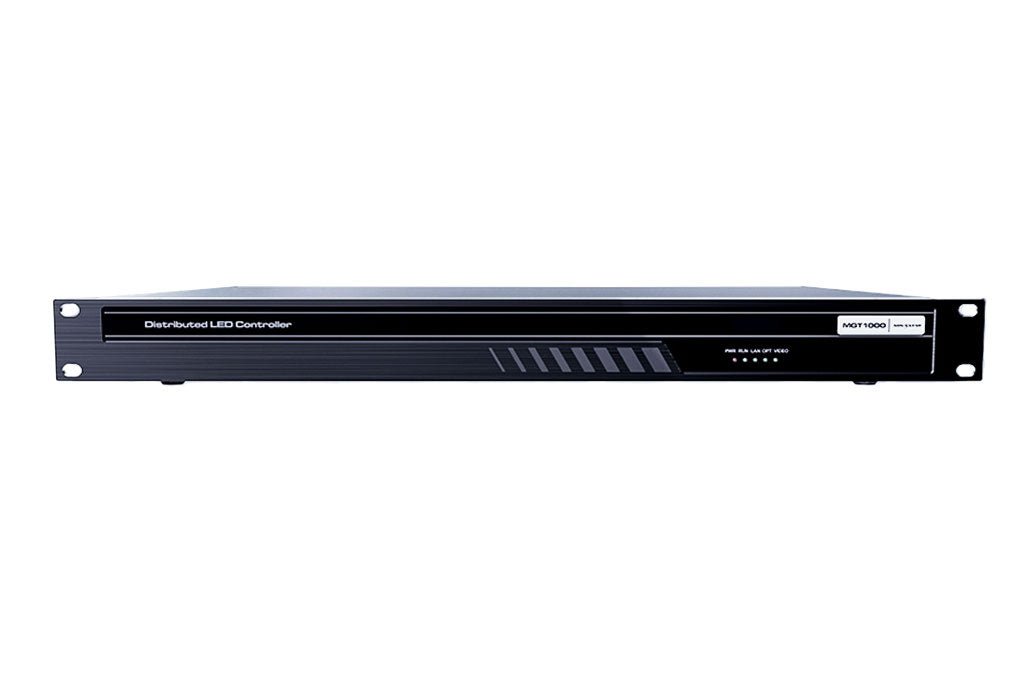

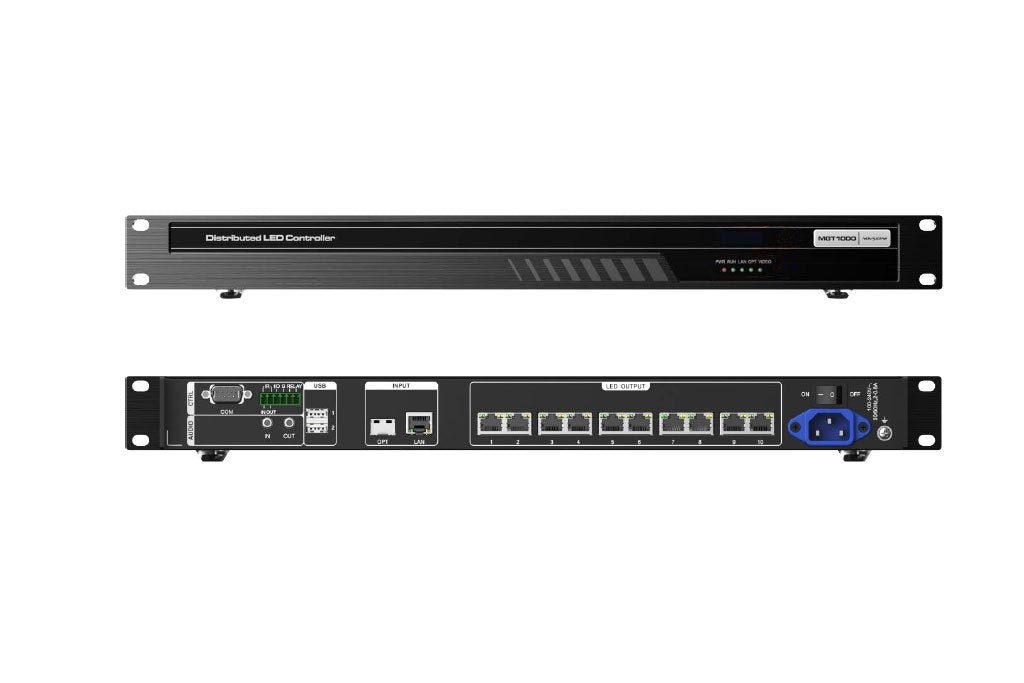

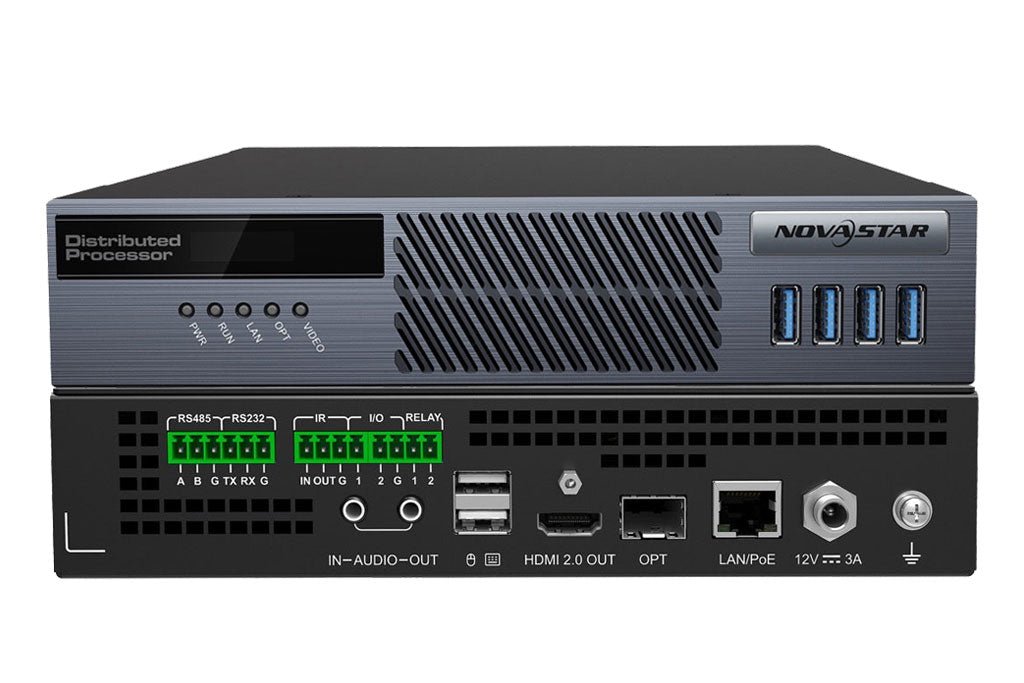

Novastar MG Series 4K / 2K Distributed Processors Appearance

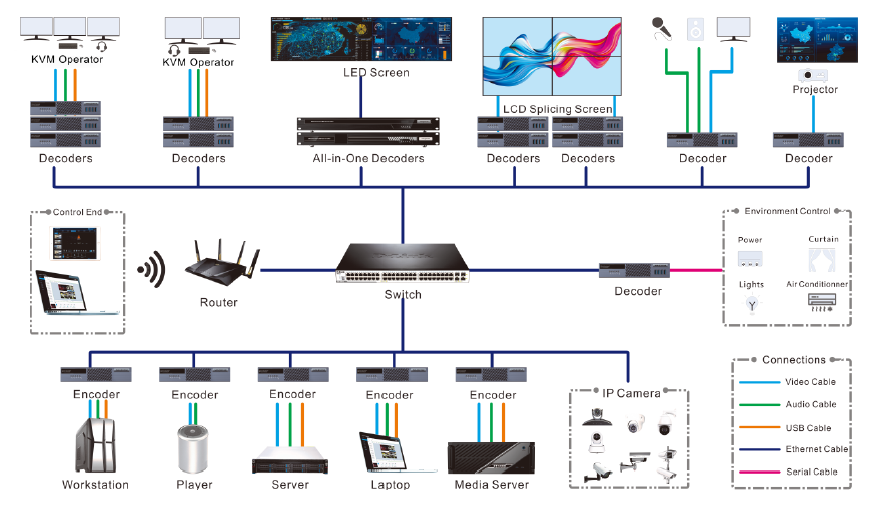

Novastar MG Series 4K / 2K Distributed Processors Working Diagram

Further Information:
MG420/MG421/MGT1000/MGT2000
Novastar MG Series 4K Distributed Processors Specification
Novastar MG Series 4K Distributed Processors User-Manual
