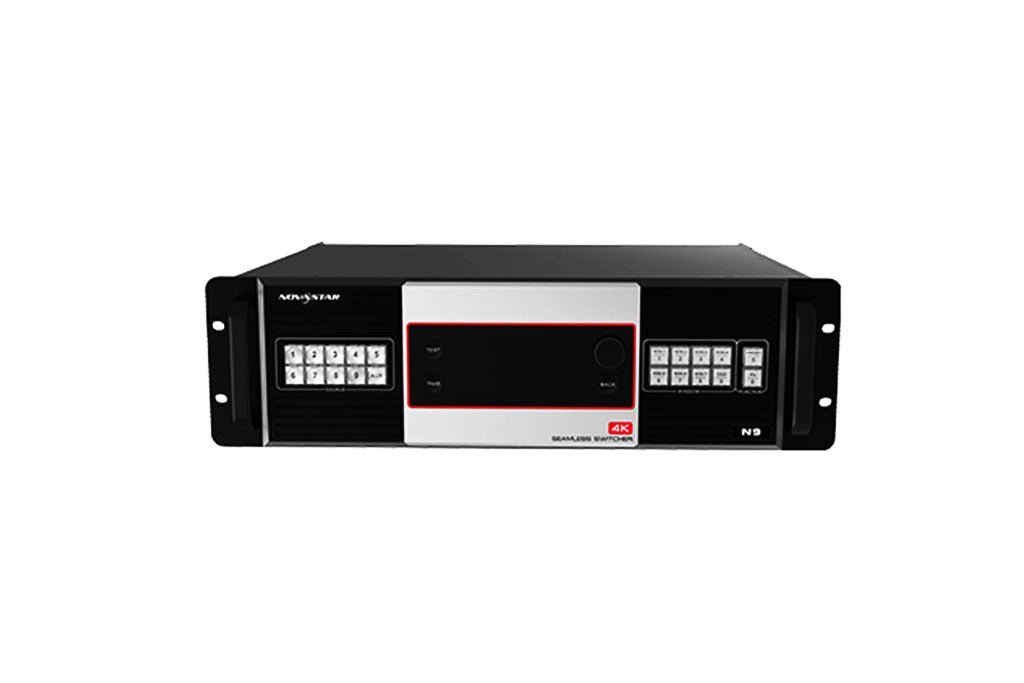

Novastar N9 is a high-performance multi-screen video switcher independently developed by NovaStar. Using high-performance video processing technologies, it is capable of processing and outputting ultra-high quality images. The NX also provides powerful video signal receiving capability. It can support 9 inputs and 4 DVI outputs at the same time. A single N9 can load up to an 8KK screen, and multiple NX units can be cascaded for output.
The NX can work with NovaStar’s desktop console C1 and make the operation of NX on stage more convenient. It is also equipped with brand-new smart management software V-Can from NovaStar to provide richer image mosaic effects.
Thanks to the powerful capabilities of receiving and processing a variety of video signals, the NX can be widely used in various scenarios, such as intermediate and high-end rental, stage control, media centers, big conference sites, exhibition sites and concert control centers.
● Up to 9 inputs, including 1 × dual-link DP 1.1 (can be replaced by HDMI 1.4, DP 1.1 or dual-link DVI), 2 × HDMI 1.3 (can be replaced by DVI/VGA/CVBS), 4 × DVI,1 × DP 1.2 and 1 × 3G-SDI.
● Up to 7 layers supported at the same time. Max. resolution of each layer:3840×2160, 7680×1080 or 1920×4320.
● Customized BKG settings You can load an image file from the control computer or capture an input source image displayed on the screen as the BKG image.
● Shaped layer,Watermark layer and color keying supported
● Layer cloning and Z-order layer sorting supported
● Input source image cropping supported
● Quick mosaic and custom mosaic
● EDID management supported Supports custom EDID and standard EDID.
● 4 × DVI mosaic output, 4 × DVI backup output, 1 × HDMI preview output, and 2× Aux output
● Output resolution settable. The mosaic width of 4 outputs can be up to 15360×600.
● 4 × single-link mosaic output, or 2 × dual-link mosaic output
● Input, PVW, PGM and prompter monitoring supported by MVR connector
● Layer position and size adjustable Layers can be added with borders of custom widths and colors.
● 32 presets A total of 32 user presets can be created and saved as templates which can be used directly and conveniently.
● Intuitive color LCD screen and clear button indicator prompt on the front panel, simplifying system control and operation.
● Genlock synchronization and synchronization with any input source supported, achieving output vertical synchronization.
