P6 P8 P10 Sports Stadium Perimeter LED Screen LED Displays Cabinet

Name: P6 P8 P10 Sports Stadium Perimeter LED Screen LED Displays Cabinet
SKU: 8765440786659
Availability: InStock

Price range: $810.00 through $920.00

SKU: 8765440786659 Category: Uncategorized Tag: LED Display Screen

P10 Sports Stadium Perimeter LED Display Screen

High-performance outdoor stadium perimeter LED display LED video wall with high refresh rate and high brightness, offering stunning visual experience for various sports events such as footballs, basketballs, volleyball, Ice Hockey, etc.
P6 P8 P10 Sports Stadium Perimeter LED Screen LED Displays Cabinet

P6 P8 P10 Sports Stadium Perimeter LED Screen LED Displays Cabinet

ANTI-RUST FUNCTION
The cabinet of unit modules adopts to high-temperature spraying technology, the anti-rust function is greatly improved.
HIGH WATERPROOF GRADE
IP65 High waterproof grade to protect your screen from no matter how heavy rain it is.
SUPER WIDE VIEWING ANGLE

The display features a wide viewing angle of 120° horizontal and 120° in vertical. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.
EASY & QUICK FOR INSTALLATION & MAINTENANCE

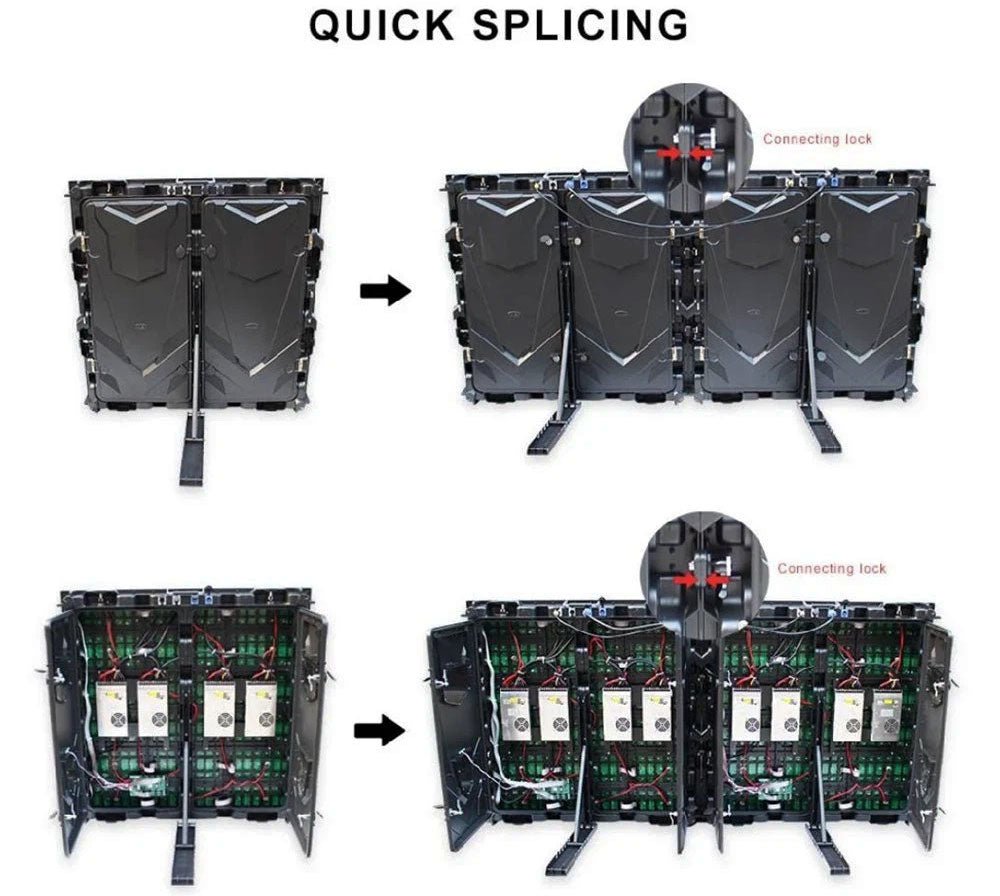

Standardized cast aluminum design with quick locks and connectors for fixed and rental installations. Lightweight, ultra-slim, easy for installation and maintenance.

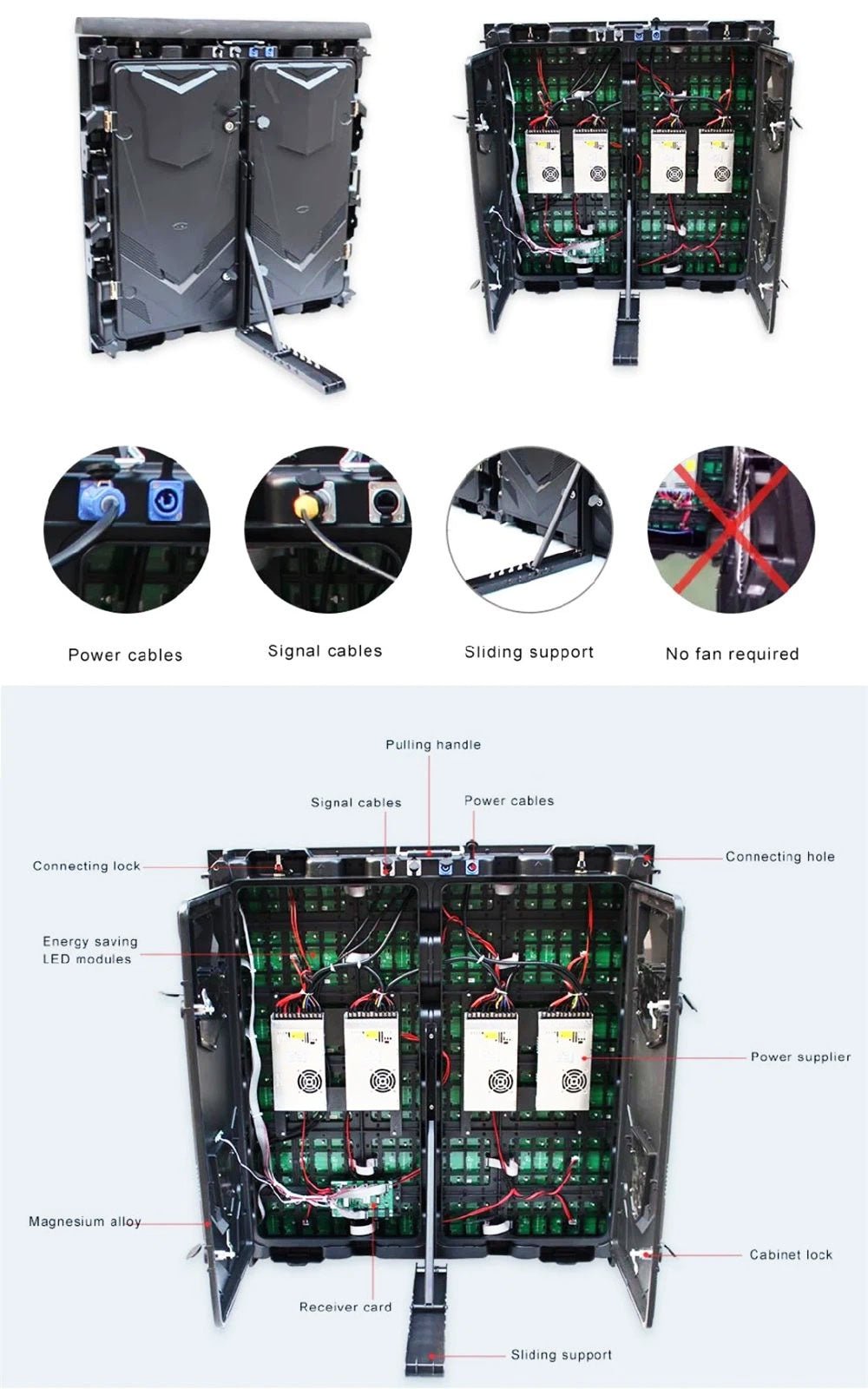

INDEPENDENT POWER CABINET
The power box is independent, and it can be moved. It is convenient to assemble and maintain the power supply and the LED receiving card.
EASY SERVICEABILITY

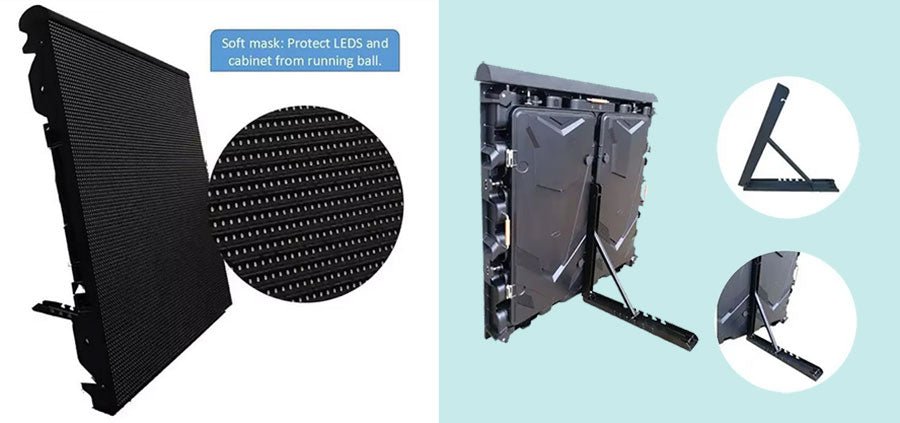

Magnetic modular LED sections for easy, tool-free serviceability from the front or rear of the screen. High-stability, cable-free connections with a detachable modular power supply housing guarantee minimal downtime.

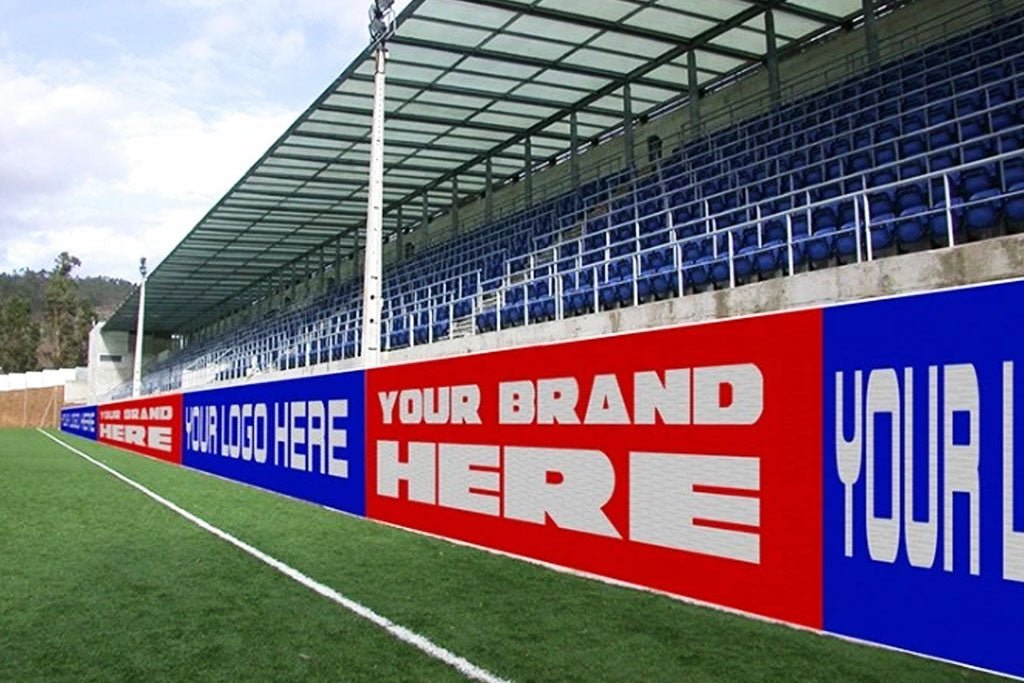

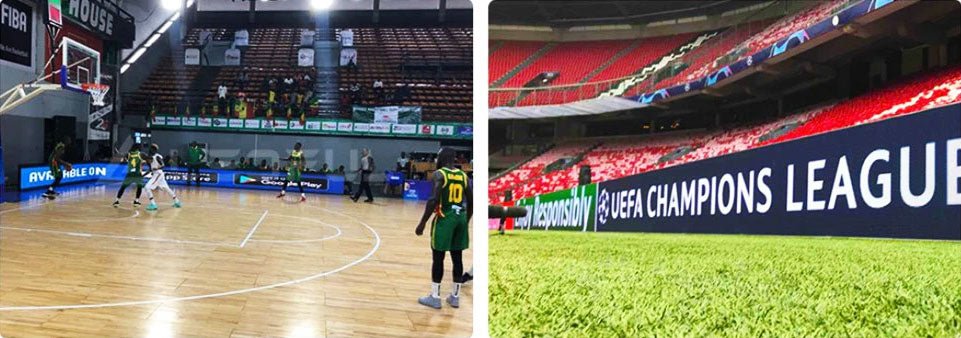

P10 Sports Stadium Perimeter LED Display Screen installations

P10 Sports Stadium Perimeter LED Display Screen Parameters

Advertising LED Display Screen	P6	P8	P10
Pixel Pitch(mm)	6.67	8	10
LED Chips	SMD2727	SMD2727	SMD2727
Pixel density(dots/m2)	22477	15625	10000
Driving Method	1/6 scanning	1/4 scanning	1/2 scanning
Module Size(mm)	320*160	320*160	320*160
Module Resolution	48*24	40*20	32*16
Cabinet Size( W*L mm)	960*960	960*960	960*960
Cabinet Material	Magnesium Alloy	Magnesium Alloy	Magnesium Alloy
Cabinet Weight( Kg/m2 )	35	35	35
Max.Consumption(W/m2)	800	800	800
Ave.Consumption(W/m2)	350	350	350
Brightness( Nits )	≥5500	≥5800	≥6000
Viewing Angle (Vertical / Horizontal)	120° / 120°	120° / 120°	120° / 120°
Refresh Rate	≥1920Hz	≥1920Hz	≥1920Hz
IP Level	IP65	IP65	IP65

Notice before order:
1) Parts included : High-quality steel cabinets, LED modules, power supplies, LED receiving card, power cables and signal cables. It does not include sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
