PTB1304 Mirroring Dongle For TU Series MEE Series

PTB1304 Mirroring Dongle For TU Series MEE Series

PTB1304 (Type-C connection) Mirroring Dongle is used to expand LED multimedia display screens. It can be used to wirelessly project the screens of mobile phones, computers, and Pads in various scenarios. For example, Novastar’s TU series and MEE series with LED TV. Realize conference or teaching interactive functions like LCD media all-in-one machines.
*To use the TB1304 dongle with the TU Series & MEE Series, you will need to connect it using a Type-C to USB adapter (provided with the TB1304)

• Step 1 For the first-time use, or after you change the device name, hotspot name or hotspot password, you must insert the mirroring dongle into the USB port of the LED Playback control processor for pairing.
• Step 2 Insert the paired dongle into the USB port of the PC.

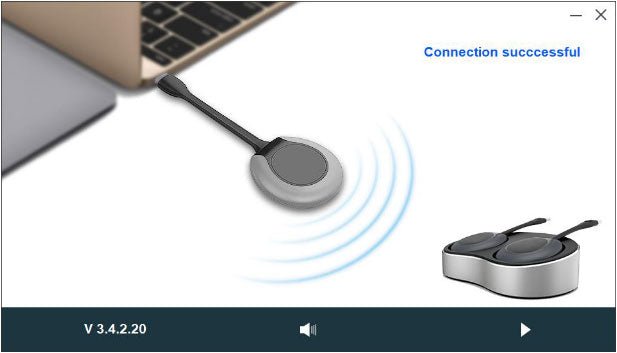

  Figure 4-10 Connection successful
• Step 3 When a pop-up window with the “Connection successful” message appears on the desktop, press the round button on the dongle to start mirroring.

PTB1304 Mirroring Dongle Connection successfu

Note: When using the mirroring dongle to mirror from the macOS PC for the first time, authorization is required. (The following operations use the 10.13.6 version as an example.)
1. On the desktop, open the PTB USB drive.
2. Double click the Client program to run it.
3. Follow the instructions to complete the authorization

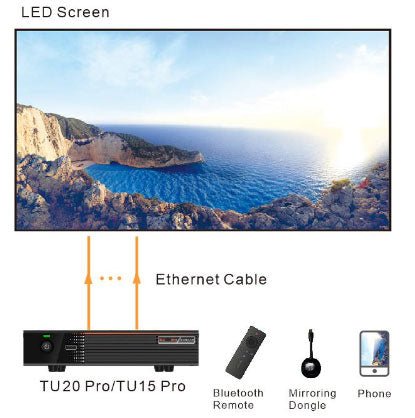

PTB1304 Mirroring Dongle Working diagram
