VDWALL A63 4K Video Processor With HDMI Output LED Video Wall Splicer

VDWALL A63 4K Video Processor With HDMI Output

Faroudja® Real Color® true color image processing, 10+ Bit Faroudja® DCDI de-interlacing,aroudja® TureLife™ image augment;
2 HMDI 2.0 outputs support 3840*2160_60Hz resolution and infinite scaling;
Total 14 video input ports, support mixed SD(Standard Definition), HD(High Definition), UHD（Ultra High Definition) input, includes 8 4K2K_60Hz input ports among which 5 HDMI 2.0 support HDCP 2.2, 3 DP 1.2 inputs, 6 HD+SD input（2 DVI input compatible with VGA input, 2 3G-SDI, 2 CVBS.
Support input signal seamless, Fade in/Fade out switching. Support maximum 4 windows 6 image display, each window support any scaling, open window, overlay display. 4 windows consist of 2 4K window and 2 2K window, 2K window supports PIP/POP function.
Each window provides 4K input signal random cropping and scaling;
4 Windows support any size and position display on LED screen, overlapped window support seamless and Fade in/Fade out switching;
Redundant display or synchronized monitoring available with 2 HDMI 2.0 output;
In switching mode, 2 HDMI 2.0 output can function as 1 main output(PG), 1 Preview output. Signal transition between PG and PV support seamless or Fade in/Fade out switching
In switching mode, provide 3 windows display and 3 windows preview, arbitrary setup of window size, position and overlay order. Support 3 Windows switching simultaneously with seamless or Fade switching;
In mosaic mode，2 HDMI 2.0 can jointly display 1 8K*2K image,single A63 can drive 2 4K controller, realize 8K*2K pixel to pixel display;
Any size and position cropping of 4K image, convenient and flexible irregular screen mosaic, no need complicated mosaic setup;
In mosaic mode, each HDMI 2.0 output support dual image display, 2 outputs total 4 independent images；
Multiple units Cascade by Genlock sync. to realize higher definition synchronized splicing for bigger LED wall. 4 units Cascade extend input to 8K4K@60Hz and output to 16K4K@60Hz;
Auto calculation aided splicing, user just set the total screen size and unit screen size&position, the device will automatically calculate and complete the splicing, intuitive and convenient.
4 windows support image frame function,frame on/off,thickness,color is adjustable;
4 windows support input image quality adjustment, including color,gray level, brightness in independent RGB channel with 256 level.
Support output image hot backup，Out A and out B can output same image , greatly enhance output stability.
9 preset multi-window display modes, support mode duplication and backup. No black screen or blurred screen during mode switching.
Flexible and convenient front panel control，support remote PC control via RS232/USB/LAN.
Designed for small pitches LED screen，widely applied in exhibition,station advertisement, stage performance, restaurant, lecture hall, conference room, school auditorium, church, company promotion etc.

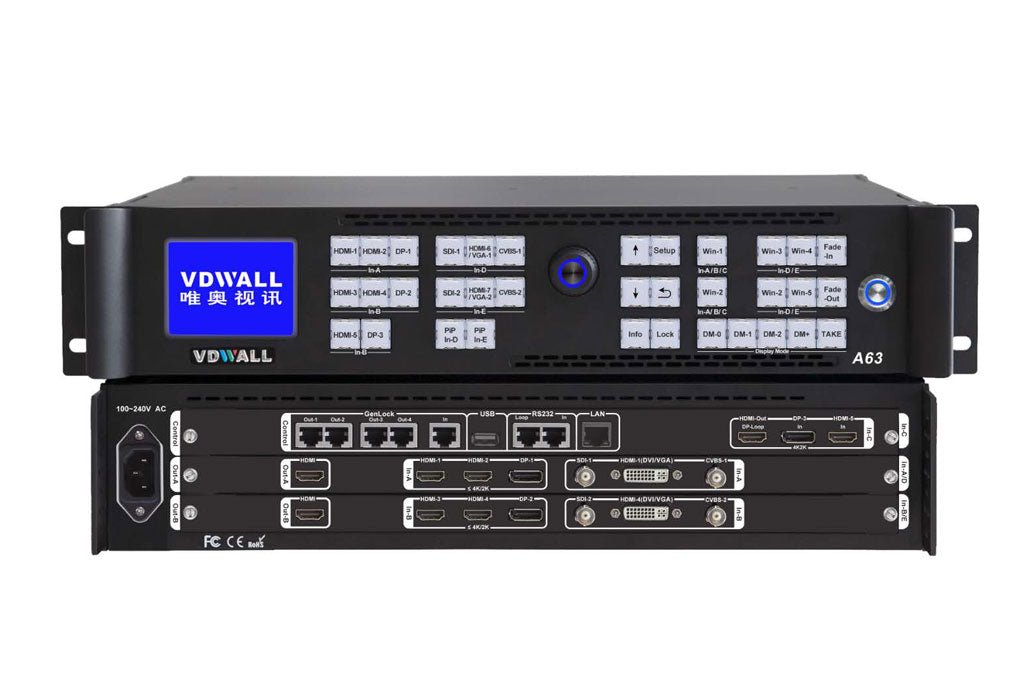

A63 LED Video processor Appearance

A63 LED Video processor Working DiagramSpecification

AC Power Input: 100-240VAC 50/60Hz
Power Consumption: 75W
Ambient Temperature: 0-45℃
Ambient Humidity: 15-85%
Product Dimension: 482×465.5x89mm
Package Dimension: 560x552x178mm
Net Weight: 6.9Kg
Gross Weight: 9.9Kg

Further Information:
A63
VDWALL A63 LED Video Processor Specification
