VDWall LED Display Controller LVP300 LED Video Processor
Original price was: $340.00.$220.00Current price is: $220.00.
Out of stock
LVP 300 LED HD Video Processor
3 Modes of user-defined PIP/POP display.
Five languages:Chinese,English,Russian,Spanish
1.Faroudja® Real Color®True color image processing,，Faroudja® DCDI interlacing video processing，Faroudja® TureLife™video enhancement
2. Three custom dual screen mode, a key switch between modes, arbitrary PIP (PIP / PBP) display.
3.Seamless switch, fade in and fade out switch.
4.Switching mode：One key switch and preselection+Take switch
5.Support menu in five languages: Chinese, English, Russian, Spanish and Korean
6.A variety of control methods: panel buttons, computer software, flexible and convenient operation.
7.A pc of sending cards can be built in.
8. 24/7 applications, high reliability, stability

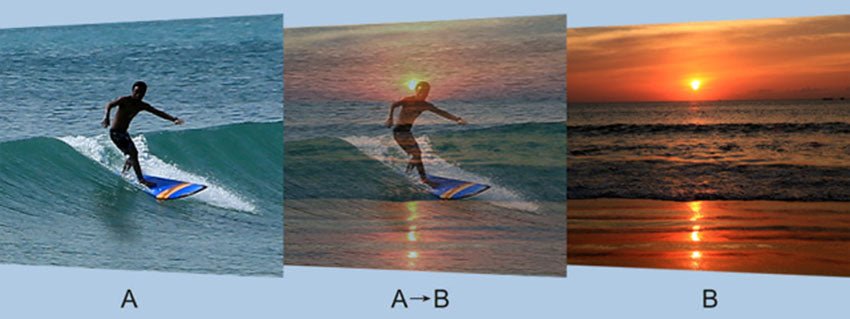

- Feature one:Seamless switch,fade in and fade out switch

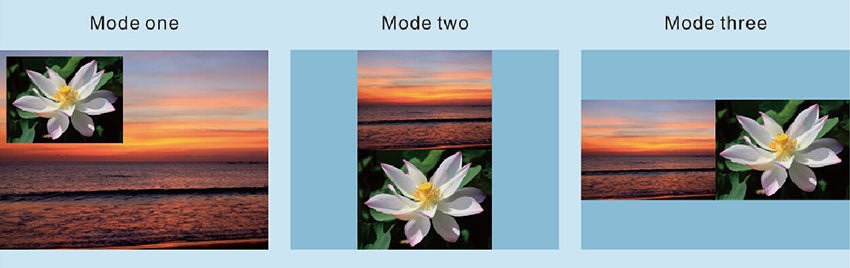

- Feature two:3 modes of user-difined PIP/POP display

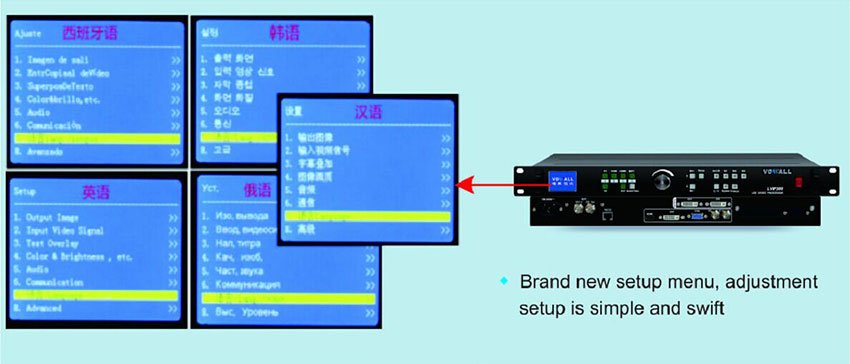

- Feature three:Support memu in five languages,Chinese,English,Russian,Spanish and Korean
Large venue display application such as:Rental Performacne,TV broadcast center,Stage Enterainment&Theater,High-end Meetings&Exhibitions etc.

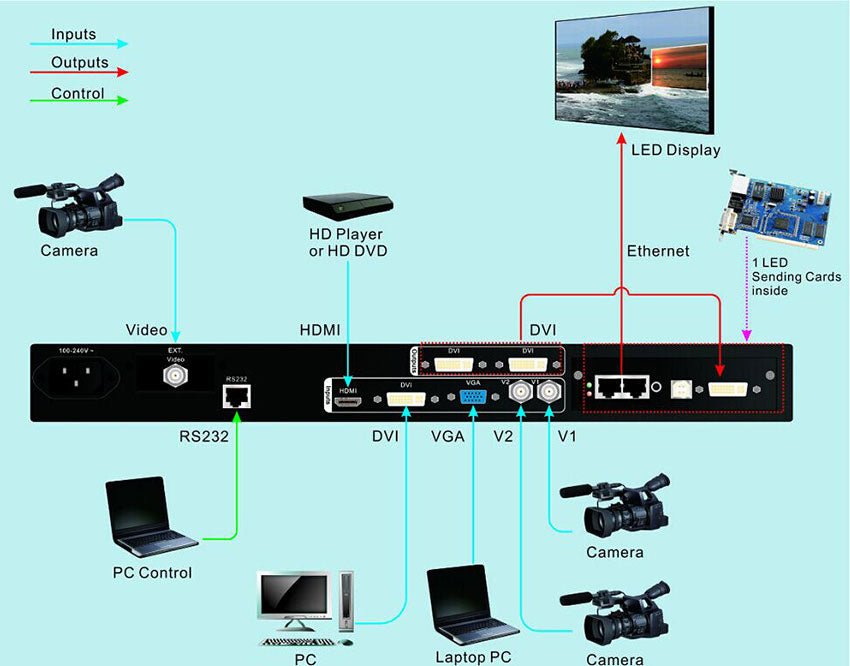

● LVP 300 connection diagram
|
Input signal |
||
|
Type / quantity |
2×Video 1×VGA（VESA） 1×DVI（VESA） 1×HDMI（VESA/CEA-861） 1×EXT.（Extension card: Video/DVI-I/SDI/USB） |
|
|
Video system |
PAL/NTSC |
|
|
Composite video amplitude impedance |
1V（p_p）/ 75Ω |
|
|
VGA format |
PC（VESA） |
≤2048×1152 _60Hz |
|
VGA Amplitude impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|
|
DVI format |
PC（VESA） |
≤1920x1200_60Hz |
|
HDMI format（HDCP1.3） |
PC（VESA） |
≤2304x1152_60Hz |
|
HDMI1.3（CEA -861） |
≤1920x1080p_60Hz |
|
|
input terminal |
Video： BNC/ 75Ω HDMI：HDMI terminal A class |
|
|
output signal |
||
|
Type / quantity |
2×DVI |
|
|
DVI resolution ratio |
1024×768_60Hz/75Hz 1280×1024_60Hz/75Hz 1366×768_60Hz 1440×900_60Hz 1536×1536_60Hz 1600×1200_60Hz 1920×1080p_50Hz/60Hz |
|
|
Output terminal |
DVI：24+1 DVI_D |
|
|
others |
||
|
Control terminal |
RS232 |
|
|
input voltage |
100-240VAC 50/60Hz |
|
|
Maximum power consumption |
≤25W |
|
|
ambient temperature |
0-45 ℃ |
|
|
ambient humidity |
15-85% |
|
|
Size (packing) |
mm（H）×mm（W）×mm（L） |
|
|
weight |
gross weight： Kg, net weight： Kg |
|
|
Standard accessories |
1.5M power line×1 1.5M DVI connecting line×1 0.5m DVI connecting line×1 1.5m Serial port transfer line×1 |
|
|
optional add-on |
Sending card×1 |
|
300/LVP300 Authenticate
| Weight | 5800 kg |
|---|
