VDWall LVP909 Series LED Display Controller LVP909 909F LED Video Processor
$960.00 – $1,120.00
LVP909 Series LED HD Video Processor
4 windows in any size and overlay display,Wireless Wi-Fi control+ Wi-Fi video feedback monitor.
1.Seamless switching,fade in fade out swtiching between any inputs. Multiple mixed analog and digital inputs including 2*Video、1*VGA、1*HDMI、1*DVI、1*SDI/HD-SDI/3G-SDI；
2.“TAKE” fast switching.

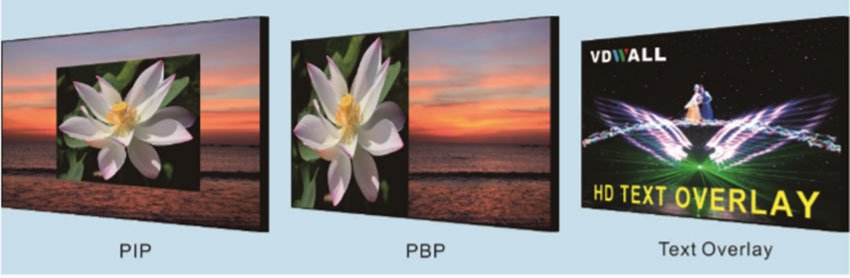

3.Four sets of preset PIP display mode: seamless or fade in fade out between modes switching.

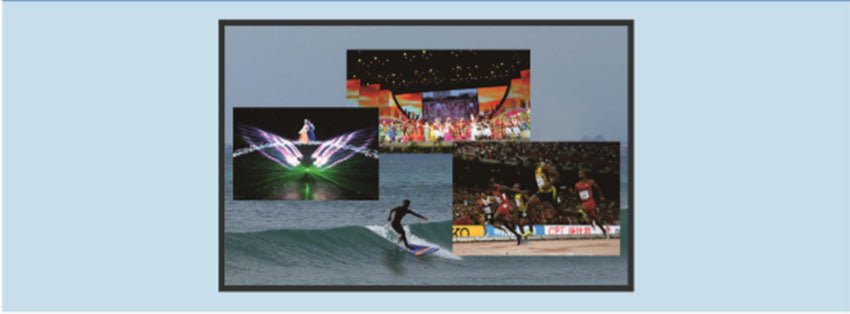

4.windows in any size and overlay display. Display 4 input signals picture at the same time.Each picture size, position and overlay order are adjustable.
5.Preview monitor+sync monitor
6.Wi-Fi wirless control+ Wi-Fi video feedback monitor: Wi-Fi video feedback function is realized through installing APP software in handheld device to monitor input signals. Meanwhile,wireless Wi-Fi controls the device to switch signals and call modes.
LVP909 series product model description
*LVP909 without Wi-Fi module,LVP909F with Wi-Fi module.
- Feature one:4 windows in any size and overlay display
- Feature two:Wirelwss WI-FI control +WI-FI video feedback monitor

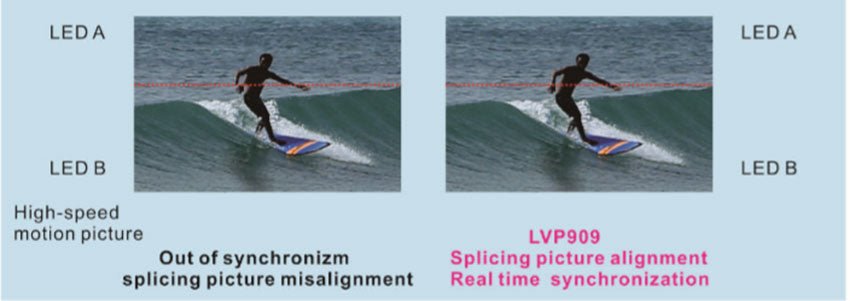

- Feature three:Frame synchronous technology,no misalignment in high-speed motion pictures
For indoor and outdoor ultra big,abnormal LED screen splicing display;rental,staging,theatre performance LED screen and other fixed installations.
● LVP909 connection diagram
|
Input signals |
||
|
type/nums |
2×Video 1×DVI（VESA/ CEA-861） |
|
|
Video system |
PAL/NTSC |
|
|
composite video scope/ Impedance |
1V（p_p）/ 75Ω |
|
|
VGA format |
PC（VESA standard） |
≤1920×1200_60Hz |
|
VGAscope/ Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|
|
DVI format |
PC（VESA standard） |
≤1920×1200_60Hz |
|
HDMI-1.3（CEA-861） |
≤1920×1080p_60Hz |
|
|
SDI format |
SMPTE 259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz 576i_50Hz 720p、1080i、1080p |
|
Input ports |
Video：P4 of VGA port HDMI：A type of HDMI port DVI：24+1 DVI_D |
|
|
Output signals |
||
|
type/nums |
1×VGA 4×DVI |
|
|
Preview output |
1×VGA（DVI OUT4） |
|
|
DVI resolution |
1024×768_60Hz1280×1024_60Hz 1920×1080p_60Hz1920×1200_60Hz |
|
|
Output port |
DVI：24+1 DVI_I |
|
|
others |
||
|
Control ports |
Front panel /RS232/USB/LAN/WIFI |
|
|
Input voltage |
100-240VAC 50/60Hz |
|
|
power |
≤80W |
|
|
temperature |
0-45℃ |
|
|
humidity |
15-85% |
|
|
size |
483 (L) x274(W) x66.6 (H)mm |
|
|
Weight |
G.W.：5.5 Kg, N.W.：4.2Kg |
|
